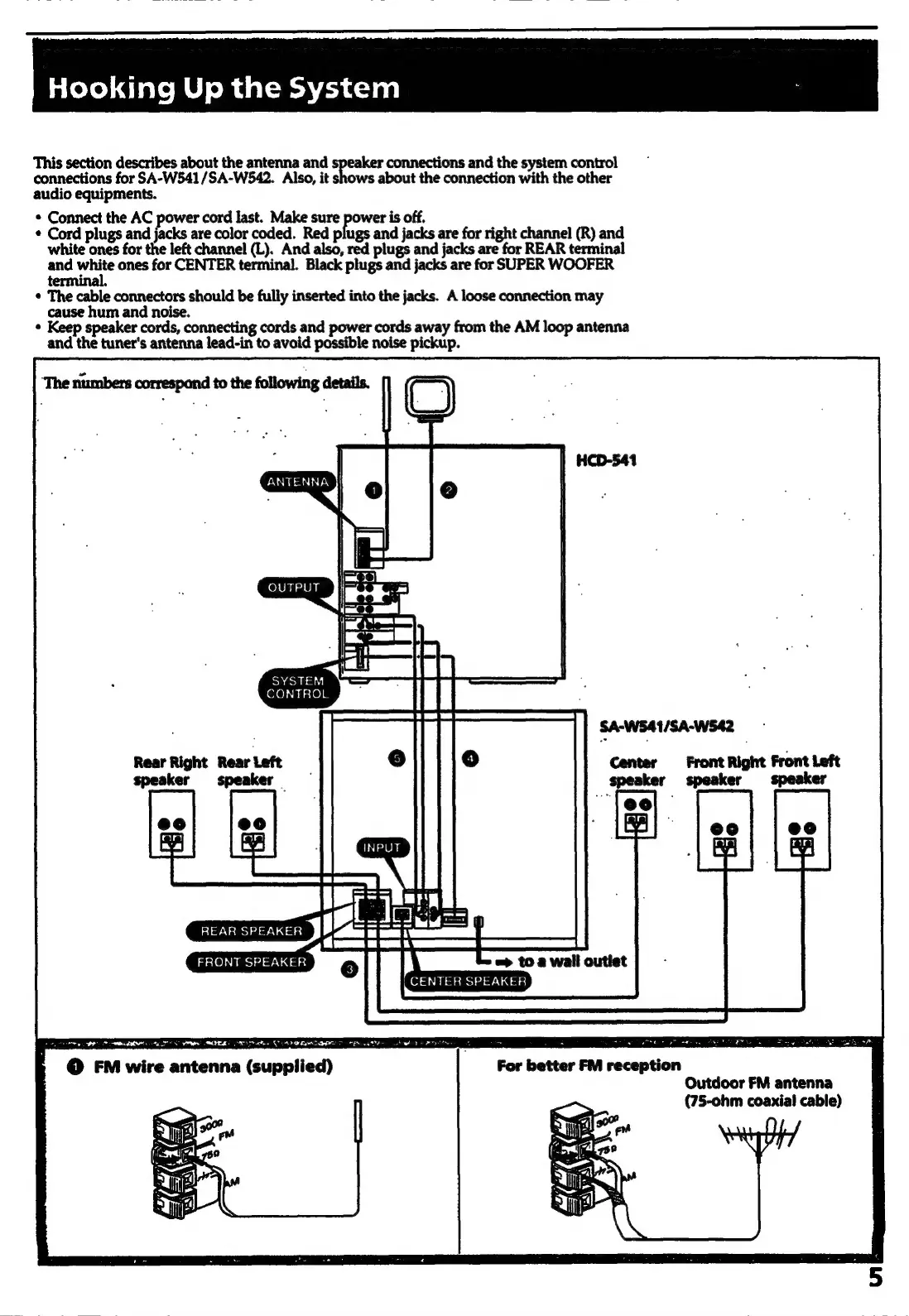

Hooking Up the System
This section describes about the antenna and eae connections and the system control
connections for SA-W541/SA-W542. Also, it shows about the connection with the other
audio equipments.
* Connect the AC power cord last. Make sure power is off.
¢ Cord plugs and jacks are color coded. Red plugs and jacks are for right channel (R) and
white ones for the left channel (L). And also, red plugs and jacks are for REAR terminal
and white ones for CENTER terminal. Black plugs and jacks are for SUPER WOOFER
* The cable connectors should be fully inserted into the jacks. A loose connection may
cause hum and noise.
* Keep speaker cords, connecting cords and er cords away from the AM loop antenna
and the tuner’s antenna Tead-ine to avoid possible noise cep. “a
‘The ruumbers correspond to the following details.
ANTENNA c
I\——
i
=
C98)
OUTPUT a
SYSTEM
ioe) BasielG
SA-W541/SA-W542
Rear Right Rear Left Center Front Right Front Left
speaker speaker speaker speaker speaker
REAR SPEAKER
FRONT SPEAKER => to a wall outlet
CENTER SPEAKER
For better FM reception
Outdoor FM antenna
(75-ohm coaxial cable)
