7
HCD-AZ2D/AZ5D

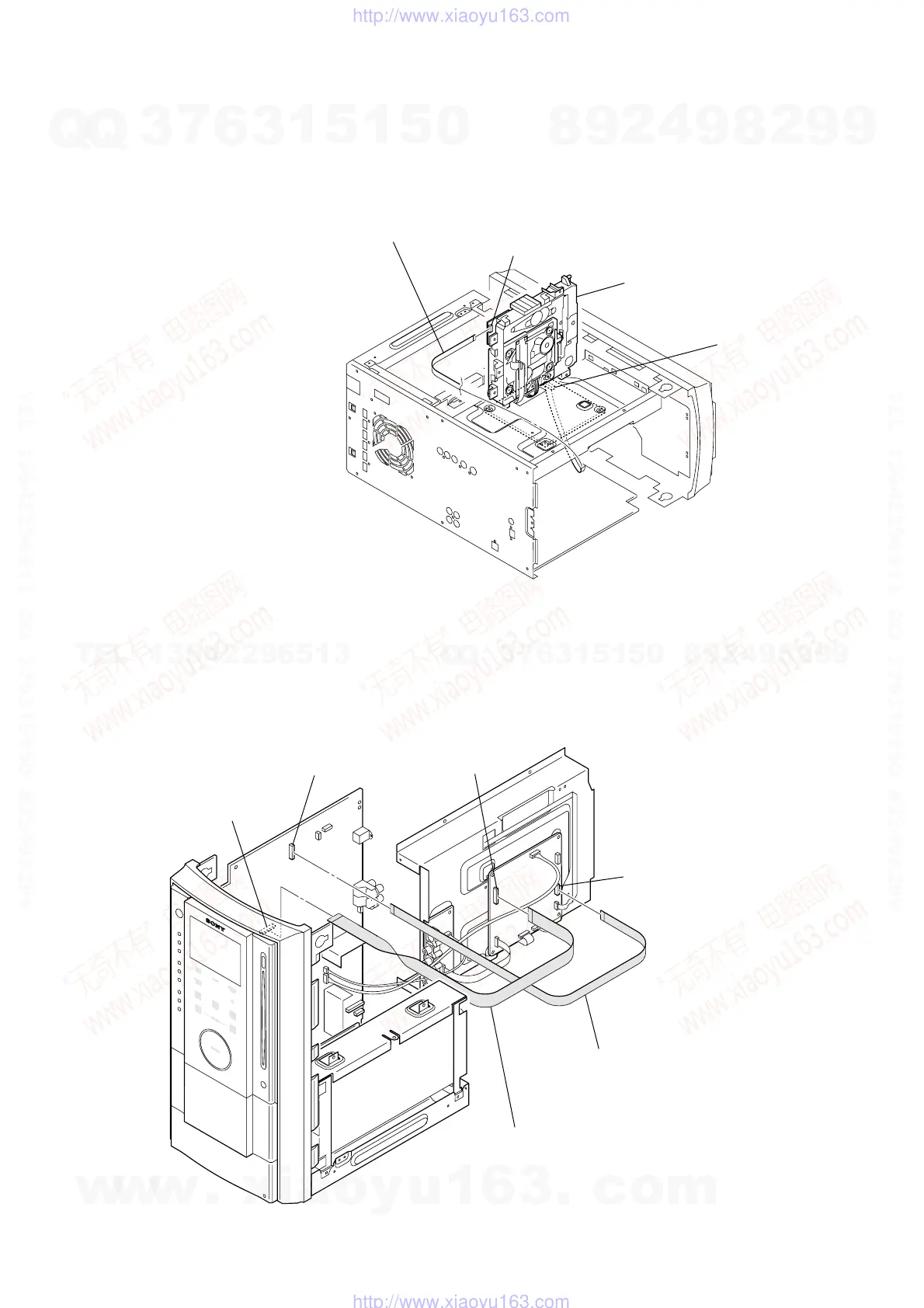

DVD MECHANISM DECK (CDM86-DVBU101) SERVICE POSITION
• In checking the DVD mechanism deck (CDM86-DVBU101), prepare extension jig (Part No. J-2501-241-A: 1.00mm pitch, 7 cores,
length 300mm).
DMB10 boar
(CN202)
DVD mechanism deck
(CDM86-DVBU101)
MS-214 board
(CN001)
Connect extension jig (J-2501-241-A) to the
MS-214 board (CN001) and DVB10 board (CN202).
DMB10 BOARD SERVICE POSITION
• In checking the DMB10 board, prepare two extension jigs (Part No. J-2501-102-A: 1.00mm pitch, 13 cores, length 300mm and Part No.
J-2501-244-A: 1.00mm pitch, 21 cores, length 300mm).
DMB10 board
(CN106)
DMB10 board
(CN302)
MAIN board
(CN203)
MAIN board
(CN201)
Connect extension jig (J-2501-102-A) to the
MAIN board (CN203) and DMB10 board (CN106).
Connect extension jig (J-2501-244-A) to the
MAIN board (CN201) and DMB10 board (CN302).
