Sony HCD-BX3 - Base Unit and Other Board Removal

11

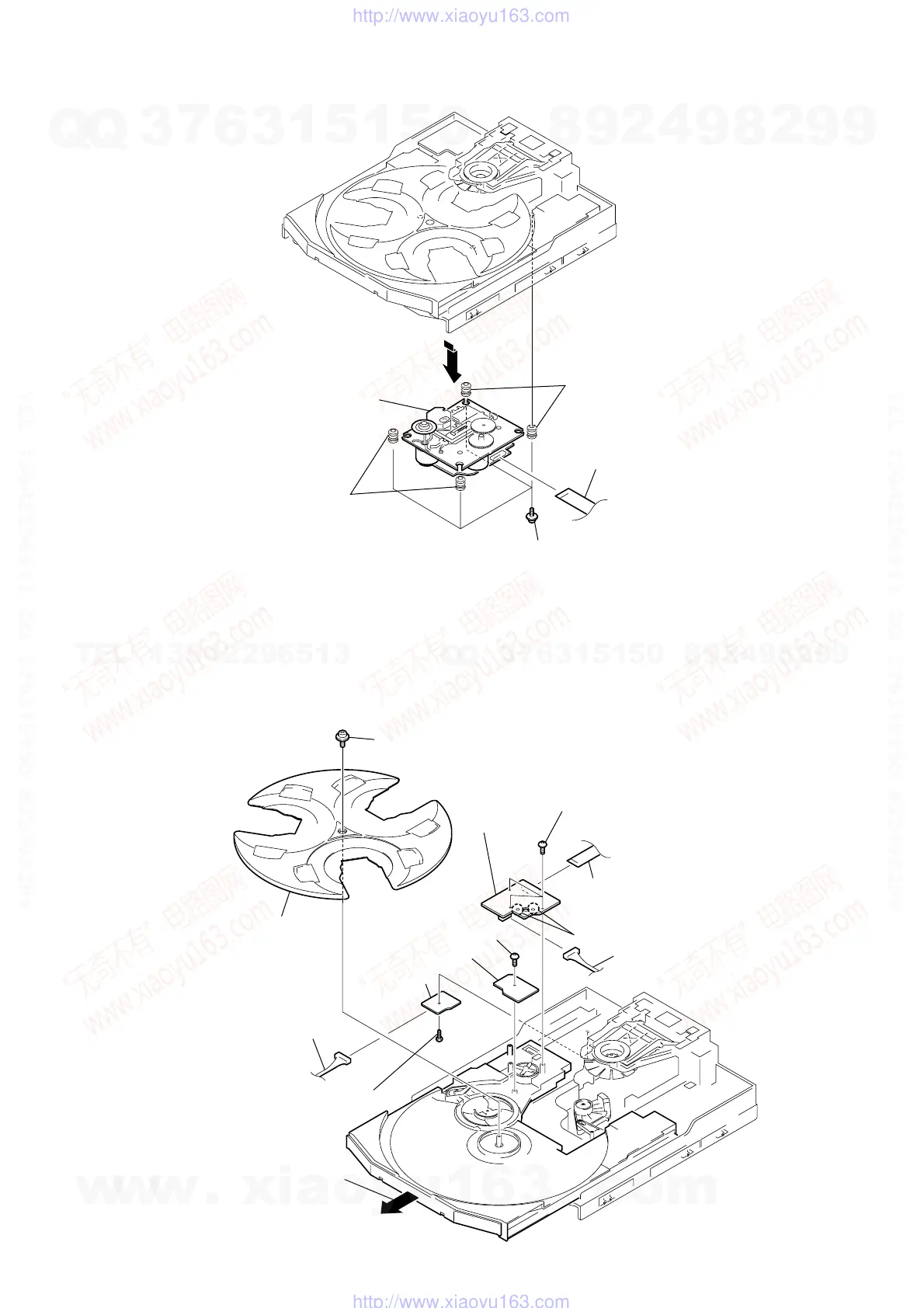

Base unit
3
2 Four screws (+PTPWH 2.6)
4 Two insulators
5 Two insulators
1 Flat type wire (CN101
)
9 Pull-out the disc tray.
5 Three screws (+BVTP 2.6 × 8)
q; Screw (+PTPWH 2.6 × 8)
qa Tray
1 Screw (+BVTP 2.6 × 8)
qs Screw (+BVTP 2.6 × 8)
4 Flat type wire (CN721)
7 Motor board
qd Address sensor board
2 Driver board
3 Connector (CN701)
8 Connector (CN722)
6 Remove the two solderings of motor.
3-9. BASE UNIT
3-10. DRIVER BOARD, MOTOR BOARD AND ADDRESS SENSOR BOARD
