SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
AUS : Australian model
G : German model
AED : North European model
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
TW : Taiwan model
KR : Korea model
45
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
MX : Mexican model
AR : Argentina model
CD mechanism deck
#3
#3
#3
#3
#3
#5
#5
4
3
5
1
1
2
2
6
Front panel section
Chassis section
#3
#3
#3
#3
#3
M961
9
8
7
10
*1
*2
*1: US, CND, AEP, AED, CIS, UK, G models
*2: E, EA, AR, AUS, KR, MX, MY, SP, TH, TW model
11
12

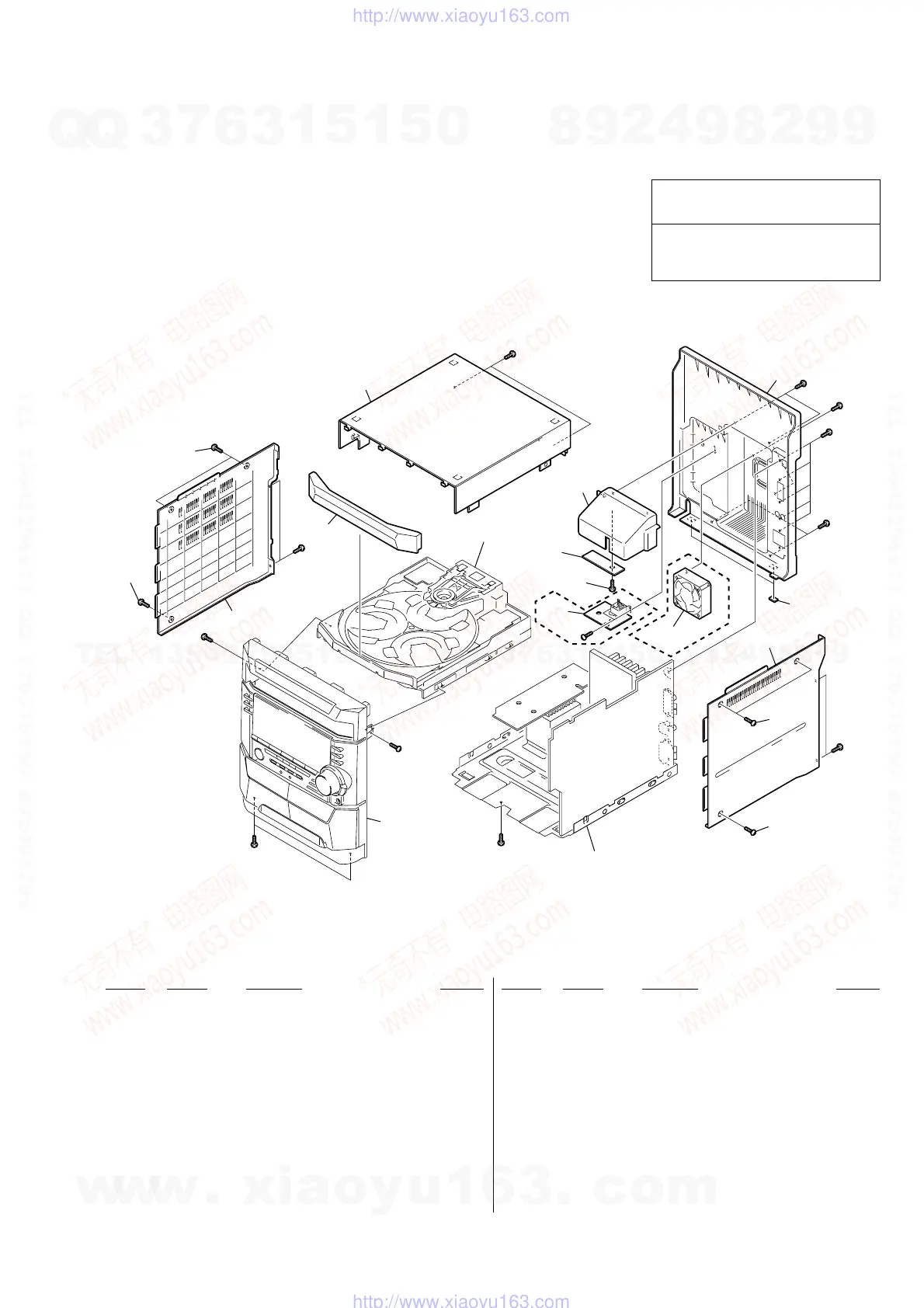

8-1. MAIN SECTION
1 3-363-099-01 SCREW(CASE 3 TP2)
2 3-363-099-41 SCREW(CASE 3 TP2)
3 4-224-549-01 CASE(SIDE-L)
4 X-4952-392-1 PANELASSY, LOADING (CIS)
4 X-4952-393-1 PANELASSY, LOADING (AED,AEP,CND,G,UK,US)
4 X-4952-395-1 PANELASSY, LOADING
(AR,AUS,E,EA,KR,MX,MY,SP,TH,TW)
5 4-224-548-01 CASE(SIDE-R)
6 4-224-550-01 UPPER CASE(TOP) (EXCEPT US,CND)
6 4-224-550-21 UPPER CASE(TOP) (CND,US)
7 A-4428-044-A SUB-TRANS BOARD (AED,AEP,CIS,G,UK)
7 A-4428-058-A SUB-TRANS BOARD (CND,US)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
8 4-224-547-01 PANEL, BACK (AED,AEP,G,UK)
8 4-224-547-11 PANEL, BACK (AR,E,EA,MY,SP,TW)
8 4-224-547-21 PANEL, BACK (CND,US)
8 4-224-547-41 PANEL, BACK (AUS,KR,MX,TH)
8 4-226-245-01 PANEL, BACK (CIS)
9 4-225-252-01 CUSHION (FOOT)
10 4-227-984-01 COVER (DUCT)(EXCEPT CIS)
10 4-227-984-11 COVER (DUCT)(CIS)
11 4-951-620-01 SCREW +BVTP (2.6X8)
12 1-678-153-11 SENSOR BOARD
(AR,AUS,E,EA,KR,MX,MY,SP,TH,TW)
M961 1-698-792-11 FAN, DC (AR,AUS,E,EA,KR,MX,MY,SP,TH,TW)
