Sony HCD-BX3 - Printed Wiring Board AMP Section

HCD-BX3/DX3
3030
12
A
B
C
D
E
F
3456789
(Page 38)
(Page 26)
(Page 26)

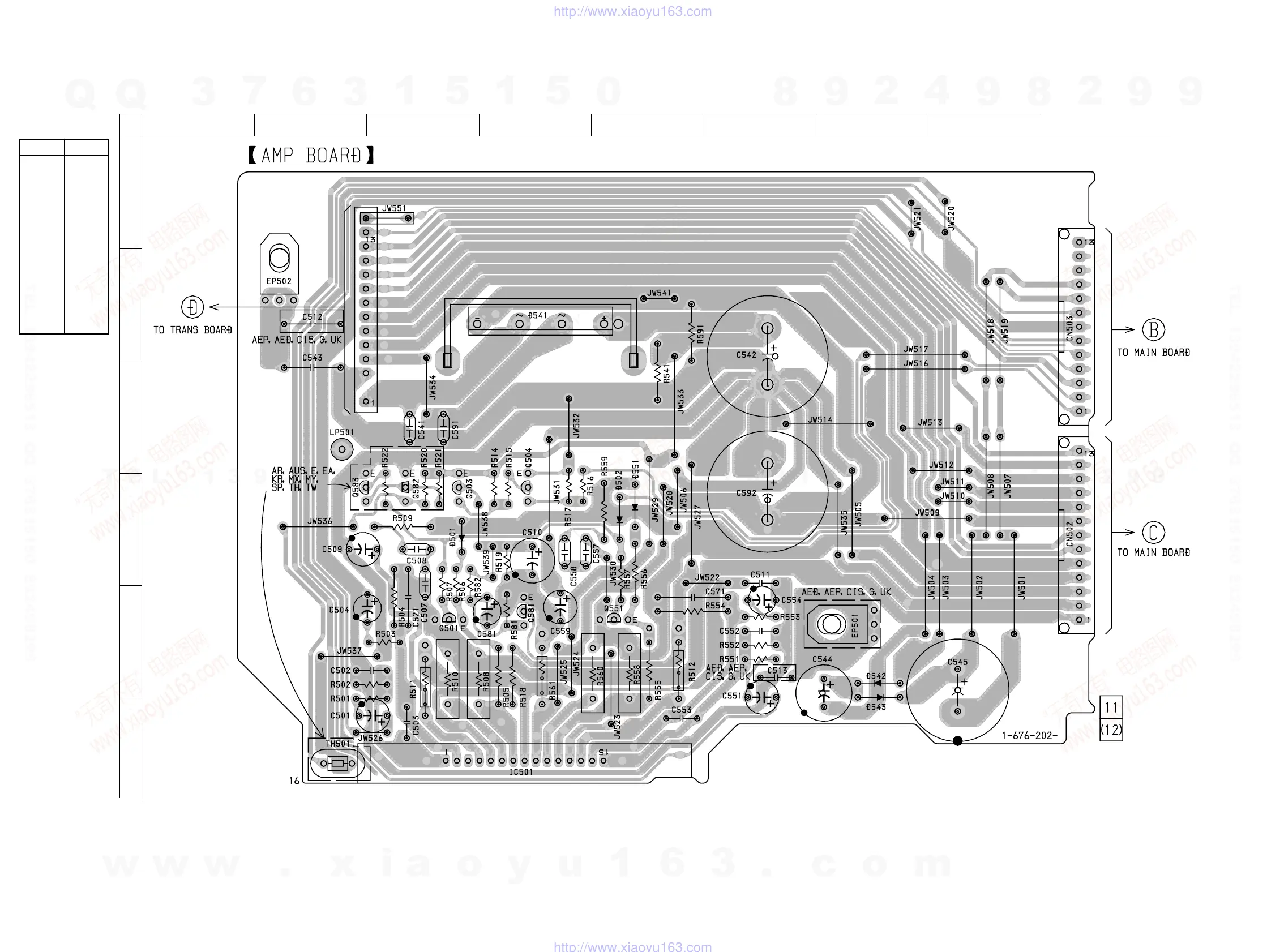

7-9. PRINTED WIRING BOARD AMP SECTION
• See page page 21 for Circuit Boards Location.
Ref. No. Location
D501 D-3
D502 D-5
D541 B-4
D542 E-7
D543 E-7
D551 D-5
IC501 F-3
Q501 E-3
Q503 D-3
Q504 D-4
Q551 E-5
Q581 E-4
Q582 D-3
Q583 D-2
• Semiconductor
Location
