Sony HCD-BX3 - Printed Wiring Board Panel Section

HCD-BX3/DX3
3232

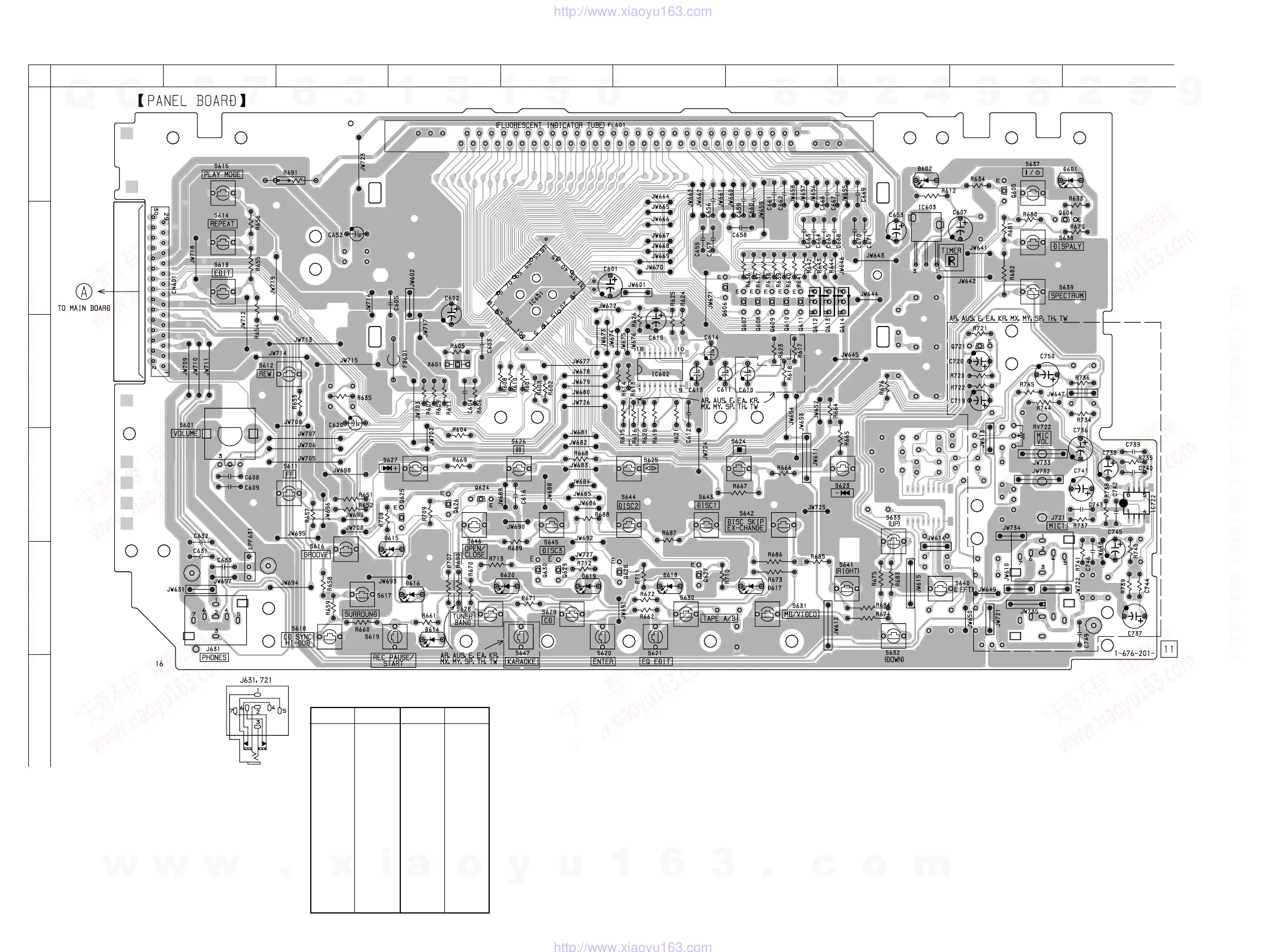

7-11. PRINTED WIRING BOARD PANEL SECTION
• See page page 21 for Circuit Boards Location.
12
A
B
C
D
E
F
345678910
(Page 26)
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D601 B-10
D602 A-8
D614 E-4
D615 E-4
D616 E-4
D617 E-7
D618 E-6
D619 E-5
D620 E-5
IC601 B-5
IC602 C-6
IC603 B-8
IC722 D-10
Q604 B-10
Q605 A-9
Q606 B-6
Q607 B-7
Q608 B-7
Q609 B-7
Q610 B-7
Q611 B-7
Q612 B-7
Q613 B-7
Q614 B-8
Q624 D-4
Q625 D-4
Q626 D-4
Q627 E-6
Q628 E-6
Q629 E-5
Q630 E-5
Q721 C-9
