Sony HCD-BX3 - Printed Wiring Board Trans Section

HCD-BX3/DX3
3838

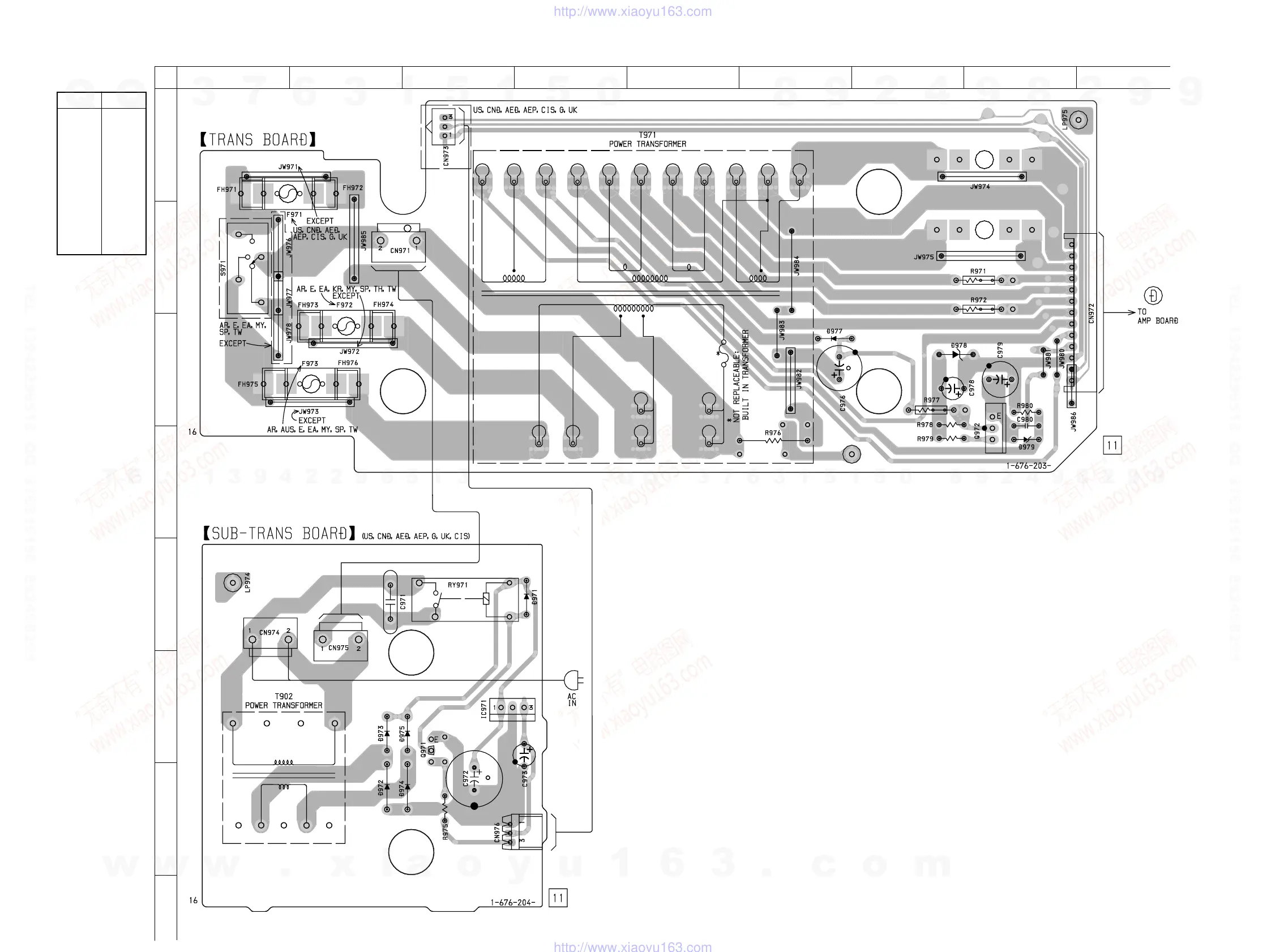

7-17. PRINTED WIRING BOARD TRANS SECTION
• See page page 21 for Circuit Boards Location.
12
A
B
C
D
E
F
G
H
3456789
(Page 30)
Ref. No. Location
D971 E-4
D972 G-2
D973 F-2
D974 G-3
D975 F-3
D977 C-6
D978 C-8
D979 C-8
IC971 F-3
Q971 F-3
Q972 D-8
• Semiconductor
Location
