Sony HCD-CPX22 - BD Board

13
HCD-CPX22/NXM3

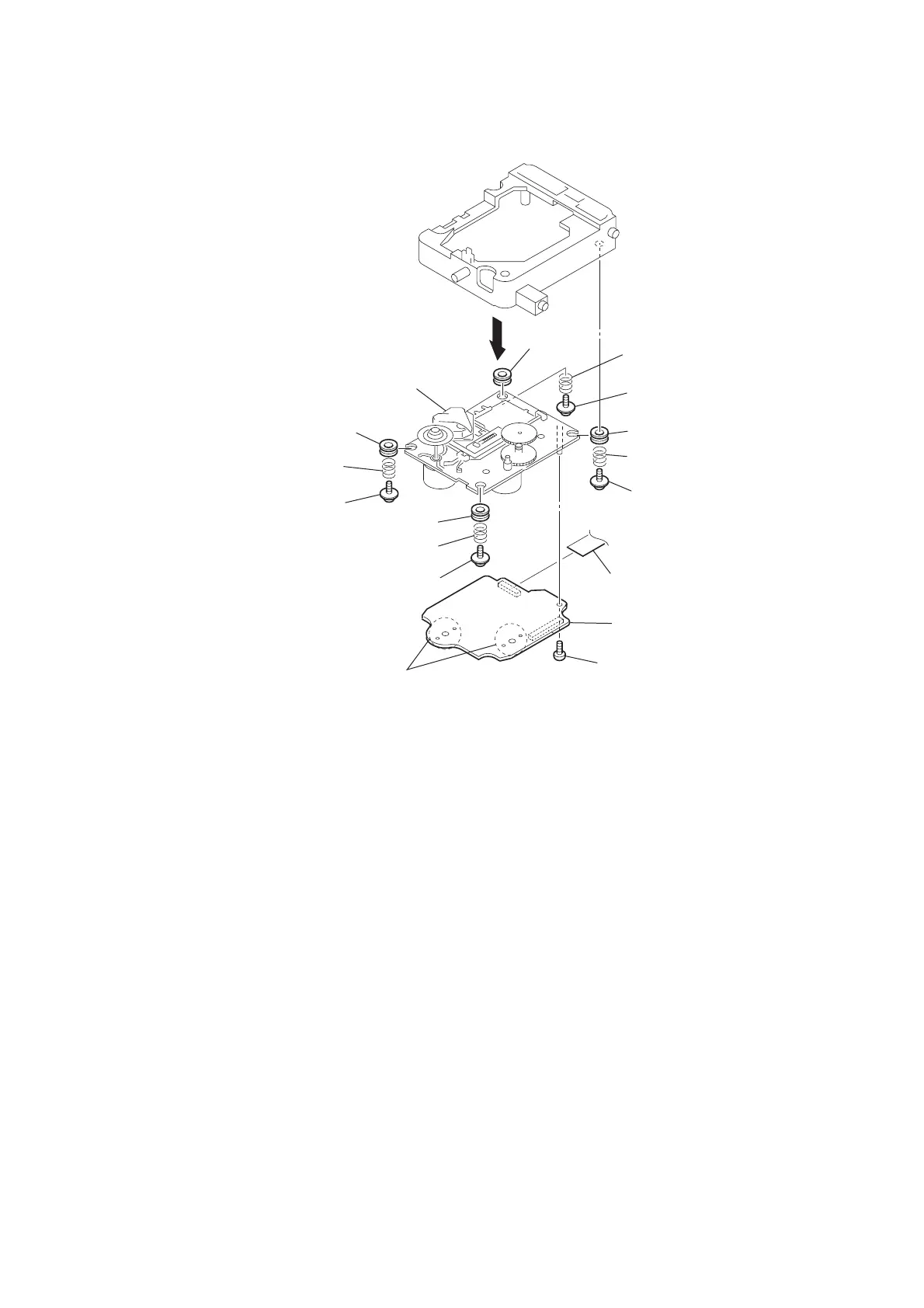

3-12. BD BOARD
1 floating scre
w
(+PTPWH2.6
)
2 coil spring
(insulator)
3 insulator
4 floating screw
(+PTPWH2.6)
5 coil spring
(insulator)
6 insulator
7 floating screw
(+PTPWH2.6)
8 coil spring
(insulator)
9 insulator
0 floating screw
(+PTPWH2.6)
qa coil spring
(insulator)
qs insulator
qd
qf optical pick-up
(KSM-215DCP/C2NP)
qj screw
(+BVTP 2.6X8)
qg CN101
qh Remove the four solderings of motor.
qk BD board
