Sony HCD-CPX22 - Chassis Section

49
HCD-CPX22/NXM3

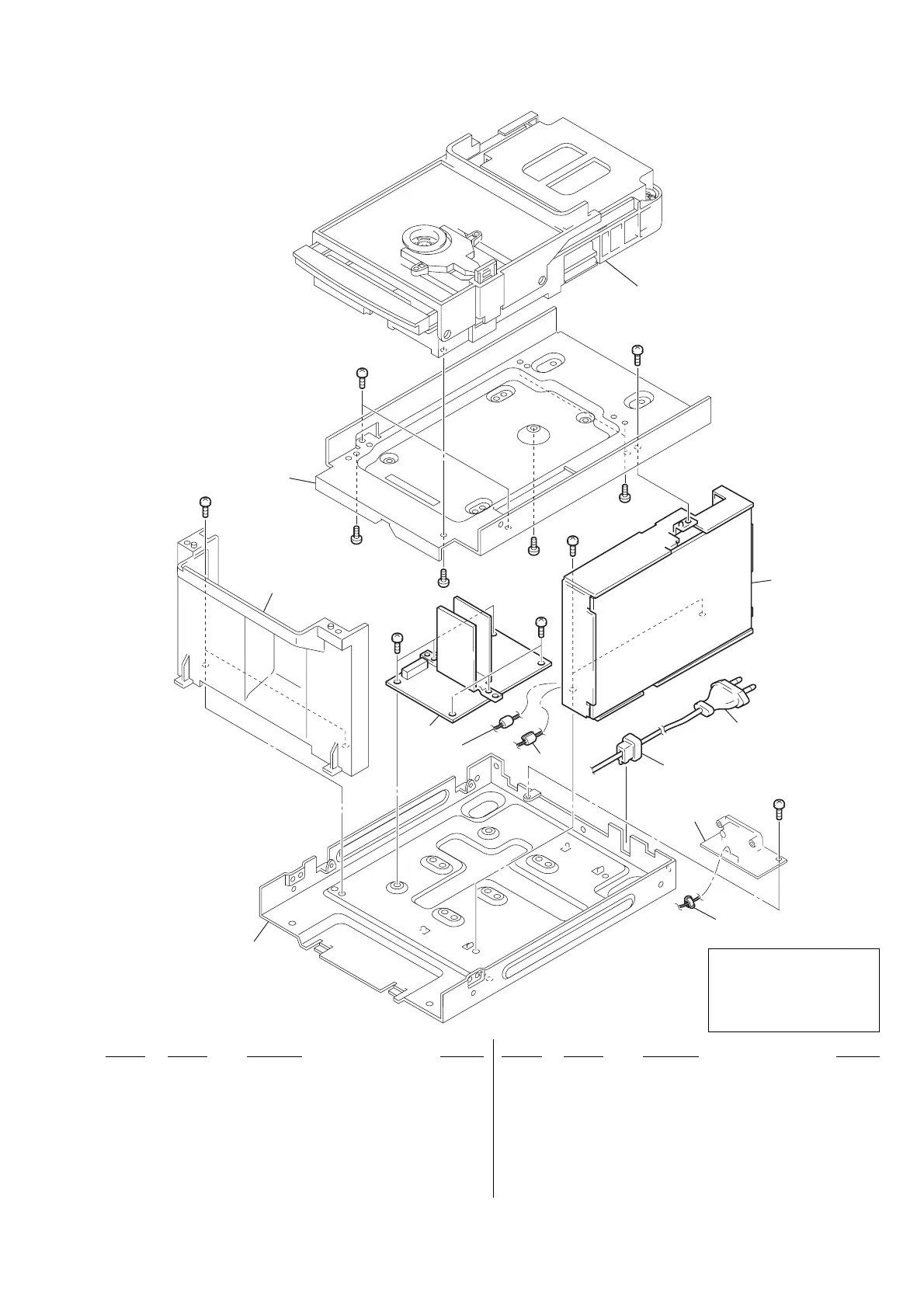

8-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
CDM81B-F1BD81A
not supplied
101
102
103
104
106
105
107
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
101 A-4750-863-A S-MASTER (A) BOARD, COMPLETE
0102 1-468-813-11 REGULATOR, SWITCHING (AEP, UK, RU)
0102 1-468-819-11 REGULATOR, SWITCHING (US)
0102 1-468-821-11 REGULATOR, SWITCHING (E3, E51, EA)
0103 1-775-786-21 CORD, POWER (UK, EA)
0103 1-777-071-53 CORD, POWER (AEP, E51, RU)
0103 1-783-820-11 CORD, POWER (US)
0103 1-827-226-11 CORD, POWER (E3)
* 104 3-703-244-00 BUSHING (2104), CORD (EXCEPT E3)
104 3-703-571-11 BUSHING (S) (4516), CORD (E3)
105 1-500-497-11 FILTER, CLAMP (FERRITE CORE)
106 1-469-854-11 CORE, FERRITE (US)
107 1-500-386-11 FILTER, CLAMP (FERRITE CORE) (US)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
