Sony HCD-CPX22 - CD Mechanism Deck Section-1 (CDM81 B-F1 BD81 A)

50
HCD-CPX22/NXM3

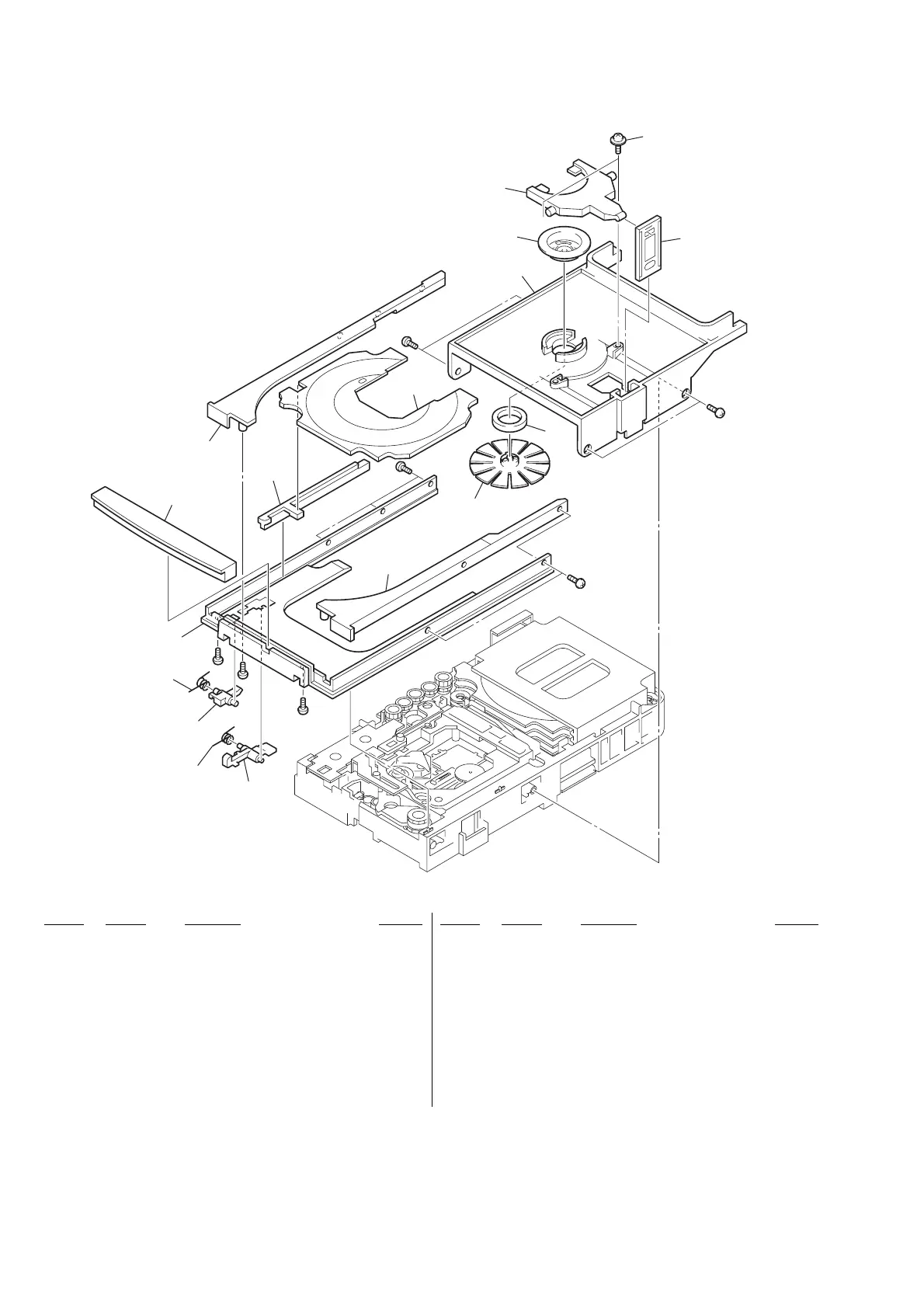

8-4. CD MECHANISM DECK SECTION-1
(CDM81B-F1BD81A)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#5
#3
#3
#5
#5
#3
#3
153
154
151
152
155
156
157
158
159
160
161
162
163
164
165
166
167
151 4-251-849-01 LEVER (SW2)
152 4-251-991-01 SPRING (SW2), TORSION
153 4-251-860-01 LEVER (LOCK)
154 4-251-867-01 SPRING (LOCK), TORSION
155 4-251-828-01 TRAY (MAIN)
156 4-252-533-11 PANEL, LOADING
157 4-251-857-01 COVER (R)
158 4-251-830-01 SLIDER (ST)
159 4-251-858-01 COVER (L)
160 4-251-829-01 TRAY (SUB)
161 X-4955-707-2 PULLEY (A5) ASSY, CHUCKING (CPX22)
161 X-4955-707-3 PULLEY (A5) ASSY, CHUCKING (NXM3)
162 1-471-035-11 MAGNET ASSY
163 4-251-821-01 BRACKET (TOP)
164 4-231-189-01 PULLEY (B), CHUCKING
165 4-251-824-01 LIFTER
166 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
167 4-251-822-01 JOINT (LIFTER)
#3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#5 7-685-102-19 SCREW +P 2X4 NON-SLIT TYPE 2
