Sony HCD-CPX22 - Exploded Views; Main Section

47
HCD-CPX22/NXM3
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 8
EXPLODED VIEWS

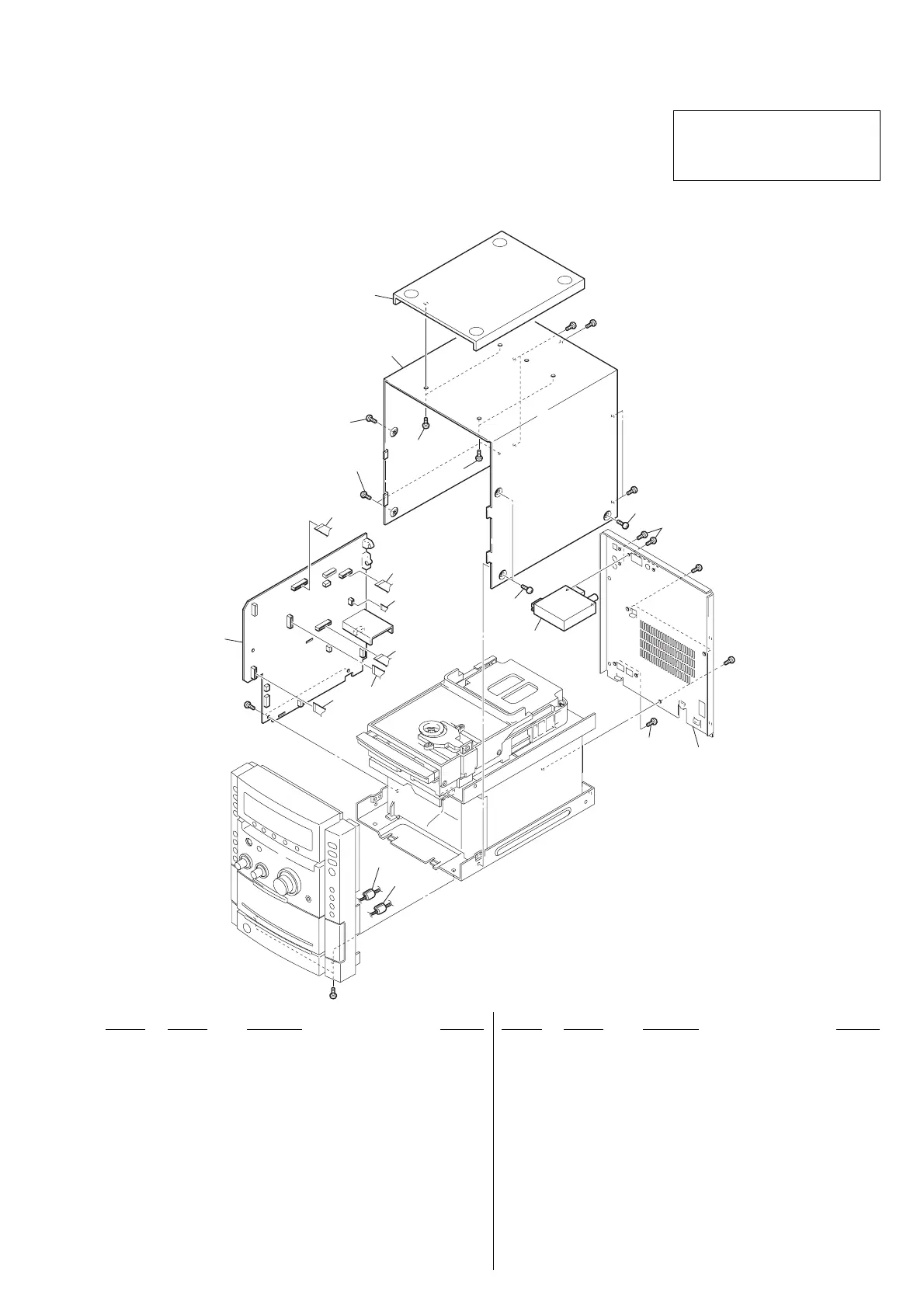

8-1. MAIN SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
E3 : 240V AC Area in E model
E51 : Chilean and Peruvian model
EA : Saudi Arabia model
RU : Russian model
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
#1
#1
#1
#1
#1
not supplie
d
1
3
4
14
14
5
12
6
13
7
7
7
7
8
8
9
10
11
8
8
#1
#1
1 A-1052-039-A MAIN BOARD, COMPLETE (EA)
1 A-4750-856-A MAIN BOARD, COMPLETE (AEP, UK)
1 A-4750-931-A MAIN BOARD, COMPLETE (RU)
1 A-4750-933-A MAIN BOARD, COMPLETE (E3)
1 A-4750-935-A MAIN BOARD, COMPLETE (E51)
1 A-4750-937-A MAIN BOARD, COMPLETE (US)
3 1-769-984-11 WIRE (FLAT TYPE) (13 CORE)
4 1-765-332-11 WIRE (FLAT TYPE) (15 CORE)
5 1-769-869-11 WIRE (FLAT TYPE) (5 CORE)
6 1-769-939-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP, UK)
6 1-773-003-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
7 3-363-099-22 SCREW (CASE 3 TP2)
8 4-951-620-01 SCREW (2.6X8), +BVTP
9 4-252-541-51 CASE
10 4-252-538-01 PANEL, TOP
11 1-693-603-31 TUNER (FM/AM) (E3, E51, EA)
11 1-693-604-11 TUNER (FM/AM) (AEP, UK)
11 1-693-623-31 TUNER (FM/AM) (US)
11 1-693-654-11 TUNER (FM/AM) (RU)
12 1-773-119-11 WIRE (FLAT TYPE) (19CORE)
13 1-827-488-11 WIRE (FLAT TYPE) (27CORE)
14 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT (B)
