HCD-DJ2i
18

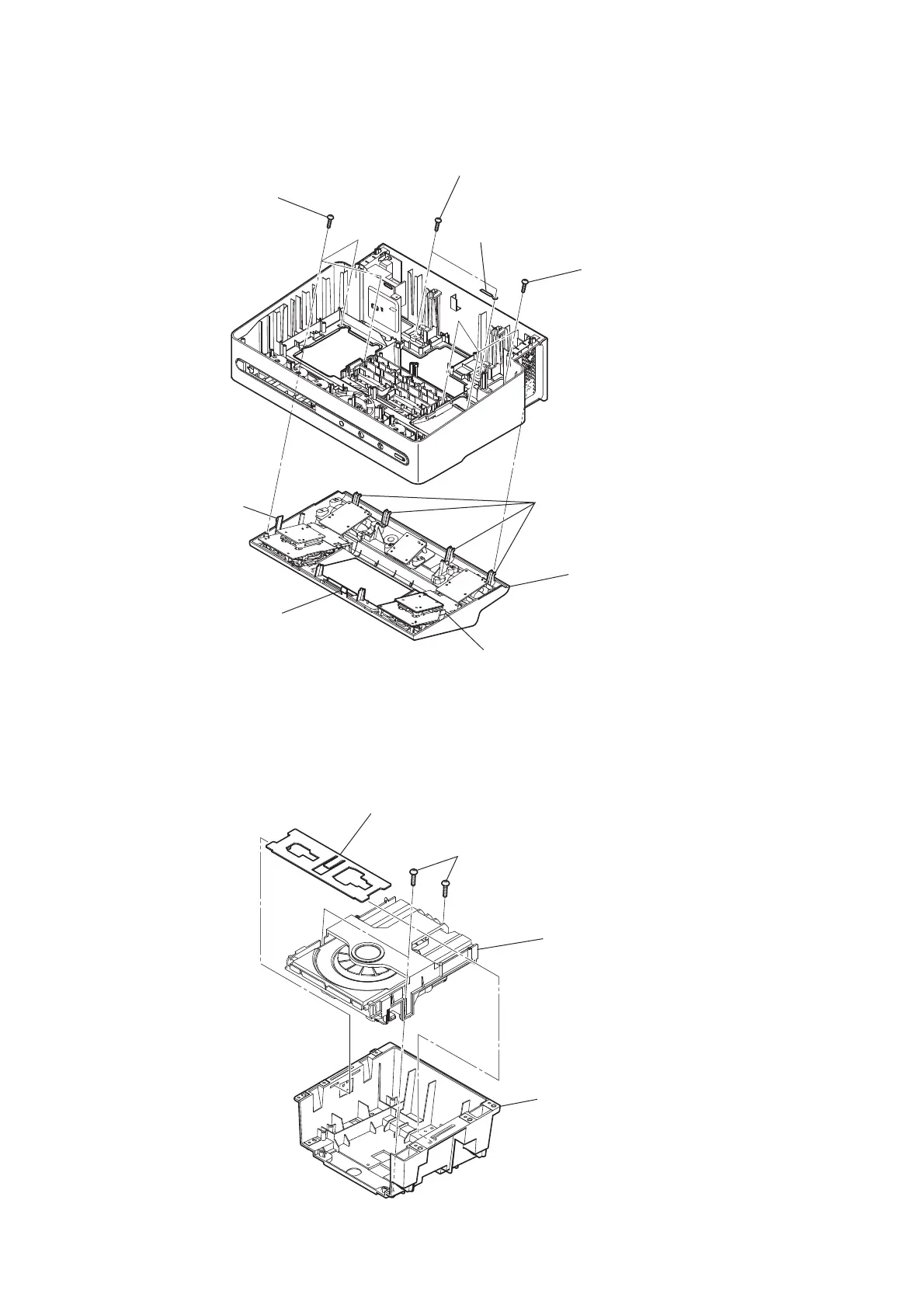

3-12. CD MECHANISM BLOCK
3-11. ESC TOP ASSY
three screws
(+BVTP 2.6 (3CR))
two screws
(+BVTP 2.6 (3CR))
three screws
(+BVTP 2.6 (3CR))
wire stopper
claw
claw
claw
four hooks
ESC top assy
three screws
(+BVTP 2.6 (3CR))
CDM FFC DRESSING board
CD mechanism block
bracket (CDM)
