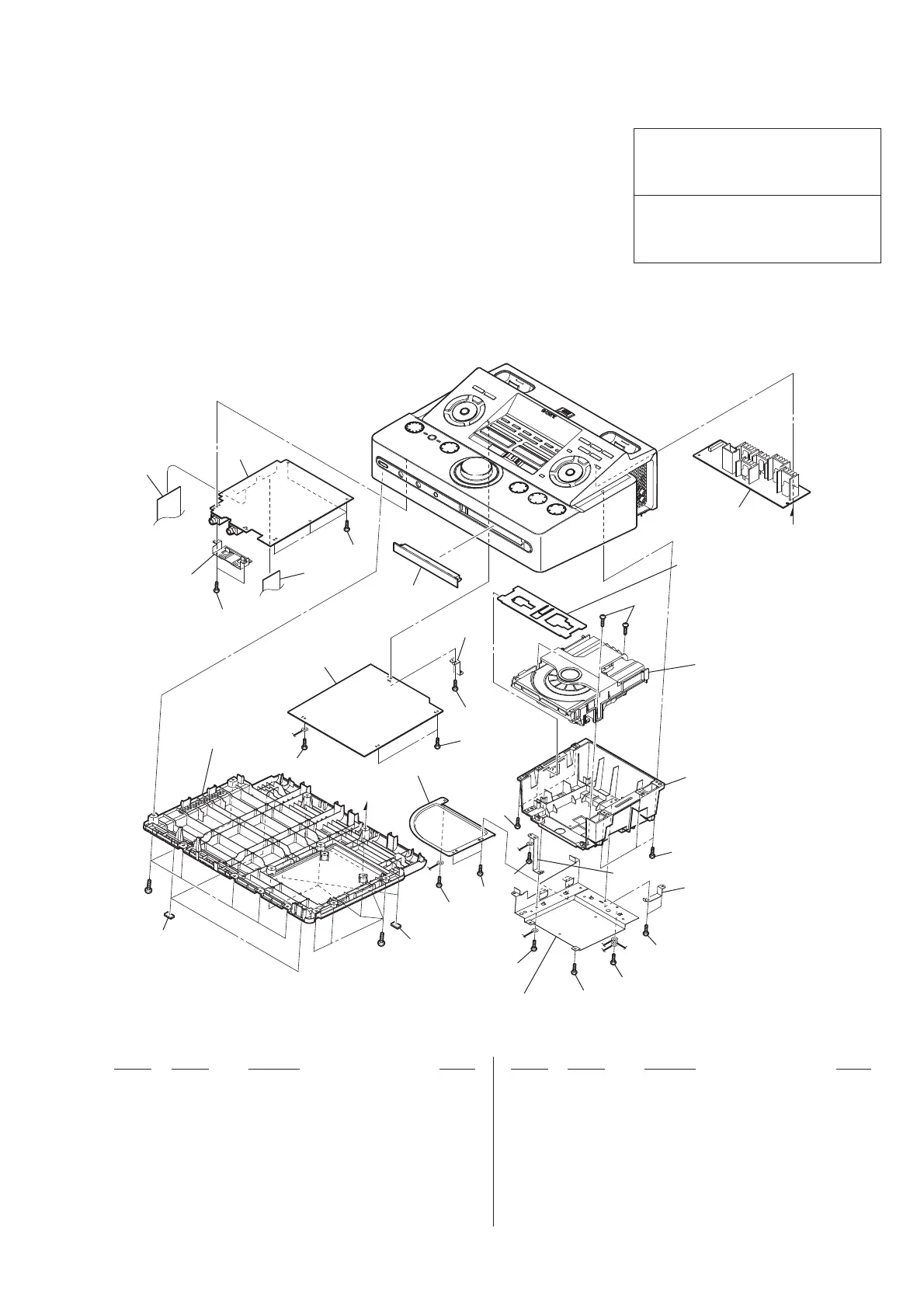

Sony HCD-DJ2i - EXPLODED VIEWS; PANEL BOTTOM SECTION

67
HCD-DJ2i
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
4
8
5
6
7
3
3
not supplied
(CDM FFC DRESSING board)
not supplied
CDM77B-K6BD93
not supplied
not supplied
not supplied
#1
#1
not supplied
not supplied
not supplied
not supplied
"
"
SECTION 7
EXPLODED VIEWS
1 A-1536-492-A REGULATOR BOARD, COMPLETE
2 3-087-053-01 +BVTP 2.6 (3CR)
3 4-977-358-01 CUSHION
4 A-1536-432-A MAIN AUDIO BOARD, COMPLETE (AEP,UK)
4 A-1536-434-A MAIN AUDIO BOARD, COMPLETE (US,CND,MX)
4 A-1536-435-A MAIN AUDIO BOARD, COMPLETE (AUS)
4 A-1538-970-A MAIN AUDIO BOARD, COMPLETE (E3,EA)
5 1-832-594-21 CABLE, FLEXIBLE FLAT (17 CORE)
6 1-832-634-21 CABLE, FLEXIBLE FLAT (25 CORE)
7 A-1536-401-A MAIN DIGITAL BOARD, COMPLETE (MX)
7 A-1536-423-A MAIN DIGITAL BOARD, COMPLETE (AEP)
7 A-1536-424-A MAIN DIGITAL BOARD, COMPLETE (UK)
7 A-1536-425-A MAIN DIGITAL BOARD, COMPLETE (US,CND)
7 A-1536-426-A MAIN DIGITAL BOARD, COMPLETE (AUS)
7 A-1538-968-A MAIN DIGITAL BOARD, COMPLETE (E3)
7 A-1701-219-A MAIN DIGITAL BOARD, COMPLETE (EA)
8 3-300-669-01 PANEL (LOADING)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-1. PANEL BOTTOM SECTION
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Accessories are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
E3 : 240V AC area in E model
AUS : Australian model
MX : Mexican model
EA : Saudi Arabia model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
Ver. 1.3
