HCD-DJ2i
5
SECTION 1
SERVICE NOTES

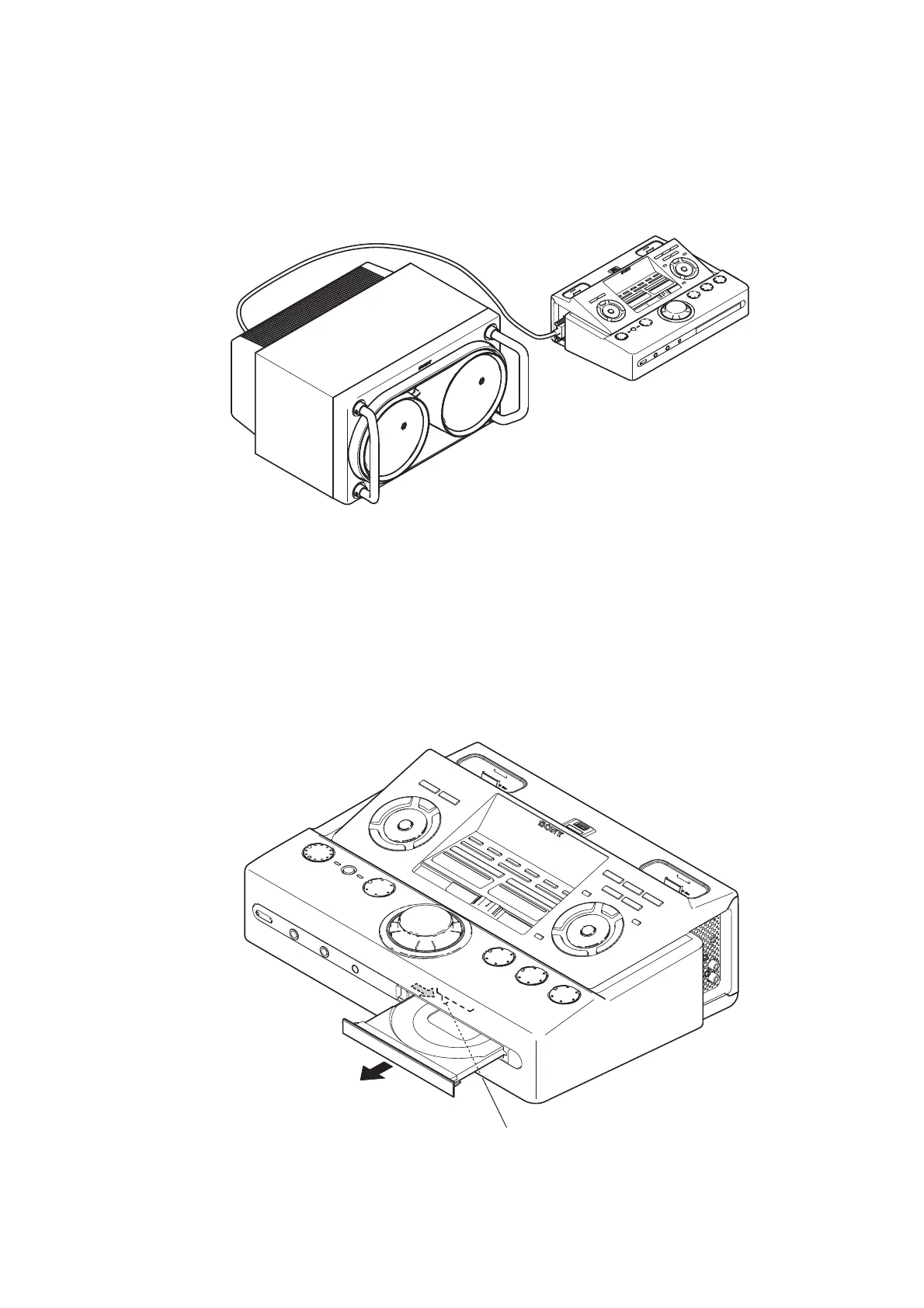

Note for Repairing of the HCD-DJ2i
The HCD-DJ2i has no power supply and cannot be operated singly. Be sure to cannot the set to the SA-WG2i when performing service
and inspection.
SA-WG2i
HCD-DJ2i
Method of Loading the CD Tray in the Event of Failure and with the Power off
To load the CD tray in the event of failure and with the power off, move the chuck cam in the direction of the arrow with draw the tray as
illustrated below.
Move the chuck cam
in the direction of the arrow.
To Next Page
