Sony HCD-DP700 - Front Amp Section Diagrams (AEP;US;CND); Printed Wiring Board

HCD-DP700
3636

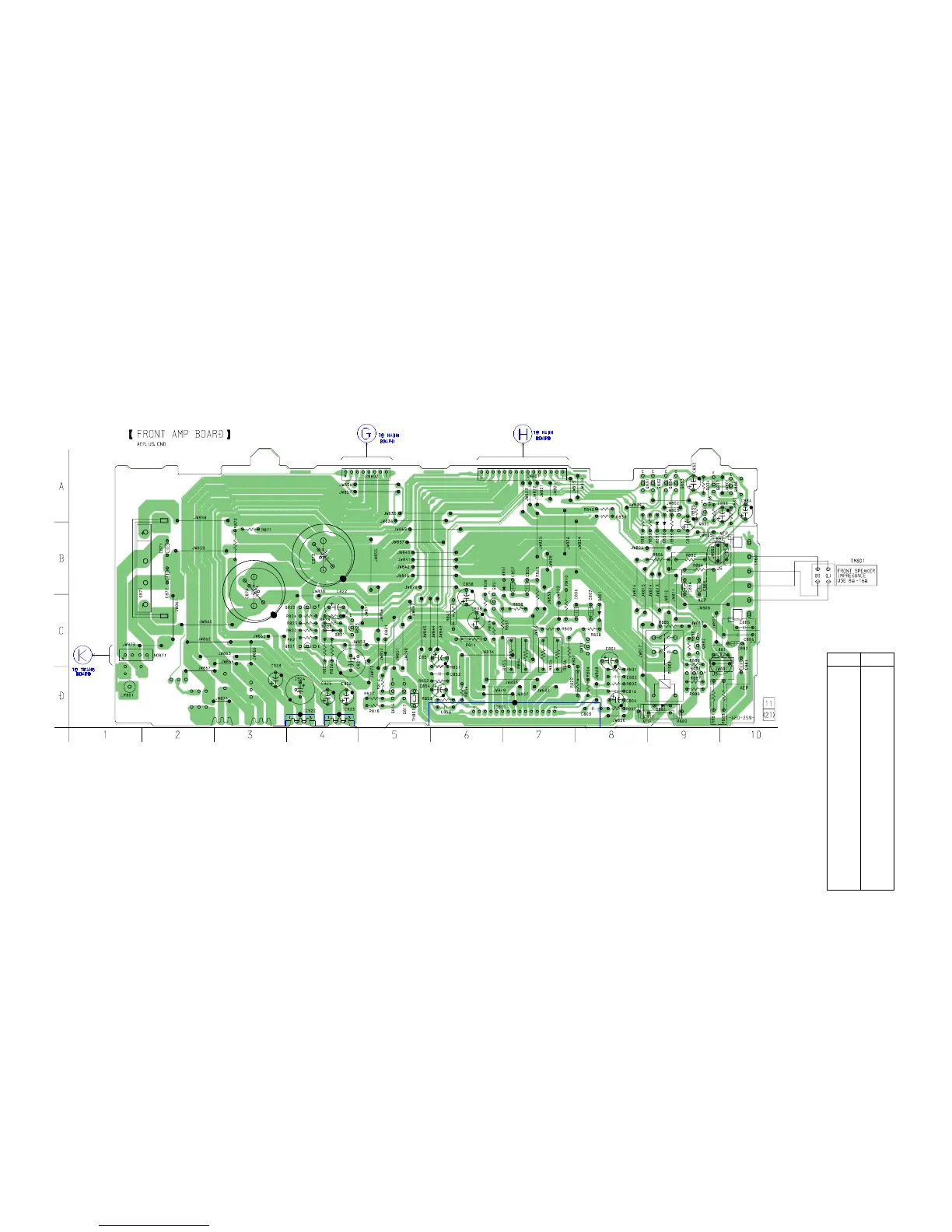

6-14. PRINTED WIRING BOARD – FRONT AMP SECTION – (AEP/US/CND model) • See page 23 for Circuit Boards Location.
Ref. No. Location
D801 C-8
D821 C-4
D830 B-9
D831 B-9
D851 B-6
D871 B-2
D881 B-9
D891 C-5
IC801 D-6
IC922 D-4
IC923 D-4
Q801 C-8
Q816 D-5
Q817 D-5
Q821 C-4
Q822 C-4
Q823 C-4
Q831 A-8
Q832 A-9
Q833 A-9
Q834 A-9
Q835 A-9
Q836 A-10
Q837 A-9
Q851 C-6
Q881 D-9
Q882 C-9
• Semiconductor
Location
(Page 28)
(Page 28)
(Page 49)
