Sony HCD-DP700 - Chassis Section

64
HCD-DP700

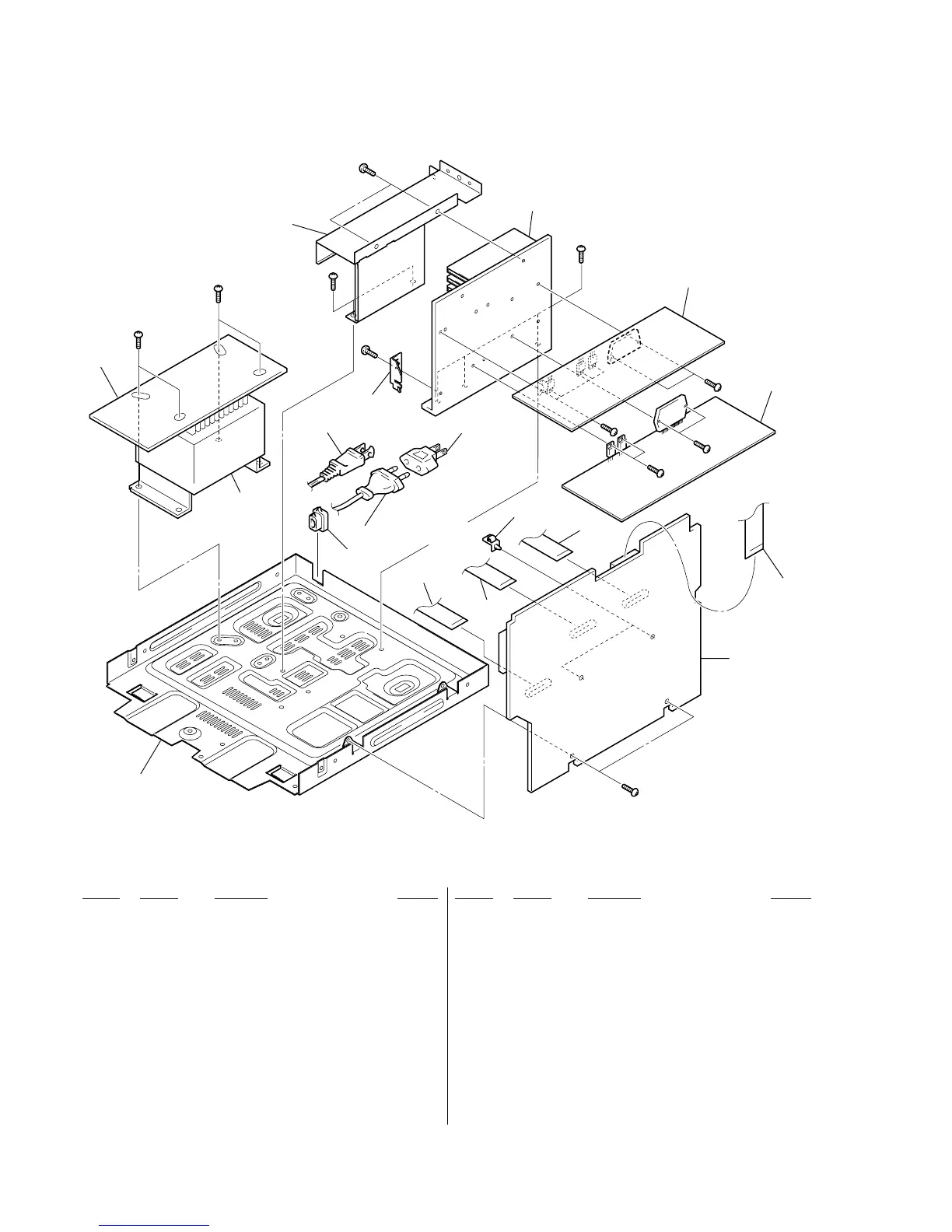

7-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 A-4475-627-A MAIN BOARD, COMPLETE (US, CND)
101 A-4475-671-A MAIN BOARD, COMPLETE (E51)
101 A-4475-685-A MAIN BOARD, COMPLETE (AEP)
101 A-4476-032-A MAIN BOARD, COMPLETE (MX)
102 1-773-042-11 WIRE (FLAT TYPE) (17 CORE)
103 1-757-418-11 WIRE (FLAT TYPE) (21 CORE)
104 1-757-420-11 WIRE (FLAT TYPE) (23 CORE)
105 1-757-419-11 WIRE (FLAT TYPE) (21 CORE)
106 A-4475-634-A FRONT AMP BOARD, COMPLETE (US)
106 A-4475-675-A FRONT AMP BOARD, COMPLETE (E51, MX)
106 A-4475-689-A FRONT AMP BOARD, COMPLETE (AEP)
106 A-4476-020-A FRONT AMP BOARD, COMPLETE (CND)
107 1-680-188-11 SURROUND AMP BOARD
108 1-680-189-11 TRANS BOARD
109 3-703-571-11 BUSHING (S) (4516), CORD (MX)
* 109 3-703-244-00 BUSHING (2104), CORD (AEP, CND, E51, US)
0110 1-777-071-81 CORD, POWER (AEP, E51)
0 110 1-783-531-11 CORD, POWER (CND, US)
0 110 1-791-901-11 CORD, POWER (MX)
111 1-569-008-21 ADAPTOR, CONVERSION(E51)
0 T911 1-435-811-11 TRANSFORMER, POWER (US)
0 T911 1-435-812-11 TRANSFORMER, POWER (CND)
0 T911 1-435-813-11 TRANSFORMER, POWER (AEP)
0 T911 1-435-814-11 TRANSFORMER, POWER (E51, MX)
not supplied
not supplied
not supplied
not supplied
not supplied
T911
108
111
(E51)
110 (AEP, E51, MX)
110 (US,CND)
109
107
106
102
103
104
105
101
#1
#6
#6
#1
#6
#1
#6
#4
#4
#5
#5
