Sony HCD-DP700 - Disassembly Procedures; Top Case and Front Panel Removal

6
HCD-DP700
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

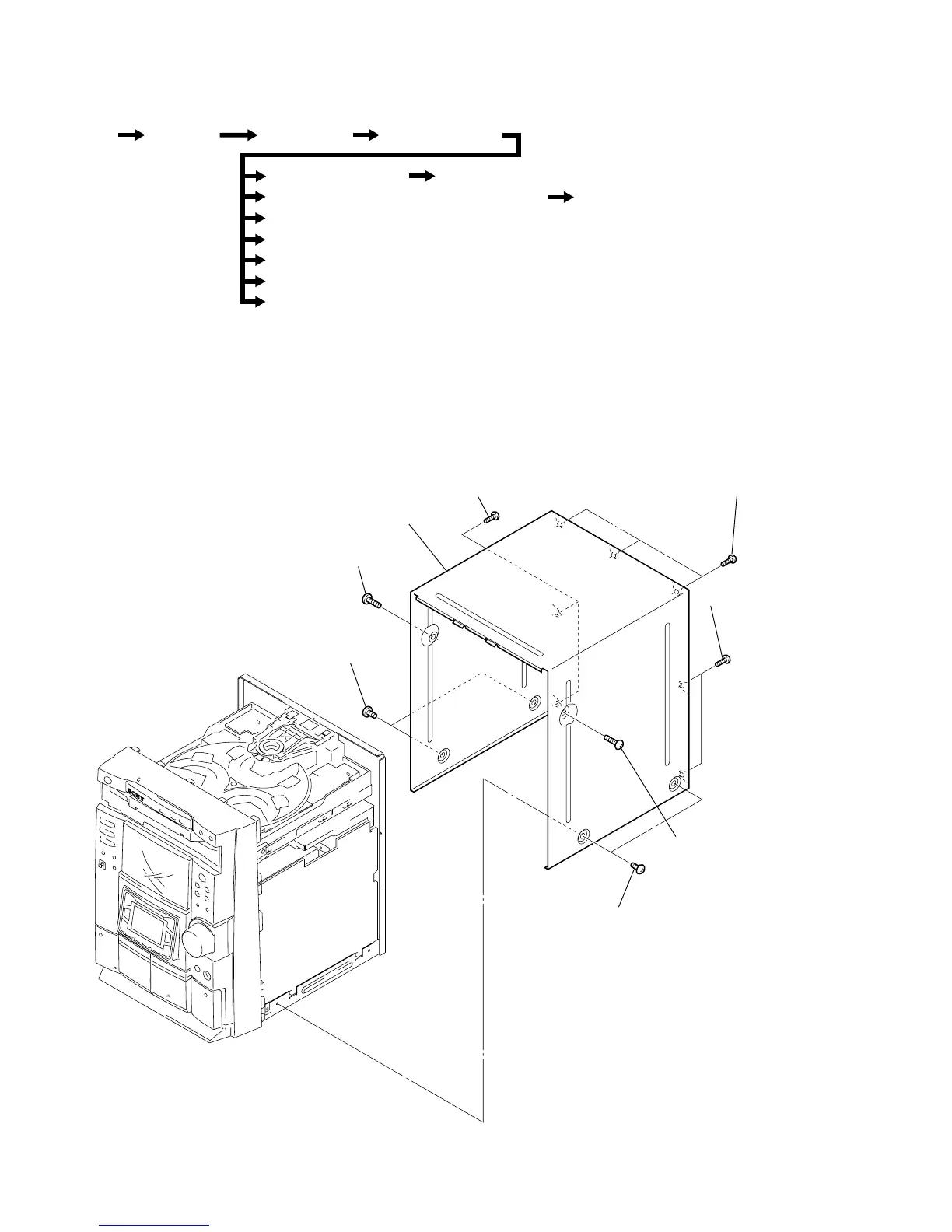

2-1. CASE (TOP)
Set Case (Top) Loading Panel Front Panel Section
Tape Mechanism Deck
CD PANEL Board, Panel Board, OPT IN Board
Head (A) Board, Head (B) Board And LEAF SW Board
DSP Board And SUB Trans Board
Main Board And Trans Board
FRONT AMP Board And Surround AMP Board
Base Unit
Driver Board, Motor Board And CD Sensor Board
Escutcheon Pad (With TOUCH PAD)
• The equipment can be removed using the following procedure.
1 two screws (case 3 TP2)
2 screw (case 3 TP2)
3 two screws (case 3 TP2)
4 screw (case 3 TP2)
8 case
7 two screws
(+BVTT 3
× 8)
6 three screws (+BVTT 3 × 8)
5 two screws (+BVTT 3 × 8)
