Sony HCD-DP700 - Loading Panel and CD;OPT Board Removal

7
HCD-DP700

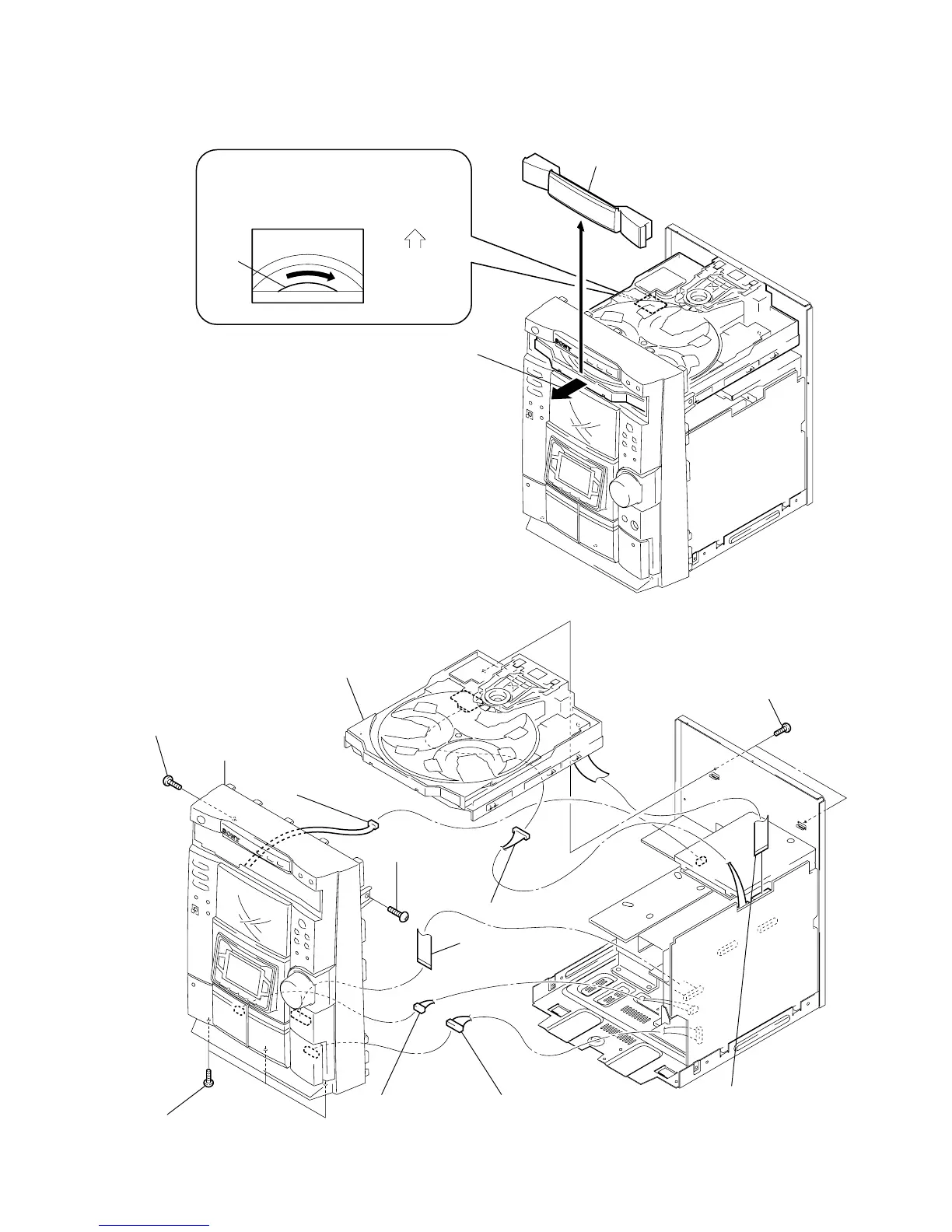

2-2. LOADING PANEL
2-3. FRONT PANEL SECTION
2 Pull-out the disc tray.
4 Pull-out the disc tray.
1 Turn the pulley to the direction of arrow.
pulley
Front panel side
CD mechanism deck (CDM58)
3
0 two screws (+BVTP 3 × 10 )
3 screw (+BVTP 3 × 10)
2 screw
(+BVTP 3
× 10)
1 connector (CN601)
qs connector (CN701)
8 connector (CN2) 7 connector (CN1)
6 flat type wire (CN1001)
9 flat type wire (CN201)
4 three screws (+BVTT 3 × 8)
5 front panel section
qa CD mechanism deck (CDM58)
