Sony HCD-DP700 - Main, DSP, and Amp Board Removal

9
HCD-DP700

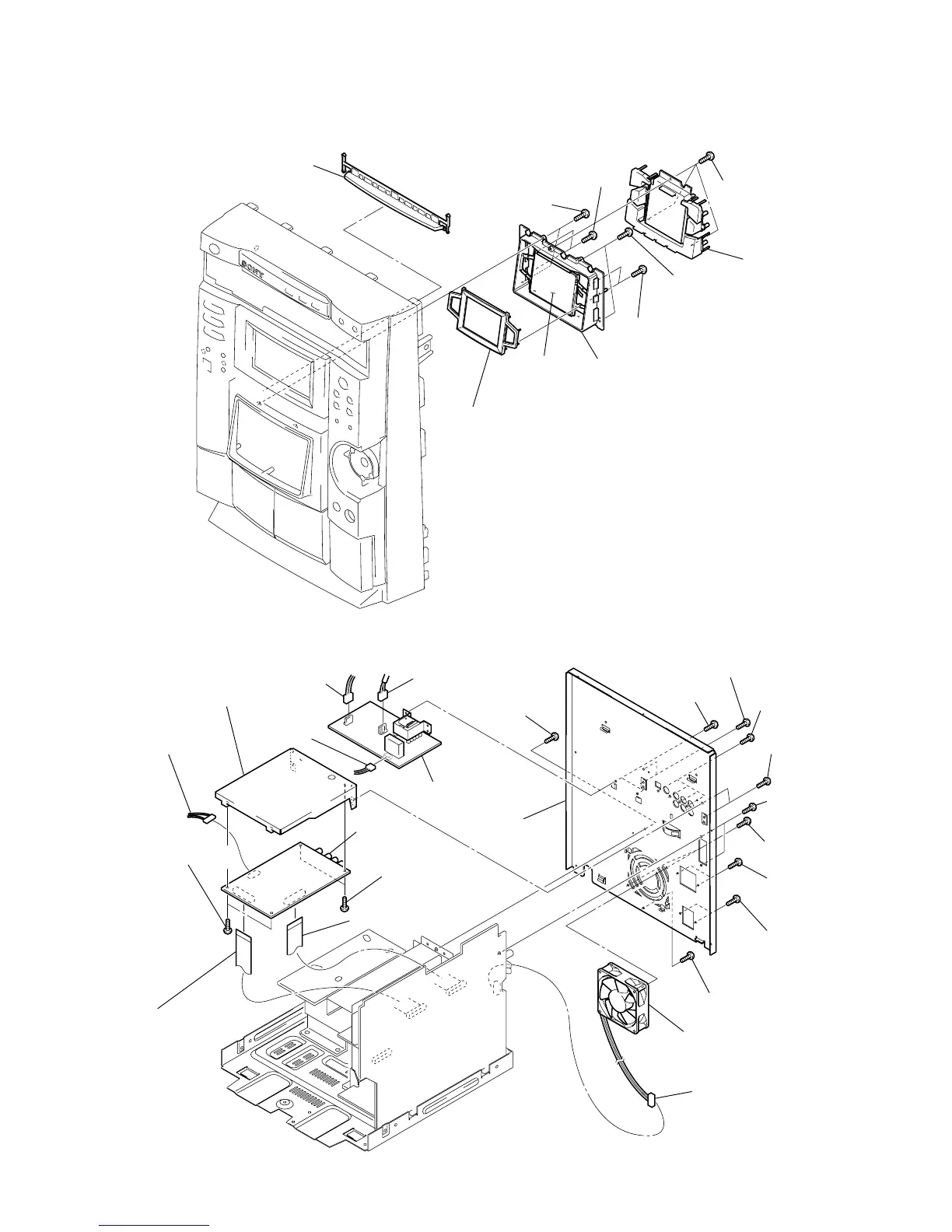

2-6. ESCUTCHEON PAD (WITH TOUCH PAD)
2-7. DSP BOARD, SUB TRANS BOARD
1 button (edit)
5 two screws
(TPG +P 2
× 8)
6 two screws
(TPG +P 2
× 8)
3 two screws
(+BVTP 2.6
× 8)
2 two screws
(+BVTP 2.6
× 8)
8 three screws
(+BVTP 2.6
× 8)
9 button (DSP
)
7 holder (pad)
4 escutcheon (pad)
touch pad
qa connector (CN901)
2 two screws
(+BVTP 3
× 8
)
6 two screws
(+BVTP 3
× 8)
7 two screws
(+BVTP 3
× 8)
8 bracket (DSP)
9 DSP board
1 two screws
(+BVTP 3
× 8)
0 two screws
(+BVTP 3
× 8)
qf SUB trans board
wa back panel
wd two screws
(+BVTP 3
× 10 )
ws connector (CN104)
wf fan
qg four screws
(+BVTP 3
× 8)
qd connector
(CN903)
qh two screws
(+BVTP 3
× 8
)
ql screw (+BVTP 3 × 8)
qj two screws
(+BVTP 3
× 8
)
qk two screws
(+BVTP 3
× 8
)
w; screw
(+BVTP 3
× 8)
qs connector (CN902)
5 connector
(CN601)
3 flat type wire (CN603)
4 flat type wire (CN602)
