HCD-DZ150K/DZ151KB

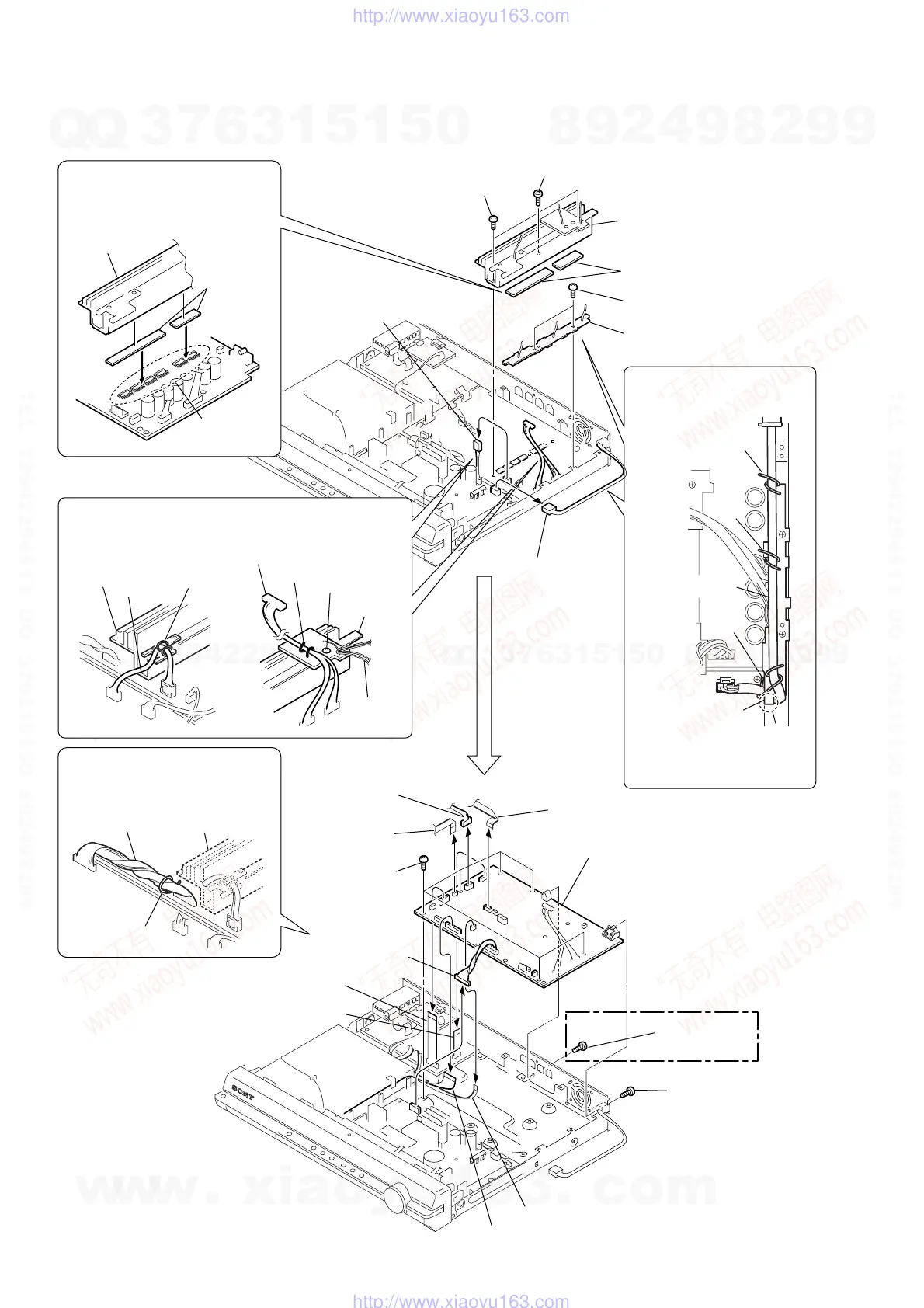

3-10. MAIN BOARD
2
connector
2p (CN901)
1
connector
4p (CN3002)
Attaching the two radiation sheets
on the IC MAIN board first, and then
attach the heatsink (AMP).
heatsink (AMP)
radiation
sheets
IC on the
MAIN board
5
two screws (+BV 3
×
10)
7
heatsink (AMP),
HEATSINK B board,
HEATSINK A board
8
two radiation sheet
6
screw (+BVTP 3
×
12)
4
INSURATOR
board
3
two
screws (+BV 3
×
6)
ql
seven
screws
(+BV 3
×
6)
harness
lead pin
heatsink
(AMP)
harness
(D.C. fan)
harness
lead pin
screw
Clamp the harnesses with a lead pin or a similar tool so that
they do not touch this screw and the heatsink (AMP).
Clamp the harness with a lead pin
or a similar tool so that they do not
touch the heatsink (AMP).
heatsink (AMP)
q;
connector
6p (CN1201)
qs
connector
12p (CN906)
Route the power code according
to a white line on the
INSURATOR board.
Must not remove the power code
from the part of A of the
INSURATOR board.
power cord
INSURATOR
board
A
lead pin
lead pin
lead pin
9
wire (flat type) 24core (CN1101)
qa
wire (flat type)
5core (CN1202)
qf
wire (flat type) 11core (CN4302)
qd
wire (flat type) 17core (CN607)
qh
wire (flat type) 5core (CN702)
qj
screw
(+BVTP 3
×
8)
qk
screw
(+BVTP 3
×
8)
w;
MAIN board
qg
wire (flat type) 21core (CN502)
(AR, E12, E32, MX, SP)
heatsink
(AMP)
harness
lead pin
• Abbreviation
AR : Argentine model
E12 : 220-240V AC area in E model
E32 : 110-240V AC area in E model
MX : Mexican model
SP : Singapore model
w
w
w
.
