HCD-DZ150K/DZ151KB
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

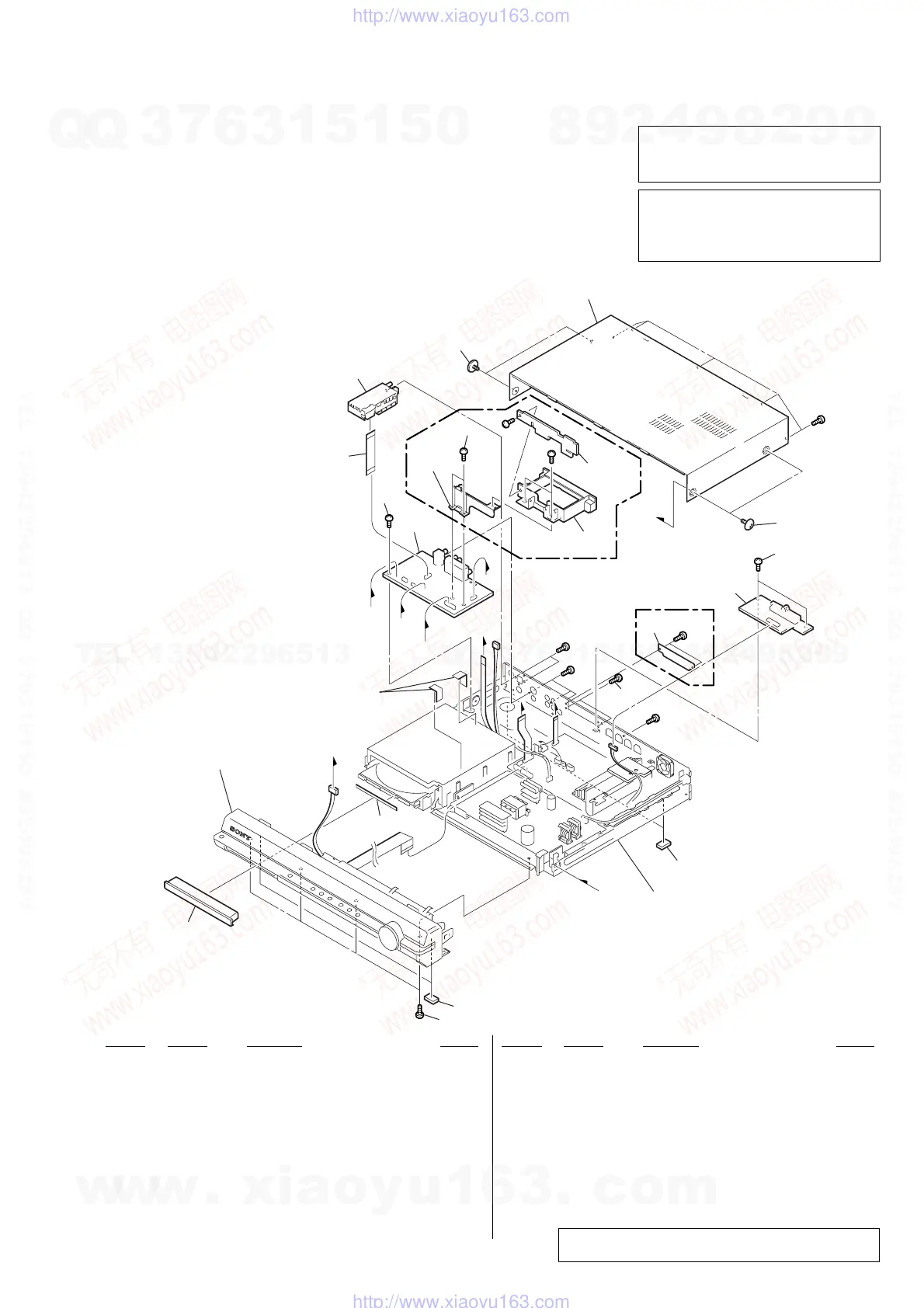

7-1. OVERALL SECTION
1 2-889-987-01 PANEL, LOADING (DZ150K)
1 2-889-987-11 PANEL, LOADING (DZ151KB)
2 3-077-331-21 +BV3 (3-CR)
3 4-232-478-31 FOOT
4 A-1222-501-A IO-S-OUT BOARD, COMPLETE
(EXCEPT EA, RU)
4 A-1239-708-A IO-S-OUT BOARD, COMPLETE (EA)
4 A-1256-653-A IO-S-OUT BOARD, COMPLETE (RU)
5 2-892-554-11 CASE (DIAT)(EXCEPT RU)
6 2-892-739-01 LID (DIAT-P)(EXCEPT RU)
7 1-828-951-51 WIRE (FLAT TYPE) (9 CORE)
8 1-693-725-11 TUNER (FM/AM)(RU, KR)
8 1-693-726-11 TUNER (FM/AM)(AUS, EA, TW)
8 1-693-727-11 TUNER (FM/AM)(E3, E12, E32, AR, MX, SP)
9 3-363-099-22 SCREW (CASE 3 TP2) (DZ151KB)
9 3-363-099-51 SCREW (CASE 3 TP2) (DZ150K)
10 2-889-996-11 CASE (DS) (DZ150K)
10 2-889-996-31 CASE (DS) (DZ151KB)
11 3-077-331-11 +BV3 (3-CR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-862-09 SCREW +BVTT 2.6X6 (S)
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
(EXCEPT RU)
(EXCEPT RU)
b
f
f
e
e
b
c
a
c
a
front panel section
chassis section
2
1
3
3
2
2
7
8
9
9
10
2
11
6
5
4
not supplied
not supplied
not supplied
not
supplied
not
supplied
#2
#1
#1
#1
#1
#1
#1
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
•Abbreviation
AR : Argentine model
AUS:Australian model
E3 : 220 – 240V AC area in E model
E12 : 220 – 240V AC area in E model
E32 : 110 – 240V AC area in E model
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
TW : Taiwan model
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
