HCD-DZ150K/DZ151KB
SECTION 2
GENERAL

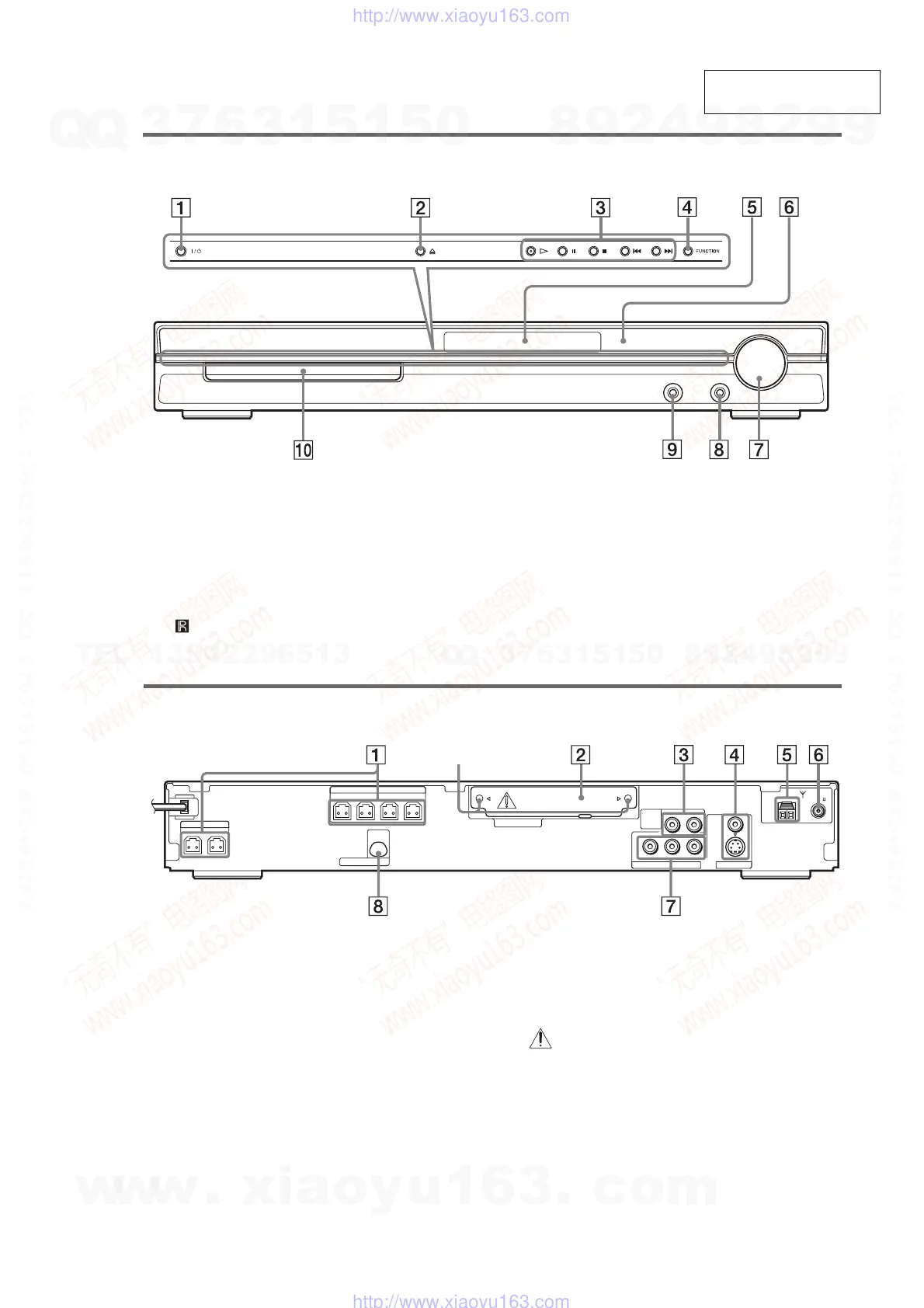

Front panel
A "/1 (on/standby) (25)
B A (open/close) (25)
C Disc operation (25)
D FUNCTION (25)
E Front panel display (93)
F (remote sensor) (9)
G VOLUME control (25)
H MIC 2 jack (58)
I AUDIO IN/MIC 1/A.CAL MIC jack (15, 23,
58)
J Disc tray (25)
Rear panel
A SPEAKER jacks (10)
B DI
for Russian model) (23)
R-TC1 slot for the WAHT-SD1 (except
C TV/VIDEO (AUDIO IN R/L) jacks (23)
D MONITOR OUT (S VIDEO/VIDEO) jacks
(20)
E AM terminal (10)
F COAXIAL FM 75Ω jack (10)
G COMPONENT VIDEO OUT jacks (20)
H D-LIGHT SYNC OUT jack (Indian,
Singapore, Mexican, and Latin
American models only) (23)
*
CAUTION
Please do not remove the screws before
installing the WAHT-SD1.
FRONT R
CENTER WOOFER
FRONT L SUR R SUR L
TV /
VIDEO
MONITOR OUT
SPEAKER
D-LIGHT SYNC OUT
SPEAKER
COMPONENT VIDEO OUT
COAXIAL
AM
FM75
RLAUDIO IN
(DVD ONLY)
YP
B
/C
B
P
R
/C
R
VIDEO
(DVD ONLY)
S VIDEO
DIR-TC1
Screws*
