Sony HCD-EP707 - 6 Exploded Views; Panel Section

33
HCD-EP707

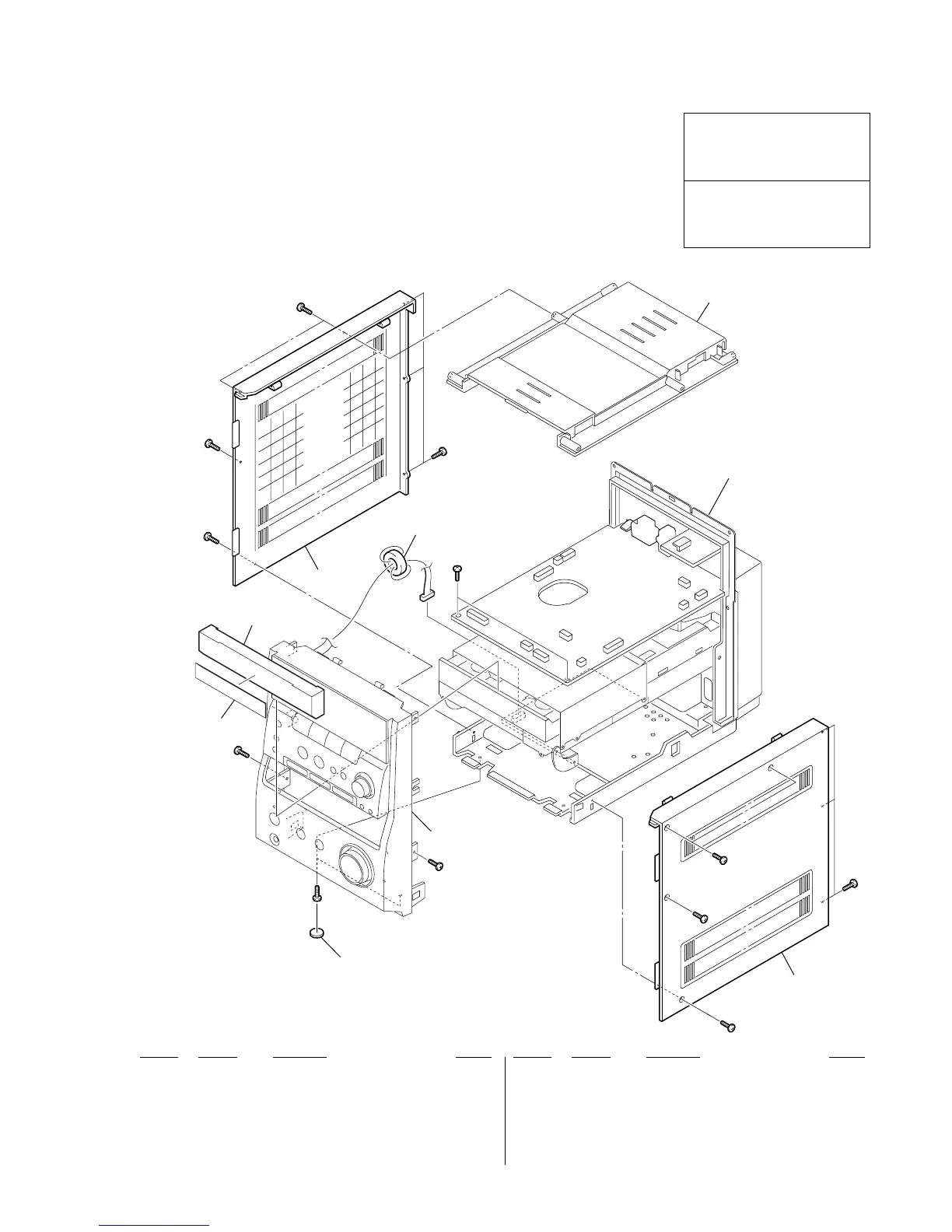

6-1. PANEL SECTION
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
1
2
5
4
3
#7
#13
#9
#9
#7
#
7
#7
#7
#8
#7
#8
#7
front panel section
top cabinet section
chassis section
6
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-242-007-01 RUBBER (FOOT)
2 4-242-032-01 CD LID
3 4-242-005-01 SIDE PANEL (L) (US, CND)
3 4-243-165-01 SIDE PANEL (L) (AEP, UK, AUS)
4 4-242-006-01 SIDE PANEL (R) (US, CND)
4 4-243-166-01 SIDE PANEL (R) (AEP, UK, AUS)
5 4-242-029-01 CD LID WINDOW
6 1-500-712-11 CORE, FERRITE
#7 7-685-246-14 SCREW +KTP 3X8 TYPE2 NON-SLIT
#8 7-682-248-04 SCREW +K 3X8
#9 7-685-647-14 SCERW +BVTP 3X10 TYPE2 SLIT
#13 7-685-648-14 SCREW +BVTP 3X12 TYPE2 SLIT
