Sony HCD-EP707 - Front Panel Section

34
HCD-EP707

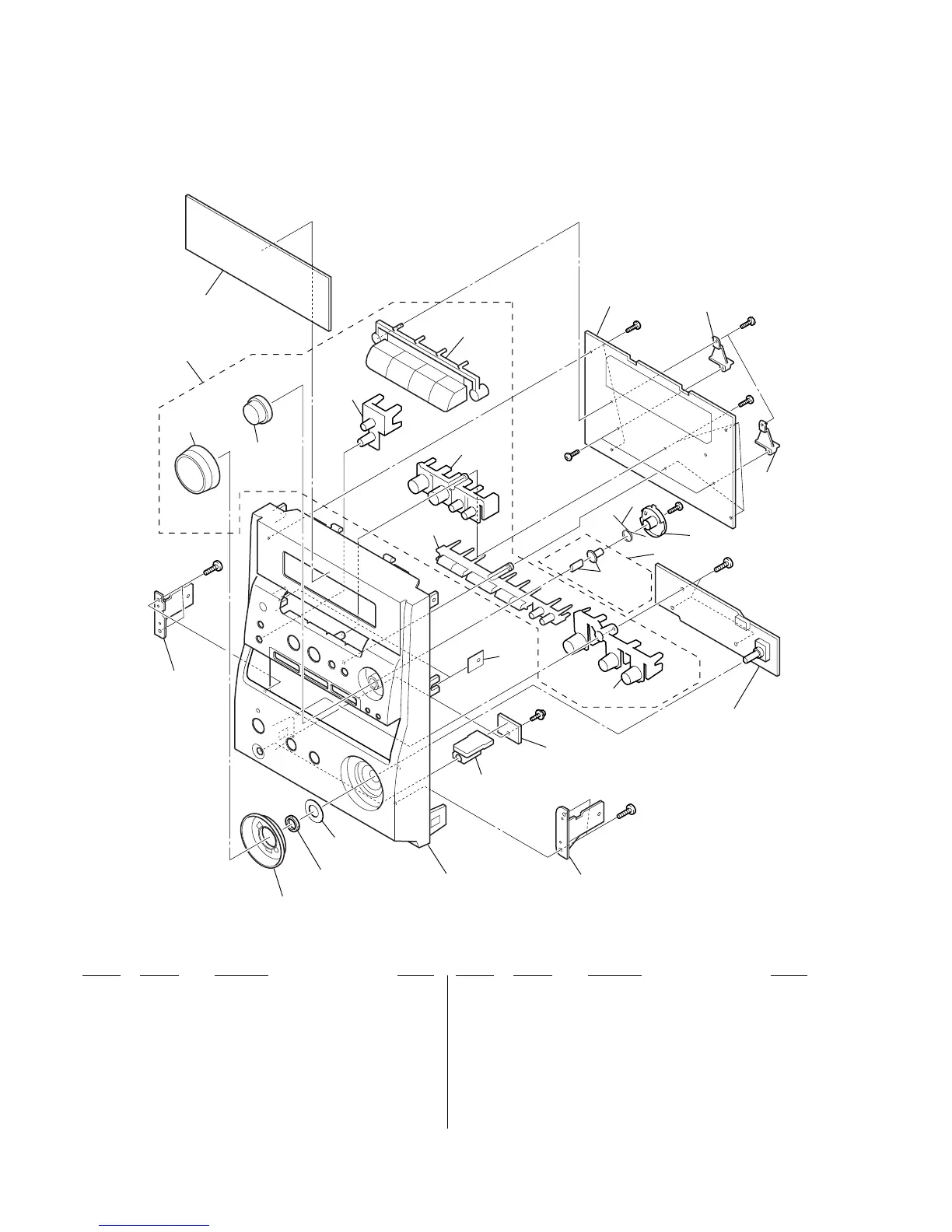

6-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-4955-068-1 KNOB ASSY
52 4-242-013-01 VOLUME DECORATION RING
53 4-826-537-11 WASHER, SPECIAL
54 4-242-012-01 VFD WINDOW (US, CND AUS)
54 4-243-170-01 VFD WINDOW (AEP, UK)
55 A-4730-425-A DISPLAY BOARD, COMPLETE (US, CND)
55 A-4730-625-A DISPLAY BOARD, COMPLETE (AEP, UK)
55 A-4730-716-A DISPLAY BOARD, COMPLETE (AUS)
56 4-242-018-01 TUNING SWING LEVER
57 4-242-028-01 TUNING SHAFT SPRING
58 4-235-994-01 PANEL FIXING PLATE
59 4-242-027-01 FRONT PANEL
60 4-242-019-01 TUNING SWING SHAFT
#1 7-685-135-19 SCREW +P2.6X10 TYPE2 NON-SLIT
#2 7-685-646-14 SCREW +BVTP 3X8 TYPE2 SLIT
#3 7-685-536-14 SCREW +BTP 2.6X12 TYPE2 N-S
#4 7-685-854-04 SCREW +BVTT 2X8 (S)
#5 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
