Sony HCD-EP707 - Chassis Section

36
HCD-EP707

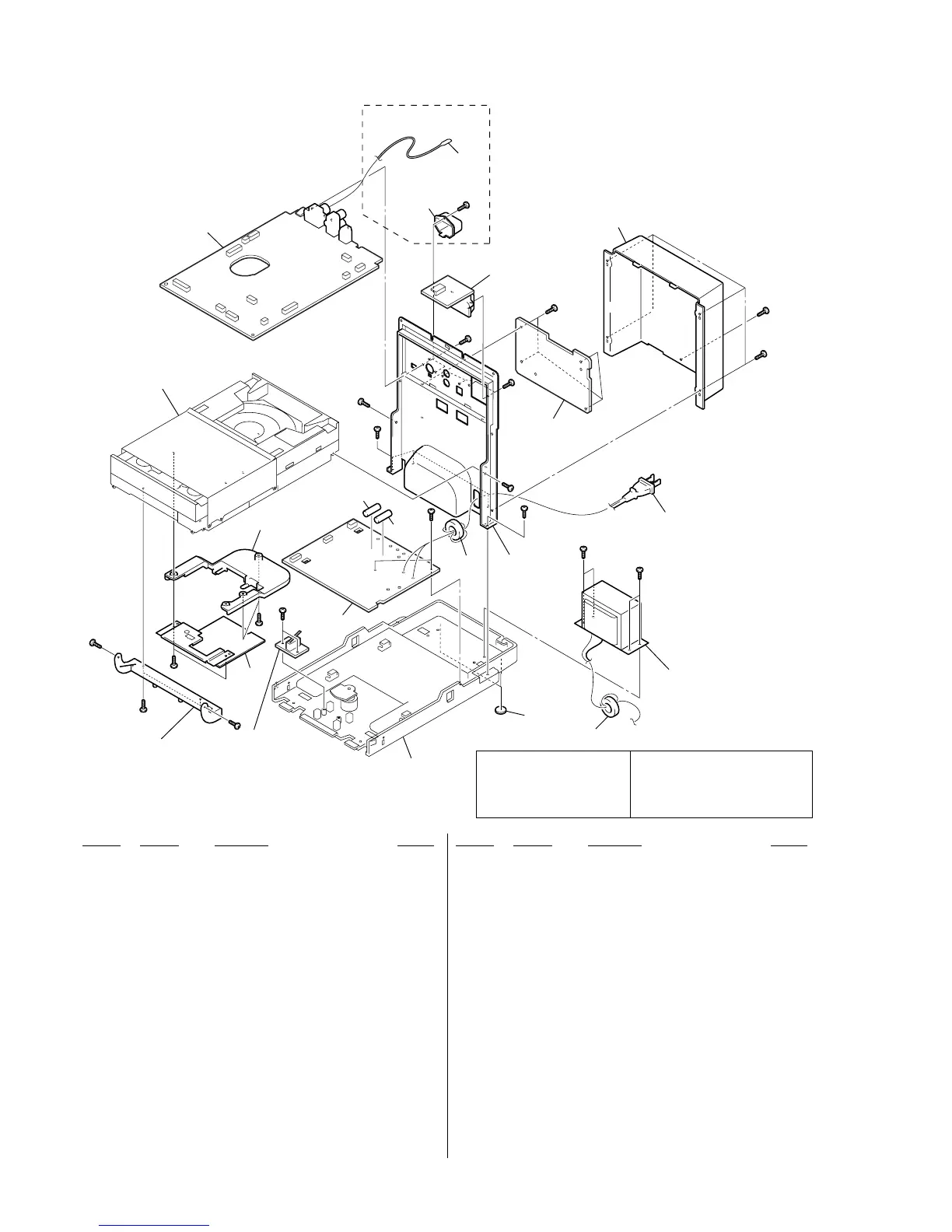

6-4. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 4-242-007-01 RUBBER (FOOT)
152 1-761-636-11 PC BOARD ASSY
153 A-4730-430-A REGULATOR BOARD, COMPLETE (US, CND)
153 A-4730-624-A REGULATOR BOARD, COMPLETE
(AEP, UK, AUS)
154 A-4730-428-A MAIN BOARD, COMPLETE (US, CND, AUS)
154 A-4730-626-A MAIN BOARD, COMPLETE (AEP, UK)
155 A-4730-429-A POWER AMP BOARD, COMPLETE
156 4-242-004-01 REAR COVER (US, CND)
156 4-243-164-01 REAR COVER (AEP, UK, AUS)
0157 1-555-750-00 CORD, POWER (AEP)
0157 1-696-535-11 CORD, POWER (UK)
0157 1-696-966-31 CORD, POWER (AUS)
0157 1-783-820-11 CORD, POWER (US, CND)
158 1-823-170-11 CORD (WITH CONNECTOR) (FM ANT)
(AEP, UK)
159 4-243-167-01 ANTENNA JACK COVER (AEP, UK)
160 1-500-712-11 CORE, FERRITE
0F803 1-533-296-11 FUSE, GLASS CYLINDRICAL (DIA.5) (2A/125V)
(US, CND)
0F803 1-533-468-11 FUSE, GLASS TUBE (DIA.5) (2A/250V)
(AEP, UK, AUS)
0F804 1-533-419-11 FUSE, GLASS CYLINDRICAL (DIA.5) (4A/125V)
(US, CND)
0F804 1-533-471-11 FUSE, GLASS TUBE (DIA.5) (4A/250V)
(AEP, UK AUS)
0TR800 1-437-955-11 TRANSFORMER, POWER (US, CND)
0TR800 1-437-957-11 TRANSFORMER, POWER (AEP, UK, AUS)
#2 7-685-646-14 SCREW +BVTP 3X8 TYPE2 SLIT
#4 7-685-854-04 SCREW +BVTT 2X8 (S)
#5 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
#6 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT
#7 7-685-246-14 SCREW +KTP 3X8 TYPE2 NON-SLIT
#10 7-685-645-14 SCREW +BVTP 3X6 TYPE2 SLIT
#11 7-685-903-31 SCREW +PTPWH 3X10 (TYPE2)
151
153
152
155
160
160
156
157
not
supplied
not supplied
(switch board)
not supplied
not supplied
#2
#10
#6
#10
#6
#6
#2
#11
#11
#6
#6
#6
#2
#10
#10
#5
#4
not
supplied
not supplied
(speaker jack board)
CD section
F803
TR800
F804
154
158
159
AEP, UK
#6
#
7
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ver 1.2
