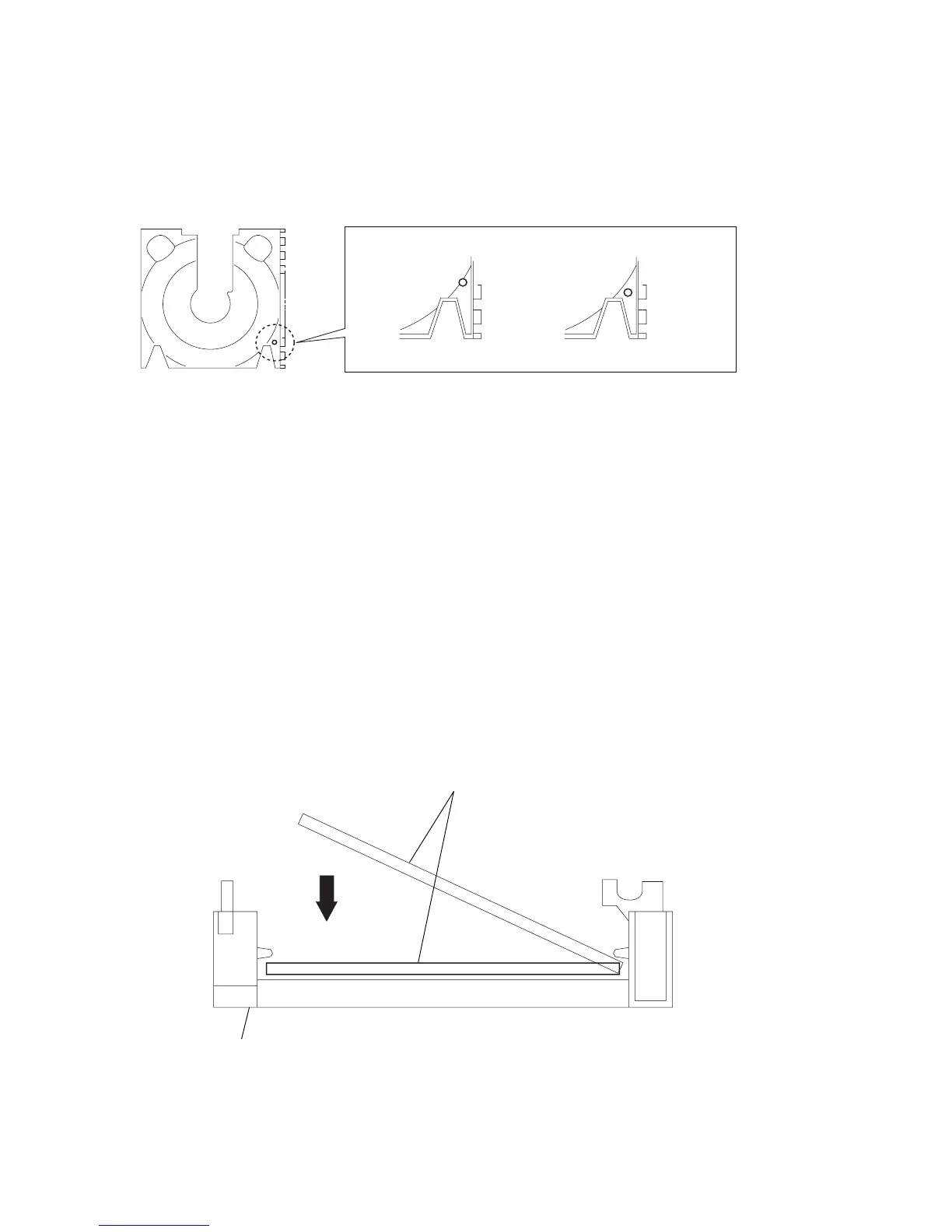

When placing the carriage into the drawer, make sure the carriage is fixed underneath the star gear
and the last teeth into the front teeth of the upper pinion.
After confirming position, the other side of the carriage will have to be pressed down (RHS)
underneath the other side of the star gear.
• Differentiate Carriage Cavities
No. 1 No. 2
Note: Carriage having two punches is cavity No. 3.
drawer
carriage
