HCD-EP707
8
3. DRAWER
7
5
claw
6
claw
4

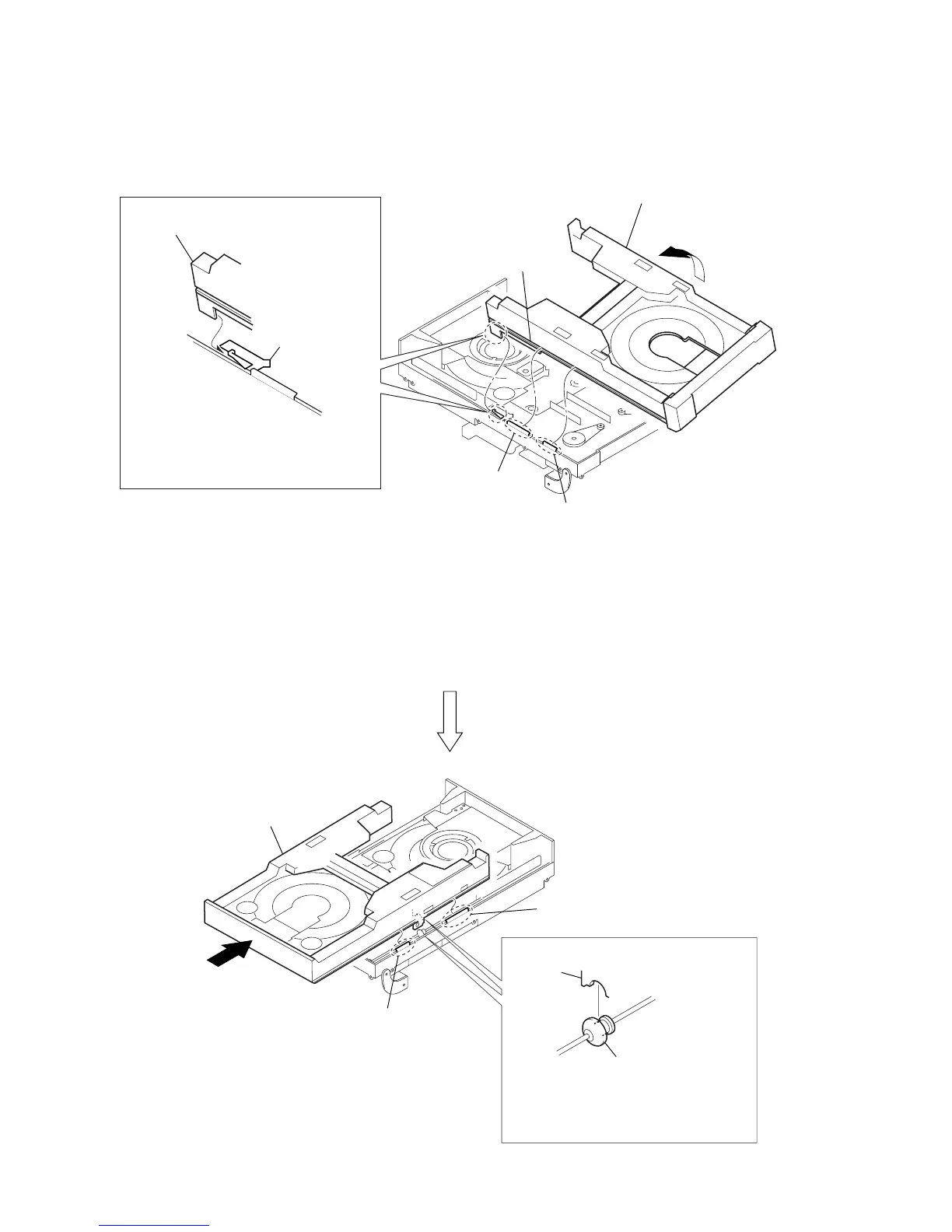

Meet the drawer and the bevel gear
as shown in the figure above.
bevel gear
drawer
drawer
2
Uptilt the right side of the drawer and engage the ditch of the drawer with the claw
A
.
3
Uptilt the right side of the drawer more and engage the ditch of the drawer with the claw
B
.
Note: After claws are engaged, put the drawer in holizontal position
and check that the drawer is loading by moving it back and forth about 5 mm.
If the drawer moves a little, redo this procedure.
1
Push the drawer
in the direction of arrow to the chassis
as shown in the figure above.
claw
B
claw
A
ditch
arm stopper B
drawer
drawer
