18
HCD-FX900W

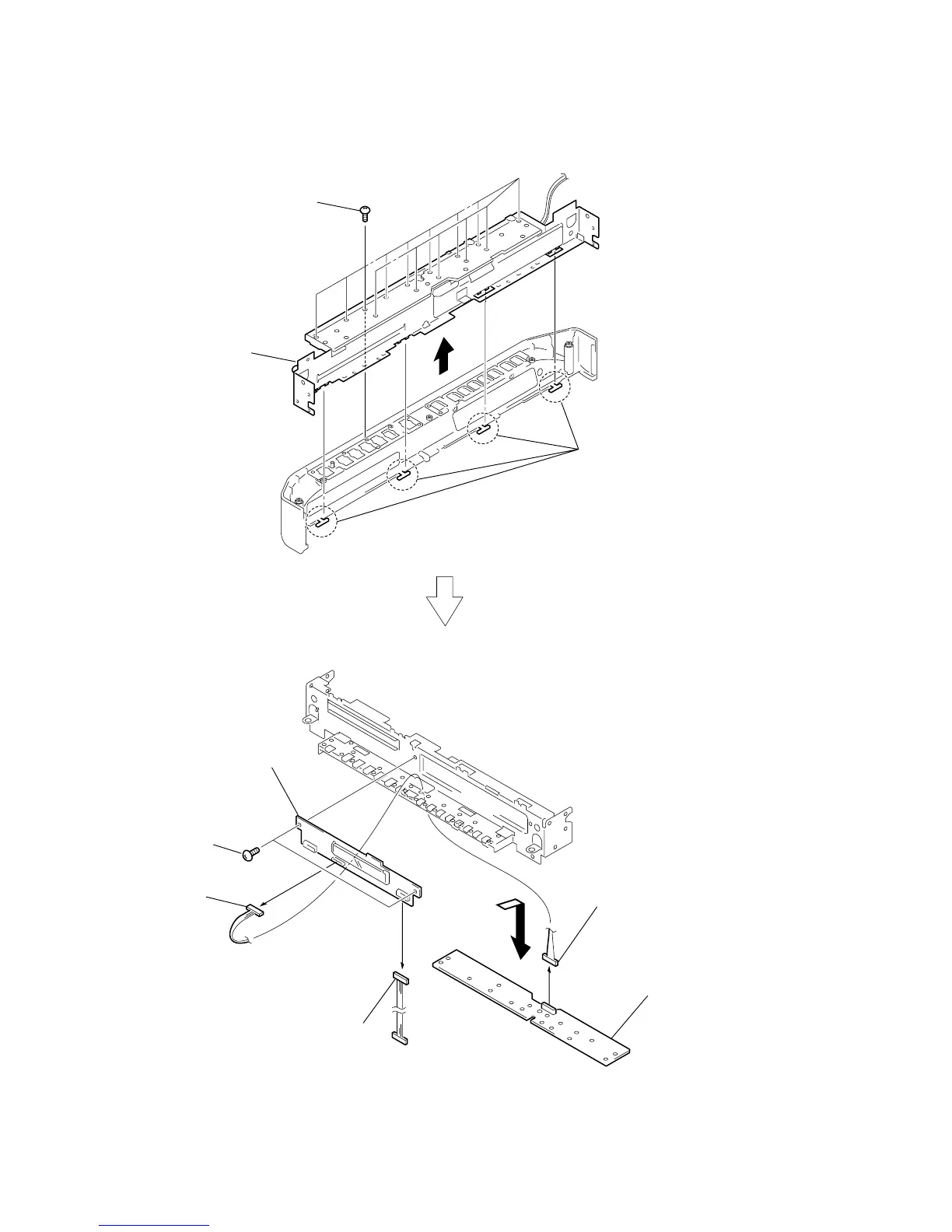

3-4. KEY BOARD, FL BOARD
1
fourteen
screws
(+BTP 2
×
6)
2
four
claws
3
FL board,
KEY board,
front chassis
9
FL board
5
KEY boar
d
8
two
screws
(+BV 3
×
6)
4
connector
(CN804)
6
connector
(CN802)
7
connector
(CN803)
