Sony HCD-FX900W - Chassis Section-2

95
HCD-FX900W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
✩ 151 A-1154-509-A DMB12 BOARD, COMPLETE
152 A-1152-010-A DIAT TX XM BOARD, COMPLETE
153 A-1166-930-A MAIN BOARD, COMPLETE (SUFFIX-14)
153 A-1203-135-A MAIN BOARD, COMPLETE (SUFFIX-15)
154 A-1159-000-A POWER BOARD, COMPLETE
155 4-232-478-41 FOOT
156 3-077-331-21 +BV3 (3-CR)
157 3-077-331-01 +BV3 (3-CR)
158 2-597-972-11 SHEET, RADIATION (CND)
158 2-597-972-41 SHEET, RADIATION (US)
159 2-597-972-01 SHEET, RADIATION (CND)
159 2-597-972-51 SHEET, RADIATION (US)
160 2-677-839-01 +PWH 3X8 (SUMITITE)
161 3-077-331-11 +BV3 (3-CR)
162 1-828-360-11 WIRE (FLAT TYPE) (19CORE)
163 1-828-290-11 WIRE (FLAT TYPE) (7CORE)
164 1-828-320-11 WIRE (FLAT TYPE) (11CORE)
165 1-828-009-11 WIRE (FLAT TYPE) (11CORE)
166 1-828-320-11 WIRE (FLAT TYPE) (11CORE)
167 1-828-382-11 WIRE (FLAT TYPE) (23CORE)
168 1-828-330-11 WIRE (FLAT TYPE) (13CORE)
169 1-828-318-11 WIRE (FLAT TYPE) (11CORE)
0 F901 1-532-749-11 FUSE, GLASS (8A/125V)
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3

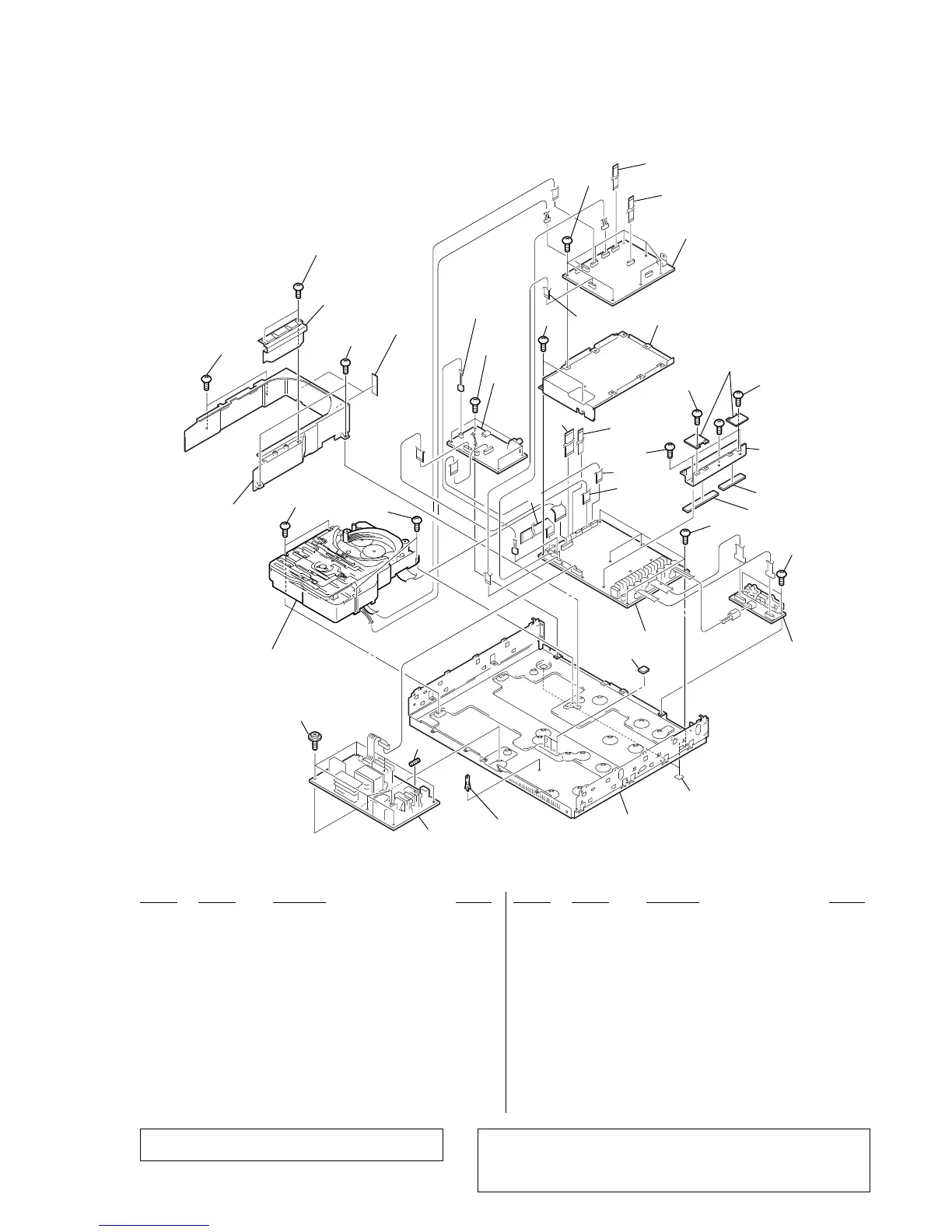

8-4. CHASSIS SECTION-2
DVD mechanism deck section
not supplied
not supplied
not supplied
not supplied
not
supplied
#3
not supplied
not supplied
not supplied
not supplied
F901
151
152
156
156
161
157157
156
156
164
166
167
153
156
155
156
157
156
157
158
159
154
165
168
162
169
160
not supplied
156
not supplied
163
✩ New part of EEP ROM (IC103, IC706) on the DMB12 board cannot be
used. Therefore, if the mounted DMB12 board (A-1154-509-A) is
replaced, exchange new EEP ROM (IC103, IC706) with that used before
the replacement.
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
