92
HCD-FX900W
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

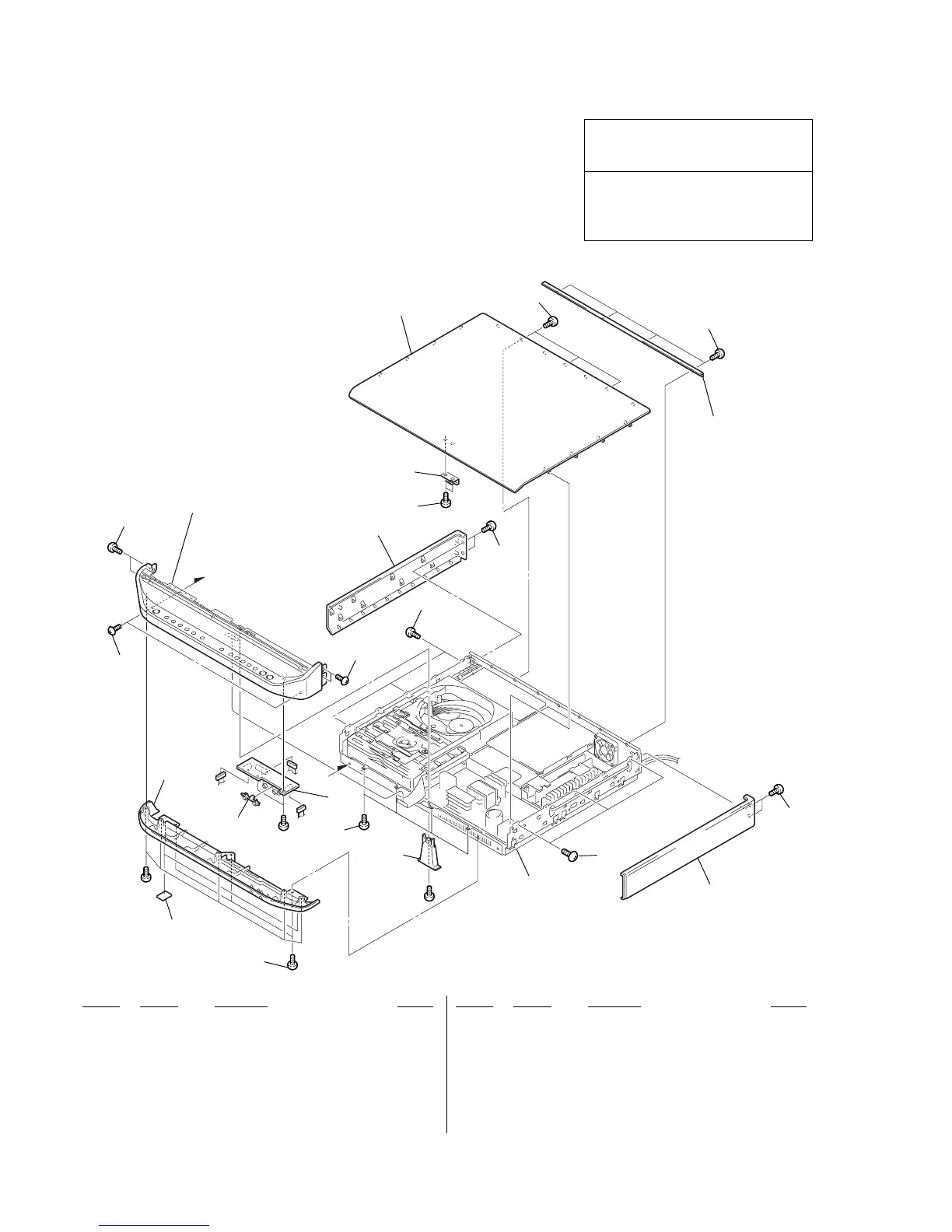

8-1. OVERALL ASSY
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
1 2-660-956-01 PANEL, TOP (REAR)
2 2-663-230-01 PANEL, TOP
3 2-666-992-01 BRACKET (TOP)
4 2-660-954-01 PANEL, SIDE (L)
5 2-660-955-01 PANEL, SIDE (R)
6 2-660-944-02 PANEL, LOWER
7 4-232-478-41 FOOT
8 A-1154-520-A JACK BOARD, COMPLETE
9 3-077-331-01 +BV3 (3-CR)
10 3-077-331-21 +BV3 (3-CR)
#1 7-621-775-10 SCREW +B 2.6X4
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT (B)
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
chassis section-1
#2
#1
#3
not
supplied
not
supplied
front panel section
a
a
2
3
4
1
9
9
9
9
5
7
8
10
6
10
10
10
9
9
10
10
To Next Page
