Sony HCD-FX900W - Button (Disc;Play;Power); I;O Board, D.C. Fan

19
HCD-FX900W

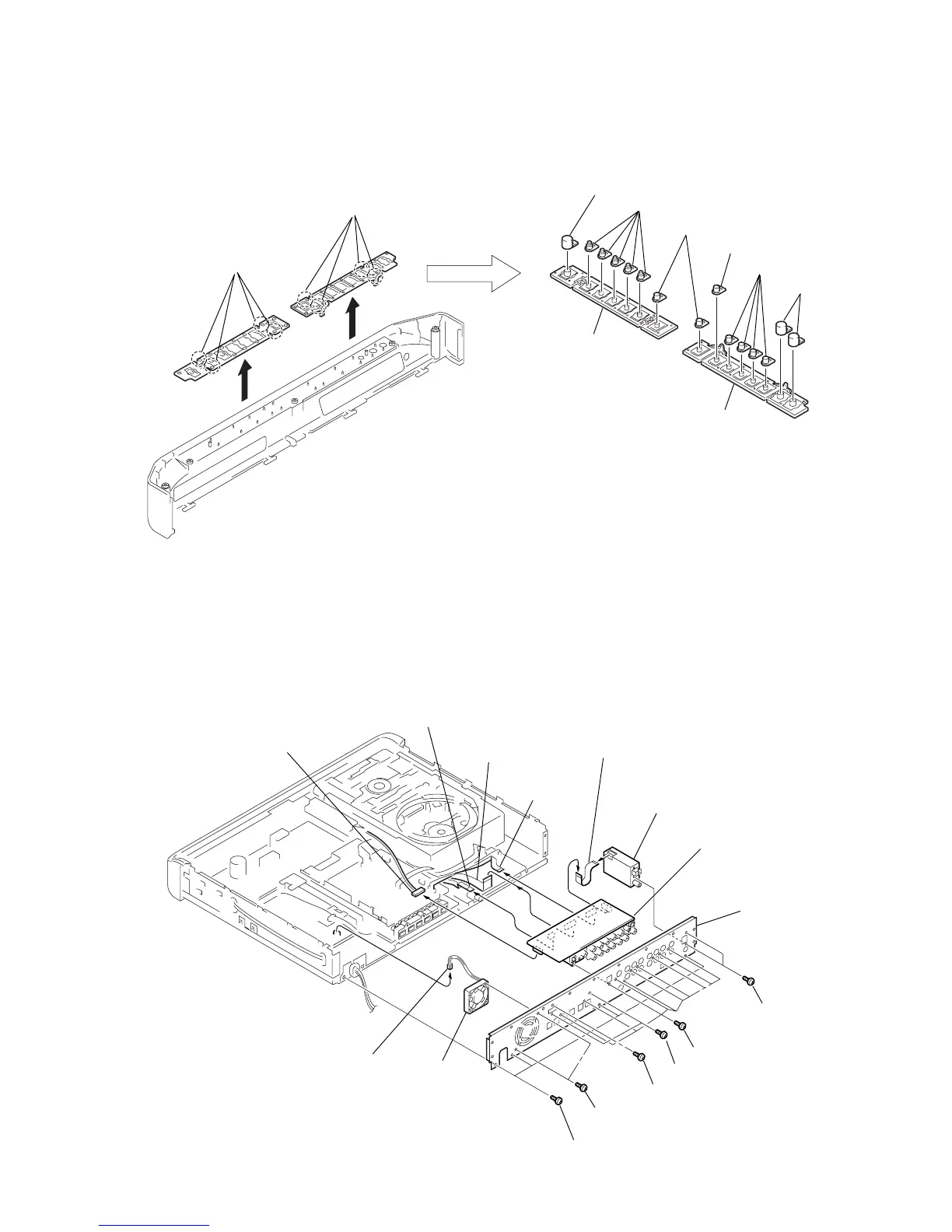

3-6. I/O BOARD, D.C. FAN
3-5. BUTTON (DISC/PLAY/POWER)
9 D.C. fan
qa wire (flat type)
7core (CN304)
q; connector
(CN302)
8 connector
(CN3000)
qs wire (flat type)
19core (CN301)
qd wire (flat type)
11core (CN201)
qh tuner
qg I/O board
qf wire (flat type)
9core (CN303)
1 four screws (+BV 3 × 6)
7 back panel
2 two screws (+BV 3 × 8)
5 ten screws (+BV 3 × 8)
4 two screws (+BTP 3 × 8)
3 screw (+B 3 × 6)
6 two screws
(+BVTT 3
× 6)
2 Remove the button base (play)
at the melted points.
1 Remove the button base (power)
at the melted points.
9 two buttons
(power)
q; button (play) base
3 button (power)
8 four buttons (stop)
5 two buttons (stop)
4 five buttons (disc)
7 button (play)
6 button (power) base
