Sony HCD-FX900W - Chassis Section-1

94
HCD-FX900W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 1-693-703-11 TUNER (FM/AM) (TM10SU)
102 1-787-396-11 D.C. FAN (50 SQUARE)
0103 1-830-190-11 CORD, POWER
104 3-703-244-00 BUSHING (2104), CORD
105 A-1154-522-A I/O BOARD, COMPLETE
106 2-630-050-01 +BVTT 3X6 (SUMITITE)
107 3-077-331-21 +BV3 (3-CR)
108 3-077-331-01 +BV3 (3-CR)
109 1-828-952-11 WIRE (FLAT TYPE) (9CORE)
#4 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
#5 7-682-547-04 SCREW +B 3X6

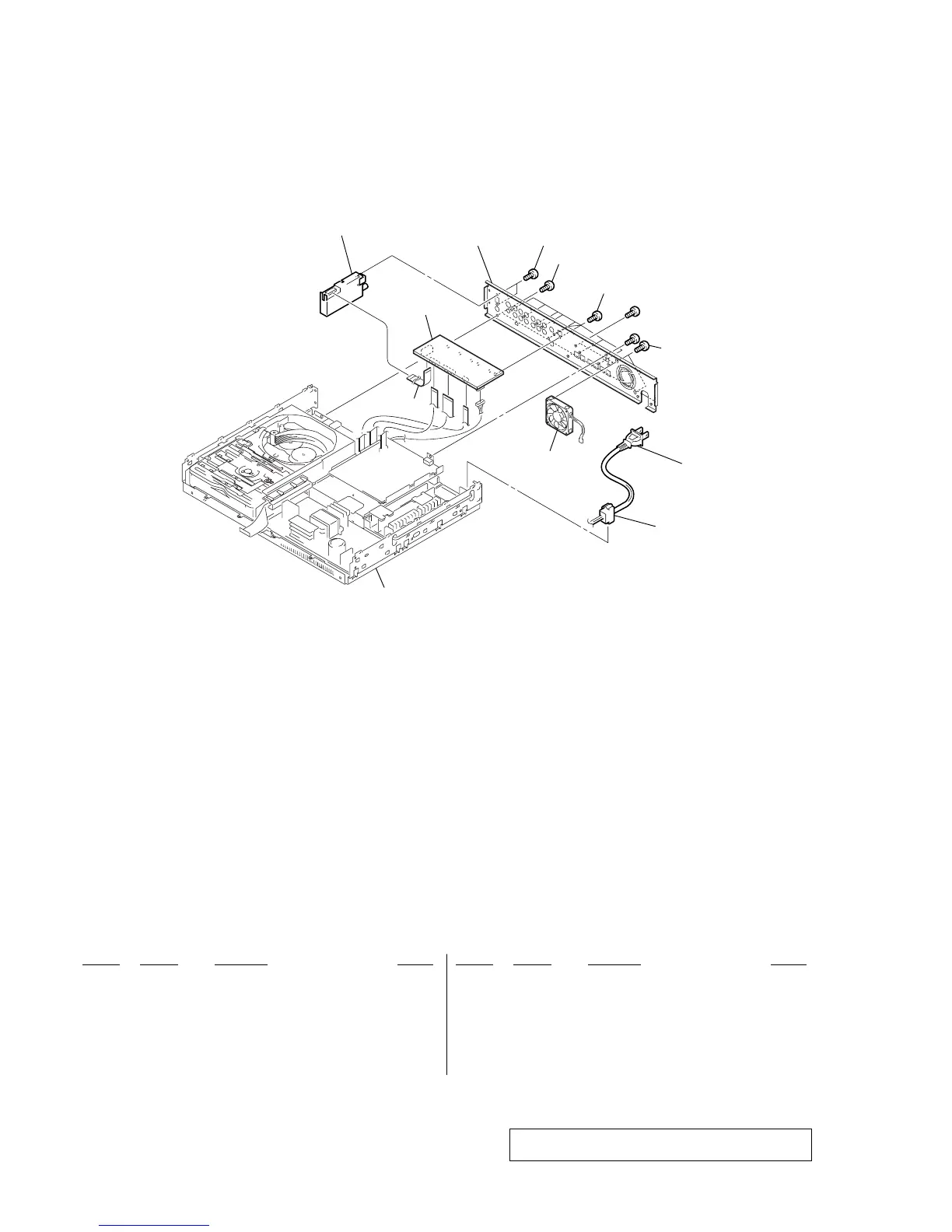

8-3. CHASSIS SECTION-1
101
not supplied
#5
#4
chassis section-2
105
104
103
102
109
106
107
108
108
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
