Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 26 —

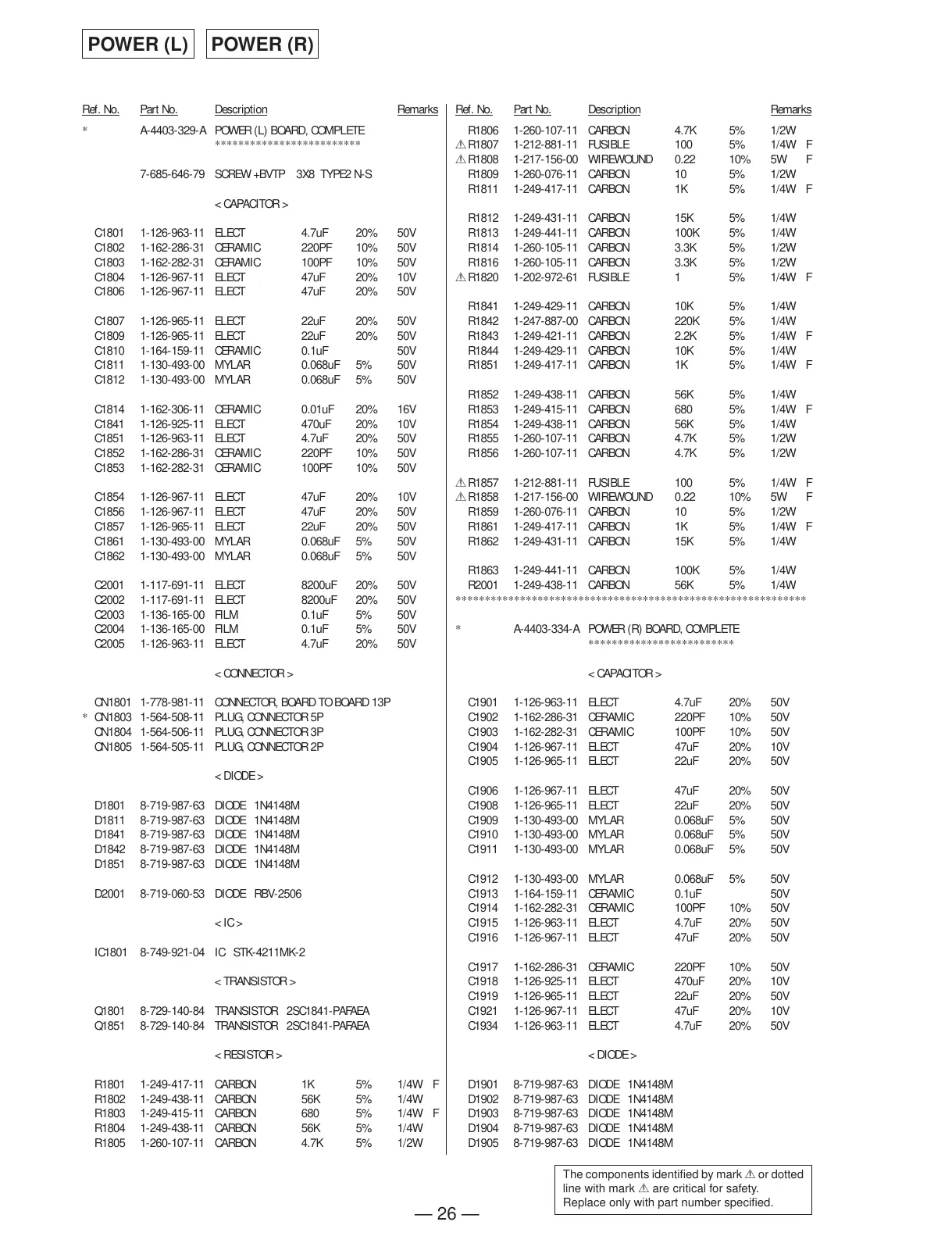

* A-4403-329-A POWER (L) BOARD, COMPLETE
*************************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
< CAPACITOR >
C1801 1-126-963-11 ELECT 4.7uF 20% 50V
C1802 1-162-286-31 CERAMIC 220PF 10% 50V
C1803 1-162-282-31 CERAMIC 100PF 10% 50V
C1804 1-126-967-11 ELECT 47uF 20% 10V
C1806 1-126-967-11 ELECT 47uF 20% 50V
C1807 1-126-965-11 ELECT 22uF 20% 50V
C1809 1-126-965-11 ELECT 22uF 20% 50V
C1810 1-164-159-11 CERAMIC 0.1uF 50V
C1811 1-130-493-00 MYLAR 0.068uF 5% 50V
C1812 1-130-493-00 MYLAR 0.068uF 5% 50V
C1814 1-162-306-11 CERAMIC 0.01uF 20% 16V
C1841 1-126-925-11 ELECT 470uF 20% 10V
C1851 1-126-963-11 ELECT 4.7uF 20% 50V
C1852 1-162-286-31 CERAMIC 220PF 10% 50V
C1853 1-162-282-31 CERAMIC 100PF 10% 50V
C1854 1-126-967-11 ELECT 47uF 20% 10V
C1856 1-126-967-11 ELECT 47uF 20% 50V
C1857 1-126-965-11 ELECT 22uF 20% 50V
C1861 1-130-493-00 MYLAR 0.068uF 5% 50V
C1862 1-130-493-00 MYLAR 0.068uF 5% 50V
C2001 1-117-691-11 ELECT 8200uF 20% 50V
C2002 1-117-691-11 ELECT 8200uF 20% 50V
C2003 1-136-165-00 FILM 0.1uF 5% 50V
C2004 1-136-165-00 FILM 0.1uF 5% 50V
C2005 1-126-963-11 ELECT 4.7uF 20% 50V
< CONNECTOR >
CN1801 1-778-981-11 CONNECTOR, BOARD TO BOARD 13P
* CN1803 1-564-508-11 PLUG, CONNECTOR 5P
CN1804 1-564-506-11 PLUG, CONNECTOR 3P
CN1805 1-564-505-11 PLUG, CONNECTOR 2P
< DIODE >
D1801 8-719-987-63 DIODE 1N4148M
D1811 8-719-987-63 DIODE 1N4148M
D1841 8-719-987-63 DIODE 1N4148M
D1842 8-719-987-63 DIODE 1N4148M
D1851 8-719-987-63 DIODE 1N4148M
D2001 8-719-060-53 DIODE RBV-2506
< IC >
IC1801 8-749-921-04 IC STK-4211MK-2
< TRANSISTOR >
Q1801 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q1851 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
< RESISTOR >
R1801 1-249-417-11 CARBON 1K 5% 1/4W F
R1802 1-249-438-11 CARBON 56K 5% 1/4W
R1803 1-249-415-11 CARBON 680 5% 1/4W F
R1804 1-249-438-11 CARBON 56K 5% 1/4W
R1805 1-260-107-11 CARBON 4.7K 5% 1/2W
R1806 1-260-107-11 CARBON 4.7K 5% 1/2W
! R1807 1-212-881-11 FUSIBLE 100 5% 1/4W F
! R1808 1-217-156-00 WIREWOUND 0.22 10% 5W F
R1809 1-260-076-11 CARBON 10 5% 1/2W
R1811 1-249-417-11 CARBON 1K 5% 1/4W F
R1812 1-249-431-11 CARBON 15K 5% 1/4W
R1813 1-249-441-11 CARBON 100K 5% 1/4W
R1814 1-260-105-11 CARBON 3.3K 5% 1/2W
R1816 1-260-105-11 CARBON 3.3K 5% 1/2W
! R1820 1-202-972-61 FUSIBLE 1 5% 1/4W F
R1841 1-249-429-11 CARBON 10K 5% 1/4W
R1842 1-247-887-00 CARBON 220K 5% 1/4W
R1843 1-249-421-11 CARBON 2.2K 5% 1/4W F
R1844 1-249-429-11 CARBON 10K 5% 1/4W
R1851 1-249-417-11 CARBON 1K 5% 1/4W F
R1852 1-249-438-11 CARBON 56K 5% 1/4W
R1853 1-249-415-11 CARBON 680 5% 1/4W F
R1854 1-249-438-11 CARBON 56K 5% 1/4W
R1855 1-260-107-11 CARBON 4.7K 5% 1/2W
R1856 1-260-107-11 CARBON 4.7K 5% 1/2W
! R1857 1-212-881-11 FUSIBLE 100 5% 1/4W F
! R1858 1-217-156-00 WIREWOUND 0.22 10% 5W F
R1859 1-260-076-11 CARBON 10 5% 1/2W
R1861 1-249-417-11 CARBON 1K 5% 1/4W F
R1862 1-249-431-11 CARBON 15K 5% 1/4W
R1863 1-249-441-11 CARBON 100K 5% 1/4W
R2001 1-249-438-11 CARBON 56K 5% 1/4W
************************************************************
* A-4403-334-A POWER (R) BOARD, COMPLETE
*************************
< CAPACITOR >
C1901 1-126-963-11 ELECT 4.7uF 20% 50V
C1902 1-162-286-31 CERAMIC 220PF 10% 50V
C1903 1-162-282-31 CERAMIC 100PF 10% 50V
C1904 1-126-967-11 ELECT 47uF 20% 10V
C1905 1-126-965-11 ELECT 22uF 20% 50V
C1906 1-126-967-11 ELECT 47uF 20% 50V
C1908 1-126-965-11 ELECT 22uF 20% 50V
C1909 1-130-493-00 MYLAR 0.068uF 5% 50V
C1910 1-130-493-00 MYLAR 0.068uF 5% 50V
C1911 1-130-493-00 MYLAR 0.068uF 5% 50V
C1912 1-130-493-00 MYLAR 0.068uF 5% 50V
C1913 1-164-159-11 CERAMIC 0.1uF 50V
C1914 1-162-282-31 CERAMIC 100PF 10% 50V
C1915 1-126-963-11 ELECT 4.7uF 20% 50V
C1916 1-126-967-11 ELECT 47uF 20% 50V
C1917 1-162-286-31 CERAMIC 220PF 10% 50V
C1918 1-126-925-11 ELECT 470uF 20% 10V
C1919 1-126-965-11 ELECT 22uF 20% 50V
C1921 1-126-967-11 ELECT 47uF 20% 10V
C1934 1-126-963-11 ELECT 4.7uF 20% 50V
< DIODE >
D1901 8-719-987-63 DIODE 1N4148M
D1902 8-719-987-63 DIODE 1N4148M
D1903 8-719-987-63 DIODE 1N4148M
D1904 8-719-987-63 DIODE 1N4148M
D1905 8-719-987-63 DIODE 1N4148M
POWER (L) POWER (R)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
To Next Page
