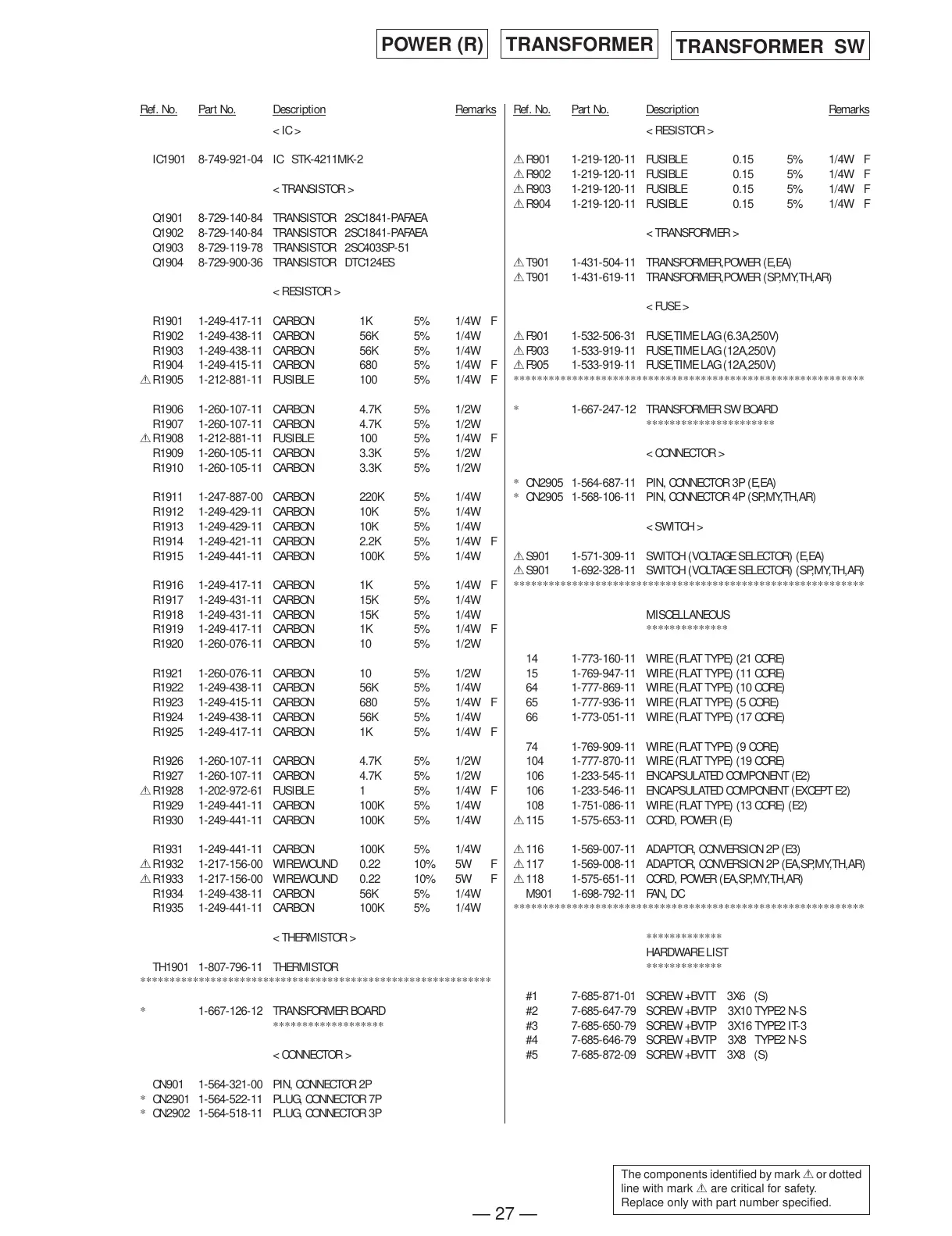

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 27 —
< IC >
IC1901 8-749-921-04 IC STK-4211MK-2
< TRANSISTOR >
Q1901 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q1902 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q1903 8-729-119-78 TRANSISTOR 2SC403SP-51
Q1904 8-729-900-36 TRANSISTOR DTC124ES
< RESISTOR >
R1901 1-249-417-11 CARBON 1K 5% 1/4W F
R1902 1-249-438-11 CARBON 56K 5% 1/4W
R1903 1-249-438-11 CARBON 56K 5% 1/4W
R1904 1-249-415-11 CARBON 680 5% 1/4W F
! R1905 1-212-881-11 FUSIBLE 100 5% 1/4W F
R1906 1-260-107-11 CARBON 4.7K 5% 1/2W
R1907 1-260-107-11 CARBON 4.7K 5% 1/2W
! R1908 1-212-881-11 FUSIBLE 100 5% 1/4W F
R1909 1-260-105-11 CARBON 3.3K 5% 1/2W
R1910 1-260-105-11 CARBON 3.3K 5% 1/2W
R1911 1-247-887-00 CARBON 220K 5% 1/4W
R1912 1-249-429-11 CARBON 10K 5% 1/4W
R1913 1-249-429-11 CARBON 10K 5% 1/4W
R1914 1-249-421-11 CARBON 2.2K 5% 1/4W F
R1915 1-249-441-11 CARBON 100K 5% 1/4W
R1916 1-249-417-11 CARBON 1K 5% 1/4W F
R1917 1-249-431-11 CARBON 15K 5% 1/4W
R1918 1-249-431-11 CARBON 15K 5% 1/4W
R1919 1-249-417-11 CARBON 1K 5% 1/4W F
R1920 1-260-076-11 CARBON 10 5% 1/2W
R1921 1-260-076-11 CARBON 10 5% 1/2W
R1922 1-249-438-11 CARBON 56K 5% 1/4W
R1923 1-249-415-11 CARBON 680 5% 1/4W F
R1924 1-249-438-11 CARBON 56K 5% 1/4W
R1925 1-249-417-11 CARBON 1K 5% 1/4W F
R1926 1-260-107-11 CARBON 4.7K 5% 1/2W
R1927 1-260-107-11 CARBON 4.7K 5% 1/2W
! R1928 1-202-972-61 FUSIBLE 1 5% 1/4W F
R1929 1-249-441-11 CARBON 100K 5% 1/4W
R1930 1-249-441-11 CARBON 100K 5% 1/4W
R1931 1-249-441-11 CARBON 100K 5% 1/4W
! R1932 1-217-156-00 WIREWOUND 0.22 10% 5W F
! R1933 1-217-156-00 WIREWOUND 0.22 10% 5W F
R1934 1-249-438-11 CARBON 56K 5% 1/4W
R1935 1-249-441-11 CARBON 100K 5% 1/4W
< THERMISTOR >
TH1901 1-807-796-11 THERMISTOR
************************************************************
* 1-667-126-12 TRANSFORMER BOARD
*******************
< CONNECTOR >
CN901 1-564-321-00 PIN, CONNECTOR 2P
* CN2901 1-564-522-11 PLUG, CONNECTOR 7P
* CN2902 1-564-518-11 PLUG, CONNECTOR 3P
< RESISTOR >
! R901 1-219-120-11 FUSIBLE 0.15 5% 1/4W F
! R902 1-219-120-11 FUSIBLE 0.15 5% 1/4W F
! R903 1-219-120-11 FUSIBLE 0.15 5% 1/4W F
! R904 1-219-120-11 FUSIBLE 0.15 5% 1/4W F
< TRANSFORMER >
! T901 1-431-504-11 TRANSFORMER,POWER (E,EA)
! T901 1-431-619-11 TRANSFORMER,POWER (SP,MY,TH,AR)
< FUSE >
! F901 1-532-506-31 FUSE,TIME LAG (6.3A,250V)
! F903 1-533-919-11 FUSE,TIME LAG (12A,250V)
! F905 1-533-919-11 FUSE,TIME LAG (12A,250V)
************************************************************
* 1-667-247-12 TRANSFORMER SW BOARD
**********************
< CONNECTOR >
* CN2905 1-564-687-11 PIN, CONNECTOR 3P (E,EA)
* CN2905 1-568-106-11 PIN, CONNECTOR 4P (SP,MY,TH,AR)
< SWITCH >
! S901 1-571-309-11 SWITCH (VOLTAGE SELECTOR) (E,EA)
! S901 1-692-328-11 SWITCH (VOLTAGE SELECTOR) (SP,MY,TH,AR)
************************************************************
MISCELLANEOUS
**************
14 1-773-160-11 WIRE (FLAT TYPE) (21 CORE)
15 1-769-947-11 WIRE (FLAT TYPE) (11 CORE)
64 1-777-869-11 WIRE (FLAT TYPE) (10 CORE)
65 1-777-936-11 WIRE (FLAT TYPE) (5 CORE)
66 1-773-051-11 WIRE (FLAT TYPE) (17 CORE)
74 1-769-909-11 WIRE (FLAT TYPE) (9 CORE)
104 1-777-870-11 WIRE (FLAT TYPE) (19 CORE)
106 1-233-545-11 ENCAPSULATED COMPONENT (E2)
106 1-233-546-11 ENCAPSULATED COMPONENT (EXCEPT E2)
108 1-751-086-11 WIRE (FLAT TYPE) (13 CORE) (E2)
! 115 1-575-653-11 CORD, POWER (E)
! 116 1-569-007-11 ADAPTOR, CONVERSION 2P (E3)
! 117 1-569-008-11 ADAPTOR, CONVERSION 2P (EA,SP,MY,TH,AR)
! 118 1-575-651-11 CORD, POWER (EA,SP,MY,TH,AR)
M901 1-698-792-11 FAN, DC
************************************************************
*************
HARDWARE LIST
*************
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#5 7-685-872-09 SCREW +BVTT 3X8 (S)
POWER (R) TRANSFORMER
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
TRANSFORMER SW
