Sony HCD-GRX50 - Exploded Views - Front Panel

– 74 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

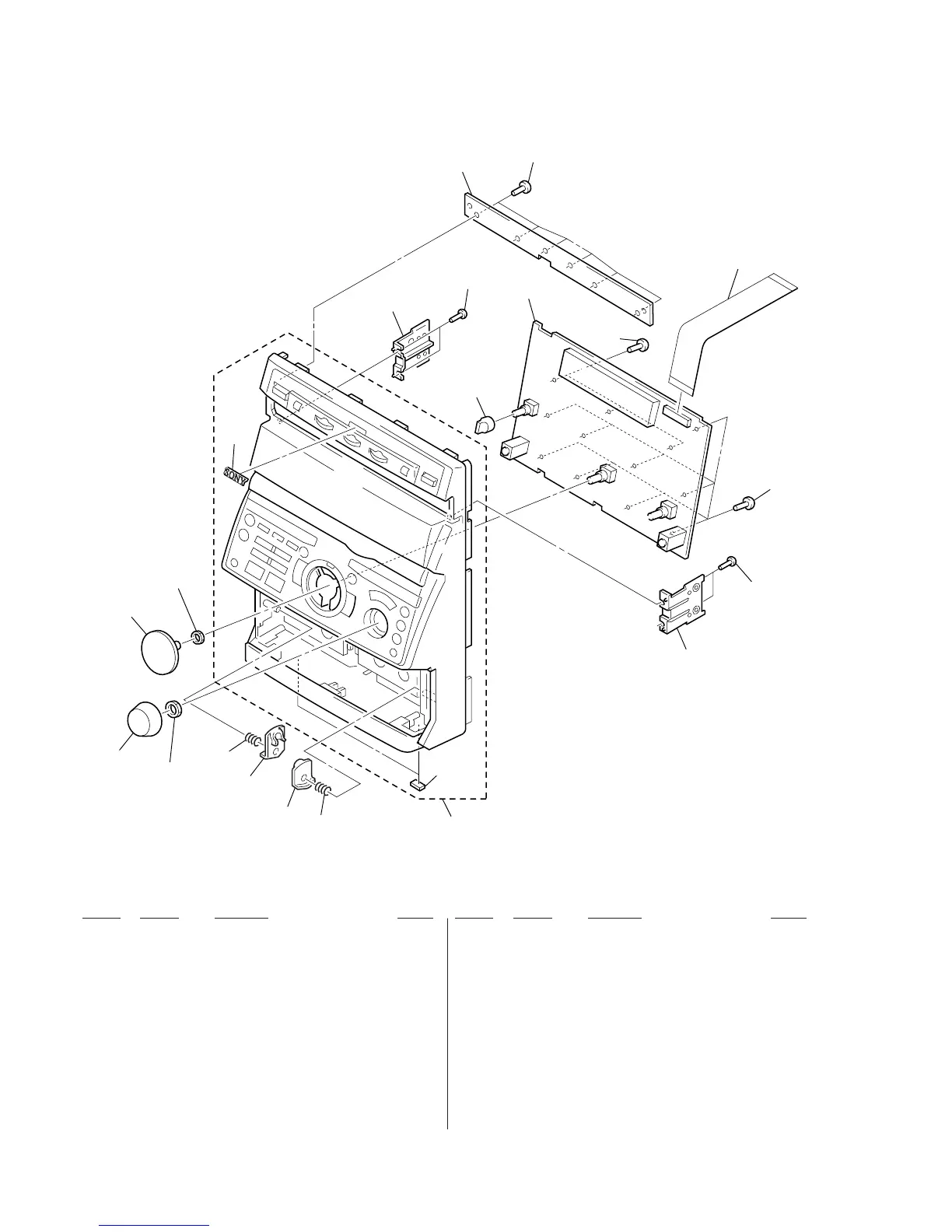

(2) FRONT PANEL SECTION
51 X-4950-822-1 PANEL ASSY, FRONT (SILVER) (GRX50)
51 X-4950-823-1 PANEL ASSY, FRONT (RXD7: AEP)
51 X-4950-938-1 PANEL ASSY, FRONT (RXD7: CND)
51 X-4950-982-1 PANEL ASSY, FRONT (R770)
51 X-4951-448-1 PANEL ASSY, FRONT (GLAY) (GRX50: E3)
51 X-4951-449-1 PANEL ASSY, FRONT (GLAY) (GRX50: EA3)
52 4-930-336-61 FOOT (FELT)
53 4-962-708-71 EMBLEM (4-A), SONY
54 4-214-775-11 SPRING, PUSH CATCHER RETURN
55 4-214-761-11 CATCHER (B), PUSH
56 4-214-760-11 CATCHER (A), PUSH
57 4-214-384-11 KNOB (VOL) (GRX50/RXD7)
57 4-214-384-51 KNOB (VOL) (R770)
58 4-214-383-11 KNOB (JOG) (GRX50/RXD7)
58 4-214-383-51 KNOB (JOG) (R770)
* 59 4-996-716-01 HOLDER (CDM)
60 4-951-620-01 SCREW (2.6X8), +BVTP
61 4-214-385-11 KNOB (MIC) (GRX50/RXD7)
61 4-214-385-51 KNOB (MIC) (R770)
* 62 A-4417-722-A PANEL BOARD, COMPLETE
(EXCEPT GRX50: EA3)
* 62 A-4419-727-A PANEL BOARD, COMPLETE (GRX50: EA3)
* 63 A-4417-727-A CD SW BOARD, COMPLETE
64 1-773-188-11 WIRE (FLAT TYPE) (23 CORE)
