– 75 – – 76 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-965-822-01 FOOT
* 102 1-672-369-11 TRANS BOARD
* 103 3-703-244-00 BUSHING (2104), CORD
(EXCEPT GRX50: E2, E3, TH, MX)
103 3-703-571-11 BUSHING (S) (4516), CORD
(GRX50: E2, E3, TH, MX)
104 1-773-042-11 WIRE (FLAT TYPE) (17 CORE)
105 1-773-024-11 WIRE (FLAT TYPE) (15 CORE)
106 1-783-570-11 WIRE (FLAT TYPE) (19 CORE)
* 107 A-4417-714-A MAIN BOARD, COMPLETE
(GRX50: E2, MX, AR)
* 107 A-4417-718-A MAIN BOARD, COMPLETE (RXD7: CND)
* 107 A-4417-732-A MAIN BOARD, COMPLETE
(GRX50: E3, SP, TW)
* 107 A-4417-868-A MAIN BOARD, COMPLETE (R770/RXD7: AEP)
* 107 A-4419-729-A MAIN BOARD, COMPLETE (GRX50: EA3)
* 107 A-4419-821-A MAIN BOARD, COMPLETE
(GRX50: EA4, TH, KR, AUS)
* 108 4-214-442-01 PANEL, BACK (GRX50: AR)
* 108 4-214-442-61 PANEL, BACK (GRX50: EA4, TH)
* 108 4-215-168-01 PANEL, BACK (GRX50: E2)
* 108 4-215-168-11 PANEL, BACK (RXD7: CND)
* 108 4-215-168-21 PANEL, BACK (R770: AEP, UK, G, AED)
* 108 4-215-168-31 PANEL, BACK (RXD7: AEP, CIS)
* 108 4-215-168-41 PANEL, BACK (R770: CIS)
* 108 4-215-168-51 PANEL, BACK (RXD7: G, AED)
* 108 4-215-168-61 PANEL, BACK (GRX50: E3)
* 108 4-215-168-71 PANEL, BACK (GRX50: EA3)
* 108 4-215-168-81 PANEL, BACK (GRX50: SP)
* 108 4-215-168-91 PANEL, BACK (GRX50: MX)
* 108 4-220-083-01 PANEL, BACK (GRX50: AUS)
* 108 4-220-083-11 PANEL, BACK (GRX50: TW)
* 108 4-220-083-21 PANEL, BACK (GRX50: KR)
109 1-769-977-11 WIRE (FLAT TYPE) (13 CORE)
(GRX50: EXCEPT SP, TW/RXD7: CND)
109 1-773-009-11 WIRE (FLAT TYPE) (15 CORE)
(GRX50: SP, TW/R770/RXD7: AEP)
110 1-233-544-14 TUNER PACK (RXD7: CND)
110 1-233-545-11 TUNER (FM/AM)
(GRX50: EA4, TH, AR, KR, AUS)
110 1-233-545-14 TUNER PACK (GRX50: E2, MX)
110 1-233-546-11 TUNER (FM/MW/SW)
(GRX50: E3, EA3, SP, TW)
110 1-693-443-11 TUNER (FM/AM) (R770: AEP/RXD7: AEP, UK)
! 111 1-575-651-11 CORD, POWER (R770: AEP/RXD7: AEP, UK/
GRX50: EA3, EA4, SP, TW, AR)
! 111 1-575-653-11 CORD, POWER (GRX50: E2, E3, TH, MX)
! 111 1-690-608-11 CORD, POWER (GRX50: AUS)
! 111 1-690-609-21 CORD, POWER (RXD7: CND)
! 111 1-769-079-21 CORD, POWER (GRX50: KR)
! 112 1-569-007-11 ADAPTOR, CONVERSION 2P (GRX50: E3)
! 112 1-569-008-21 ADAPTOR, CONVERSION 2P
(GRX50: EA3, SP, TW)
* 113 A-4417-729-A SUB TRANS BOARD, COMPLETE (RXD7: CND)
* 113 A-4419-030-A SUB TRANS BOARD, COMPLETE
(R770/RXD7: AEP)
114 4-812-134-11 RIVET (DIA. 3.5), NYLON (R770/RXD7: AEP)
M501 1-698-792-11 FAN, DC (EXCEPT RXD7: CND)
! T11 1-433-587-11 TRANSFORMER, POWER (RXD7: CND)
! T11 1-433-588-11 TRANSFORMER, POWER (R770/RXD7: AEP)
! T951 1-433-563-11 TRANSFORMER, POWER (RXD7: CND)
! T951 1-433-564-11 TRANSFORMER, POWER (R770/RXD7: AEP)
! T951 1-433-565-11 TRANSFORMER, POWER (GRX50)

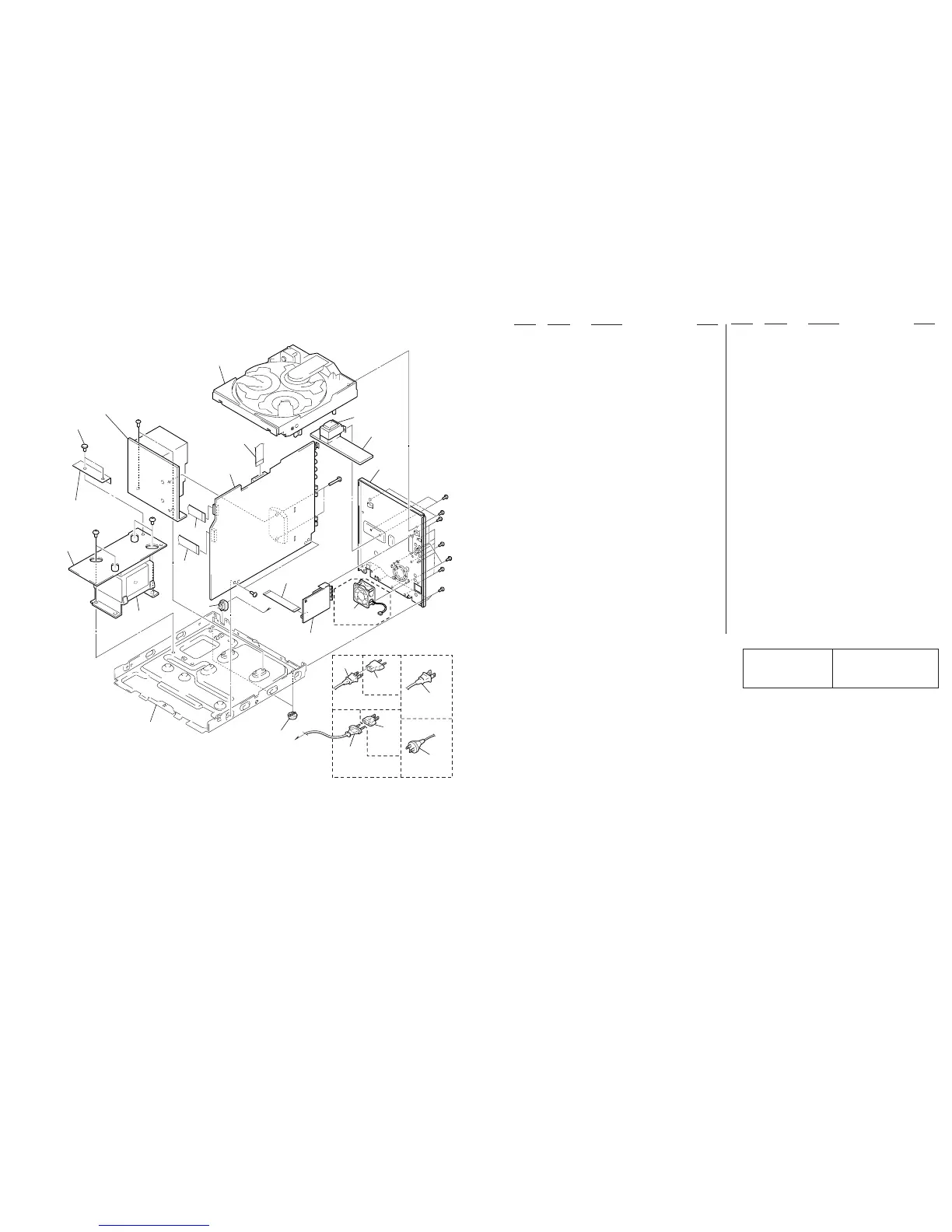

(3) CHASSIS SECTION
111
111
112
EA3, SP,
TW
AUS
CND
EXCEPT CND
E2, E3, TH, MX
E3
AEP, UK, EA3, EA4,
SP, TW, AR, KR
101
111
111
112
110
102
114
104
105
107
not supplied
T951
#10
#10
#9
#2
#2
#2
#3
#
2
#2
#2
M501
#2
#2
CDM38LH-5BD32L
not supplied
not supplied
109
103
108
113
106
T11
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
