Sony HCD-GTR77 - 7-3. LOADING PANEL SECTION, HUB BOARD SECTION, DMB19 BOARD SECTION

51
HCD-GTR33/GTR55/GTR77

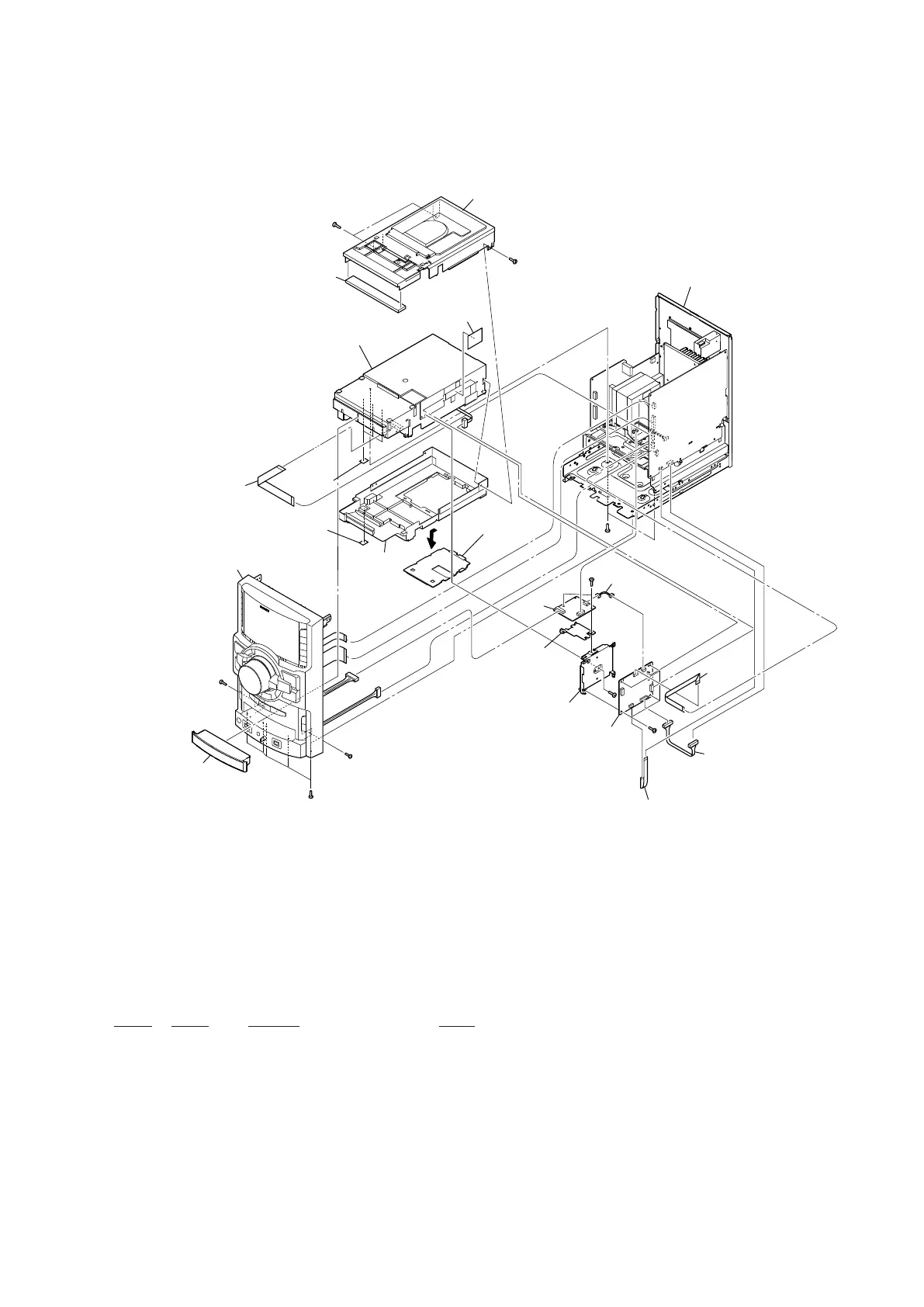

7-3. LOADING PANEL SECTION, HUB BOARD SECTION, DMB19 BOARD SECTION
101 4-164-371-11 PANEL, LOADING
102 A-1745-142-A DMB19 BOARD, COMPLETE
103 1-828-311-51 WIRE (FLAT TYPE) (9 CORE)
104 1-836-973-11 WIRE (FLAT TYPE) (7 CORE)
105 1-828-975-11 WIRE (FLAT TYPE) (13 CORE)
106 3-831-441-11 CUSHION, SARANET
107 A-1750-170-A HUB BOARD, COMPLETE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark
DISPLAY board section
back panel section
#3
#1
#3
101
105
not
supplied
not supplied
CD mechanism section
(CDM88BL-DVBU101)
#3
#3
not supplied
#3
#1
not supplied
#1
#1
not
supplied
not
supplied
106
107
104
102
103
not supplied
not supplied
not supplied
not supplied
