HCD-GTR33/GTR55/GTR77
9

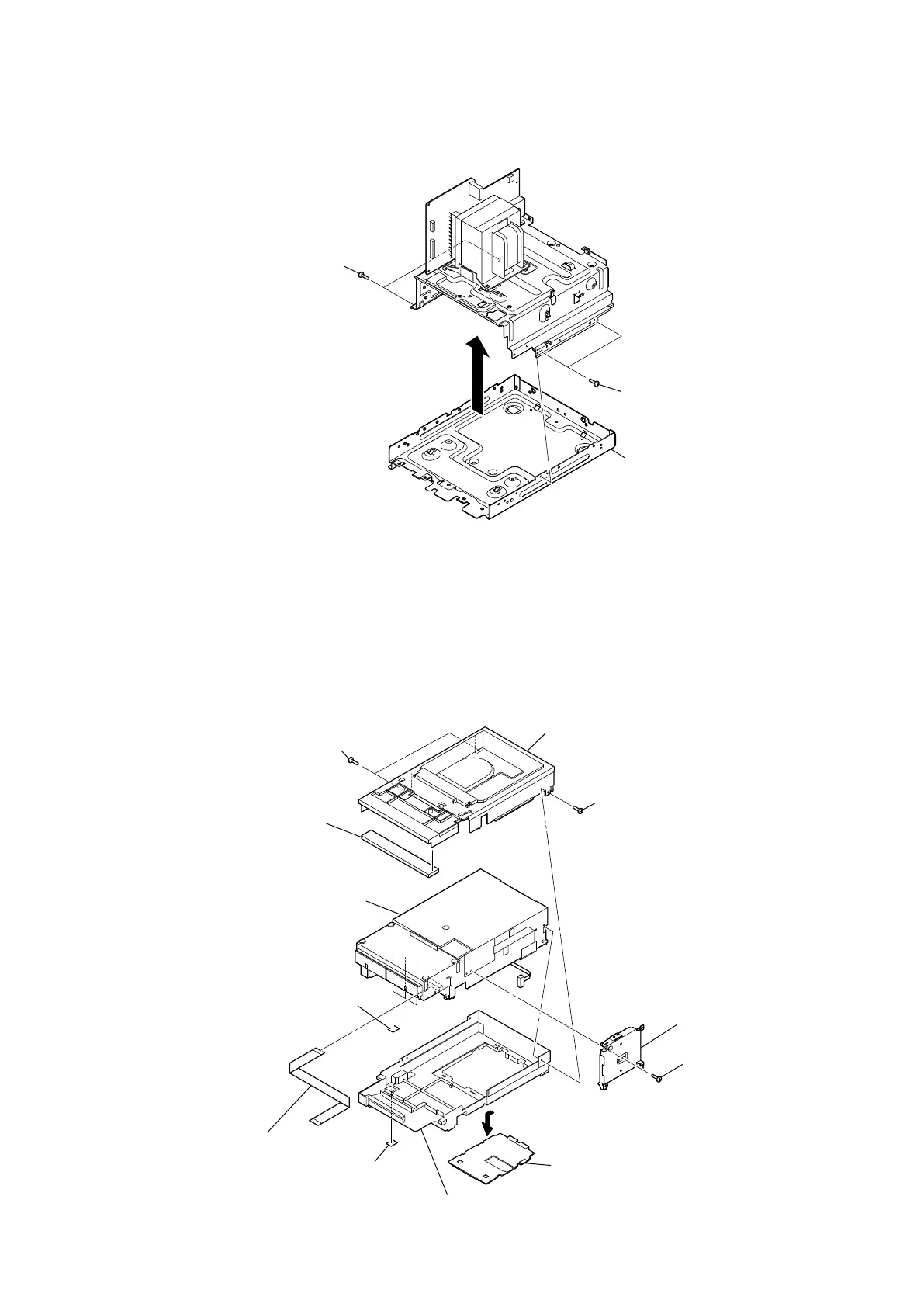

2-9. CHASSIS SECTION
2-10. CD MECHANISM BLOCK (CDM88BL-DVBU101)
1 two screws
(BVTP3 u8)
1 two screws
(BVTP3 u8)
3 chassis block
2
qa sheets (CDM)
8 one screw
(BVTP3 u 10)
6 cover dust (CDM88-A-BTM)
5 cover (shutter)
1 wire (flat type) (13 core)
(MOTOR board)
7 three sheets (CDM)
q; CD mechanism block
(CDM88BL-DVBU101)
8 two screws
(BVTP3 u10)
9 cover dust (CDM88-A-top)
qs cushion DVD
2 one screw
(BVTP3 u8)
3 bracket
(MTK)
