Sony HCD-GTR77 - MAIN Board; POWER Board

HCD-GTR33/GTR55/GTR77
8

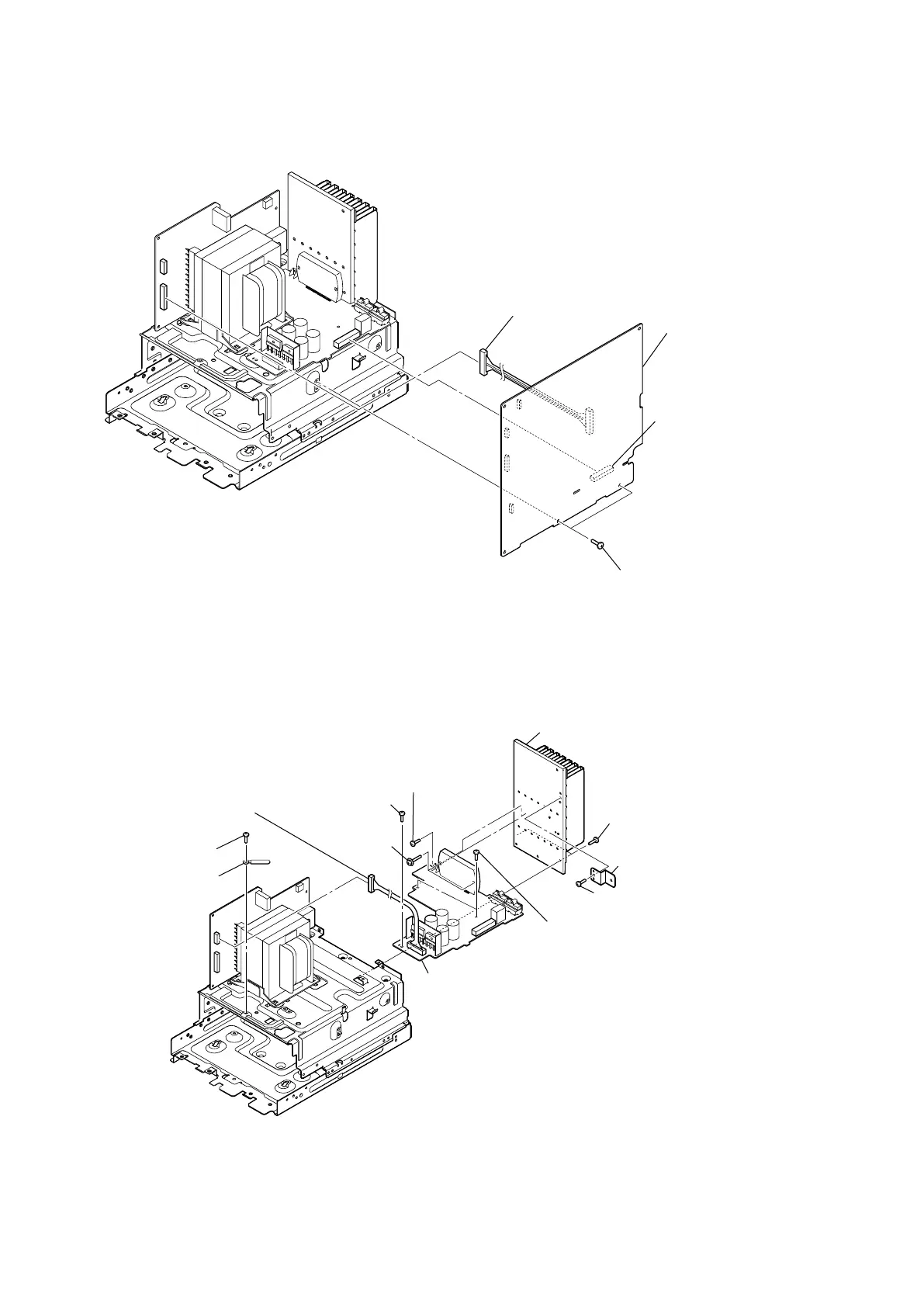

2-7. MAIN BOARD
2-8. POWER BOARD
2 CN907 (11P)
4 MAIN board
3 CN479 (13P)
1 two screws
(BVTP3 u 8)
q; heat sink
3 two screws
(BVTP3 u 10)
9 two screws
(BVTP3 u 8)
8 POWER board
5 CN908 (7P)
(for HCD-GTR55/GTR77 only)
CN909 (5P)
(for HCD-GTR33 only)
4 two screws
(transistor)
1 one screw
(BVTP3 u 8)
2 clamp
qa one screw
(BVTP3 u 8)
qs bracket (HS Support)
6 one screw
(BVTP3 u 8)
7 one screw
(BVTP3 u 8)
