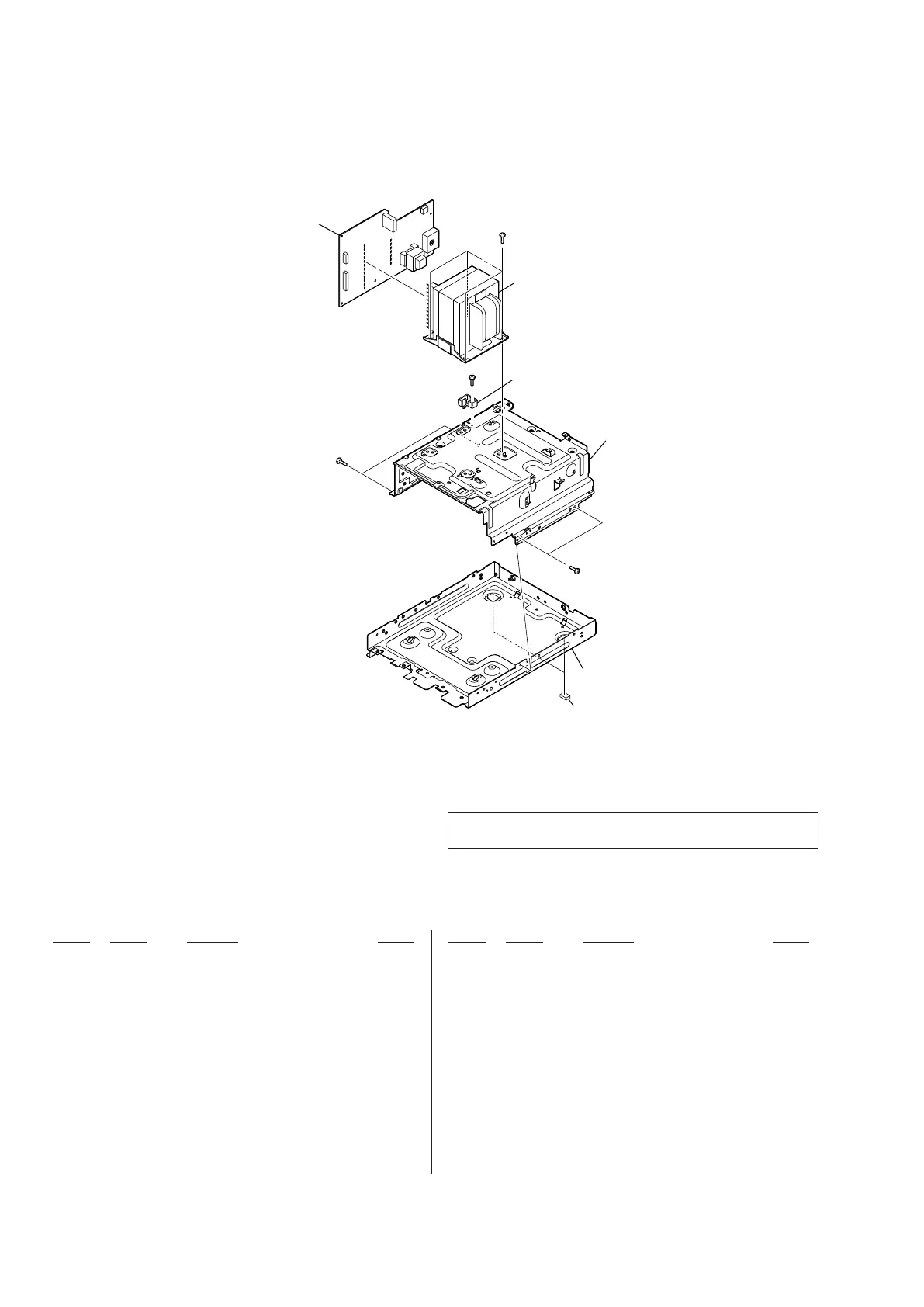

7-8. CHASSIS SECTION
351 4-225-252-01 CUSHION (FOOT)
0 PT901 1-445-827-11 POWER TRANSFORMER (MAIN) (GTR33: MX)
0 PT901 1-445-828-11 POWER TRANSFORMER (MAIN) (GTR33:E4)
0 PT901 1-445-829-11 POWER TRANSFORMER (MAIN)
(GTR33:E2, E51, AR)
0 PT901 1-445-830-11 POWER TRANSFORMER (MAIN) (GTR77:MX)
0 PT901 1-445-831-11 POWER TRANSFORMER (MAIN) (GTR77:E4)
0 PT901 1-445-832-11 POWER TRANSFORMER (MAIN)
(GTR77:E2, E5, AR)
0 PT901 1-445-834-11 POWER TRANSFORMER (MAIN) (GTR55: MX)
0 PT901 1-445-835-11 POWER TRANSFORMER (MAIN)
(GTR55: E2, E51, AR)
0 PT901 1-445-836-11 POWER TRANSFORMER (MAIN) (GTR55:E4)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-685-880-09 SCREW +BVTT 4X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
#1
#1
not supplied
(TRANS board)
#6
PT901
not supplied
not supplie
d
not supplied
#1
351
