HCD-GTR88
4
HOW TO DISTINGUISH TAPE MECHANISM DECK
Two kinds of tape mechanism decks installed by this set exist.
Please do the repair exchange after con
fi
rming which tape mechanism deck set of the repair according to how to distinguish the
fi
gure below.
Tape Deck Name Tape Deck Part No. Belt Part No.
CS-21SC-900TP 1-797-575-11
2-688-621-01 BELT (R/F)
2-688-622-01 BELT (MAIN)
motor
Mold part: CS-21SC-900TP
tape deck

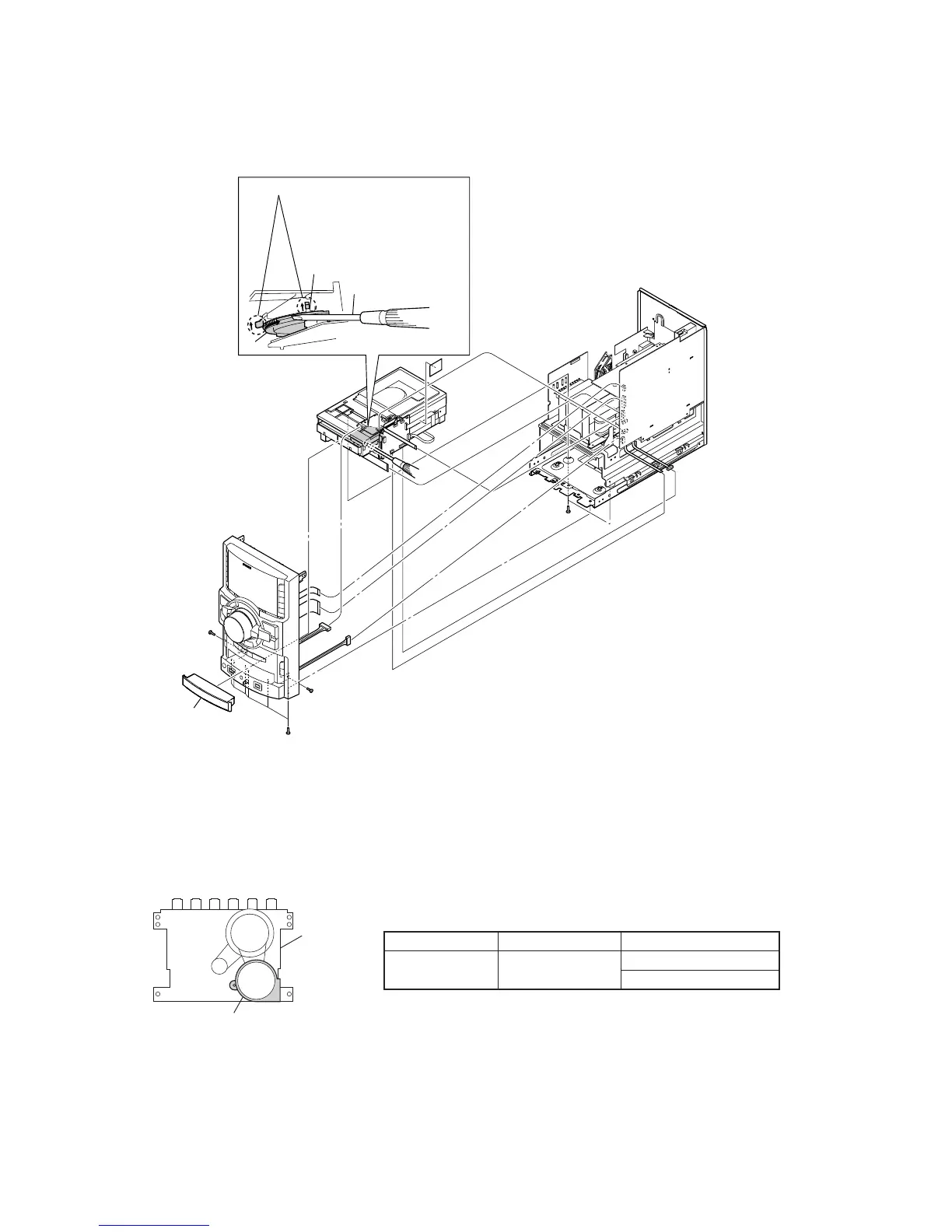

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
Step:
1) Work after removing the case (side-R and side-L) referring to “2.2. CASE (SIDE-L/R)” on disassembly (page 6).
2) Work after removing the top case referring to “2-3. TOP CASE” on disassembly (page 6).
lever
state of opening the CD tray
gear
d
Turn a gear by
a driver till a lever
rises up to the
position of the figure.
(Try to push gear at the
same time slowly pull
Front panel away.)
a
c
c
b
e
To Next Page
