Sony HCD-GTR88 - Top Panel Section

54
HCD-GTR88

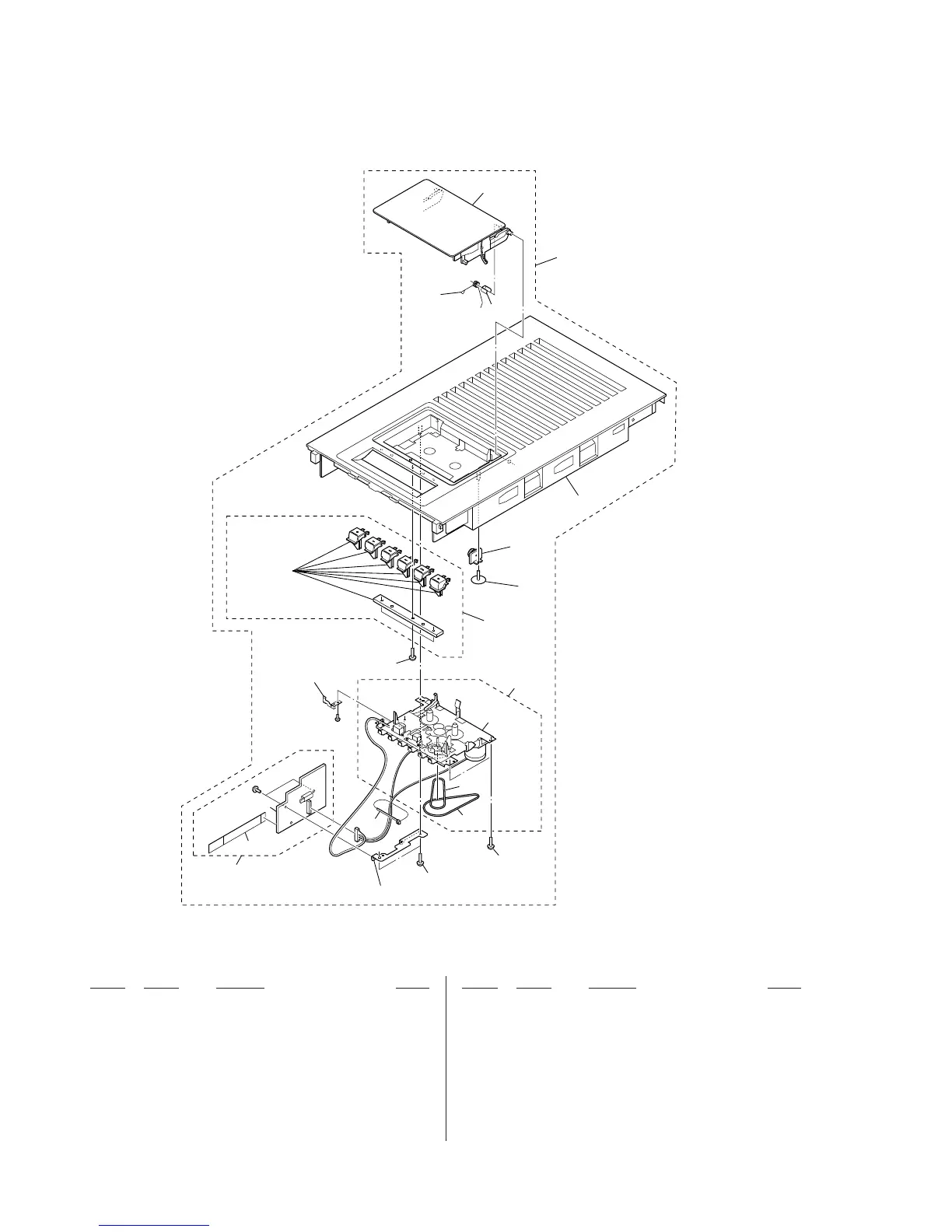

7-2. TOP PANEL SECTION
51 3-087-053-01 +BVTP 2.6 (3CR) (E4)
52 3-701-748-00 CLAMP (E4)
53 4-164-373-01 CASE, TOP (GVX7S) (EXCEPT E4)
54 3-047-468-01 DAMPER (E4)
55 2-649-132-21 BUTTON (CASS) (
z , B , m , M , xZ , X ) (E4)
56 3-917-753-41 CUSHION (SP) (E4)
57 2-688-621-01 BELT (R/F) (E4)
58 2-688-622-01 BELT (MAIN) (E4)
59 1-797-575-11 DECK, MECHANICAL (E4)
60 4-170-774-01 SPRING (CASS) (E4)
61 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING (E4)
62 X-2548-413-11 TOP CASE ASSY (GVX7S) (E4)
FFC502 1-828-958-11 WIRE (FLAT TYPE) (9 CORE)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 (E4)
#3 7-685-850-04 SCREW +BVTT 2X3 (S) (E4)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
not supplied
(TC board)
not supplied
not supplied
#3
TC board
FFC502
51
59
52
51
60
56
53
54
61
55
58
51
57
62
#2
