Sony HCD-GTR88 - MAIN Board Section

59
HCD-GTR88
301 A-1749-832-A MAIN BOARD, COMPLETE (E2, E51, MX, AR)
301 A-1753-801-A MAIN BOARD, COMPLETE (E4)
301 A-1769-607-A MAIN BOARD, COMPLETE (AUS)
* 302 3-703-150-11 CLAMP
0 M101 1-787-344-11 FAN, DC
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#6 3-905-609-31 SCREW (TRANSISTOR)
Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.

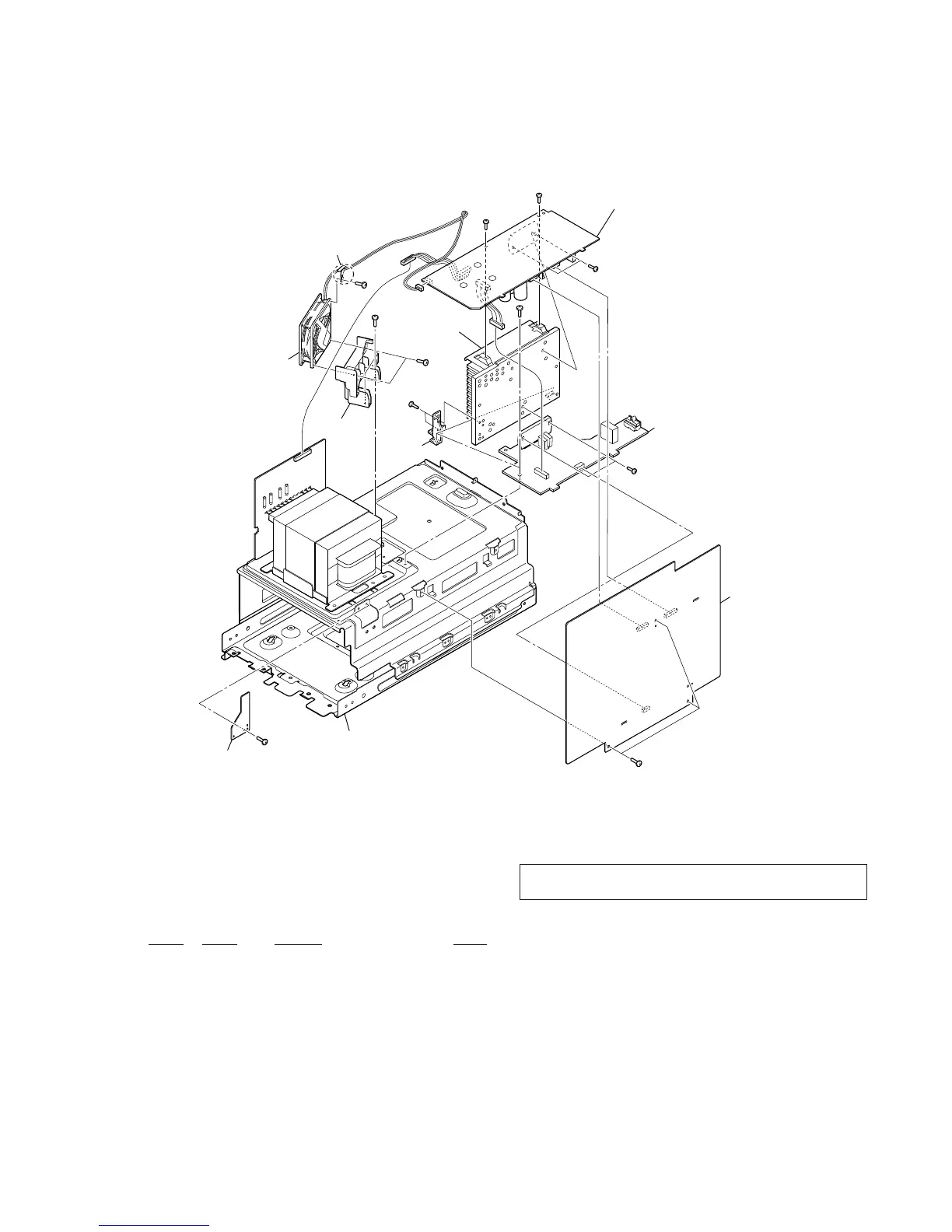

7-7. MAIN BOARD SECTION
chassis section
not supplied
not supplied
(SUBWOOFER board)
not supplied
(POWER AMP board (EXCEPT MX)
POWER7 AMP board (MX))
not supplied
M101
#6
#2
#6
#2
#2
#2
#2
#2
#2
#2
#2
not
supplied
301
not supplied
(PT SHIELD board)
302
