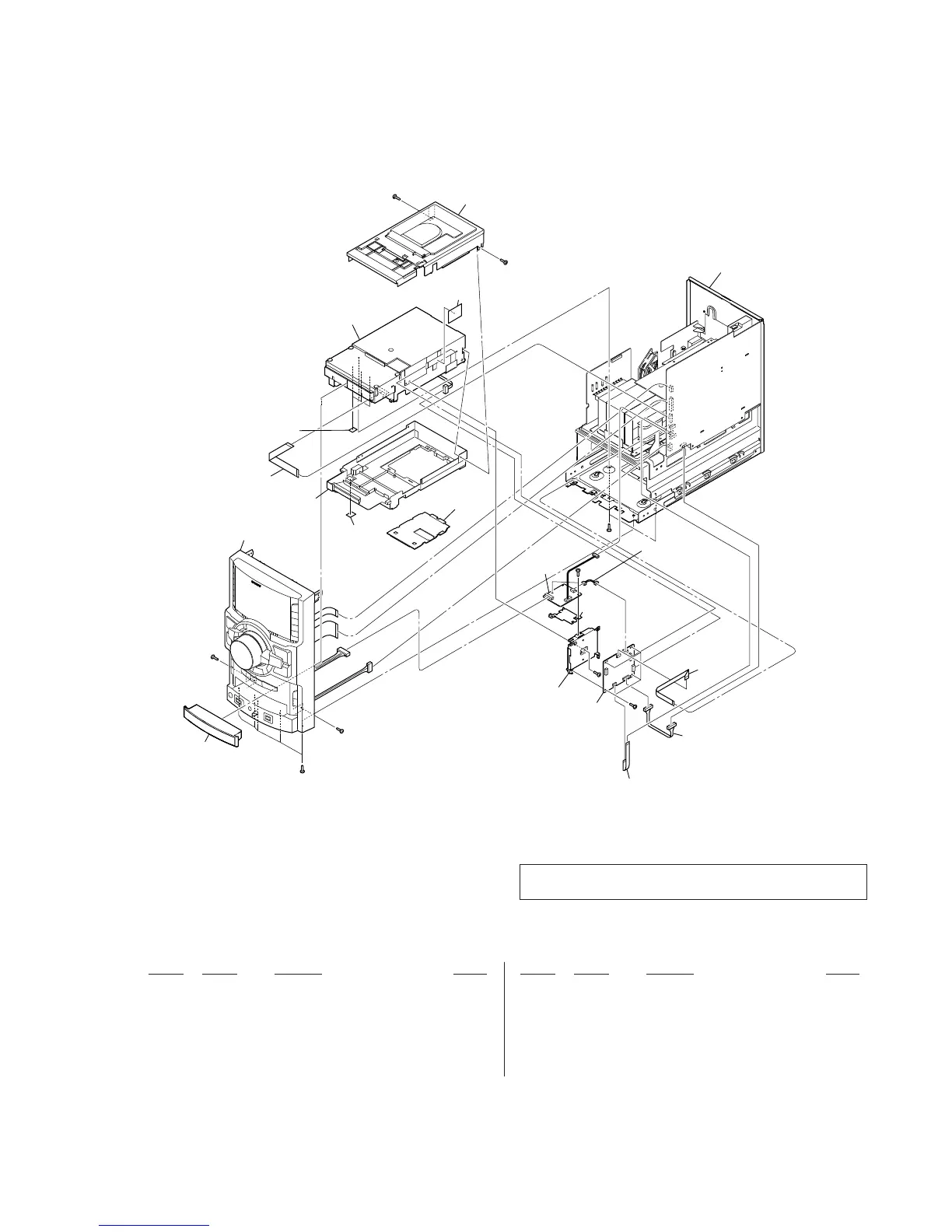

7-3. LOADING PANEL SECTION, HUB BOARD SECTION, DMB19 BOARD SECTION
101 4-164-371-31 PANEL, LOADING
102 A-1745-142-A DMB19 BOARD, COMPLETE
103 1-824-954-11 FLAT FLEXIBLE CABLE FM0-8
104 1-838-099-11 FLEXIBLE FLAT CABLE (7 CORE)
105 1-828-976-11 WIRE (FLAT TYPE) (13 CORE)
106 3-831-441-11 CUSHION, SARANET
107 A-1750-170-A HUB BOARD, COMPLETE
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
DISPLAY board section
#4
#2
#4
#4
back panel section
101
not supplied
CD mechanism section
(CDM88B-DVBU101)
#2
not supplied
#2
#2
not supplied
#2
#2
not supplied
not
supplied
106
105
107
104
102
103
not supplied
not supplied
not supplied
not supplied
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
