Sony HCD-GTR88 - Tape Mechanism Deck (for African Model Only); Front Panel Block, HUB Board, DMB19 Board

HCD-GTR88
7

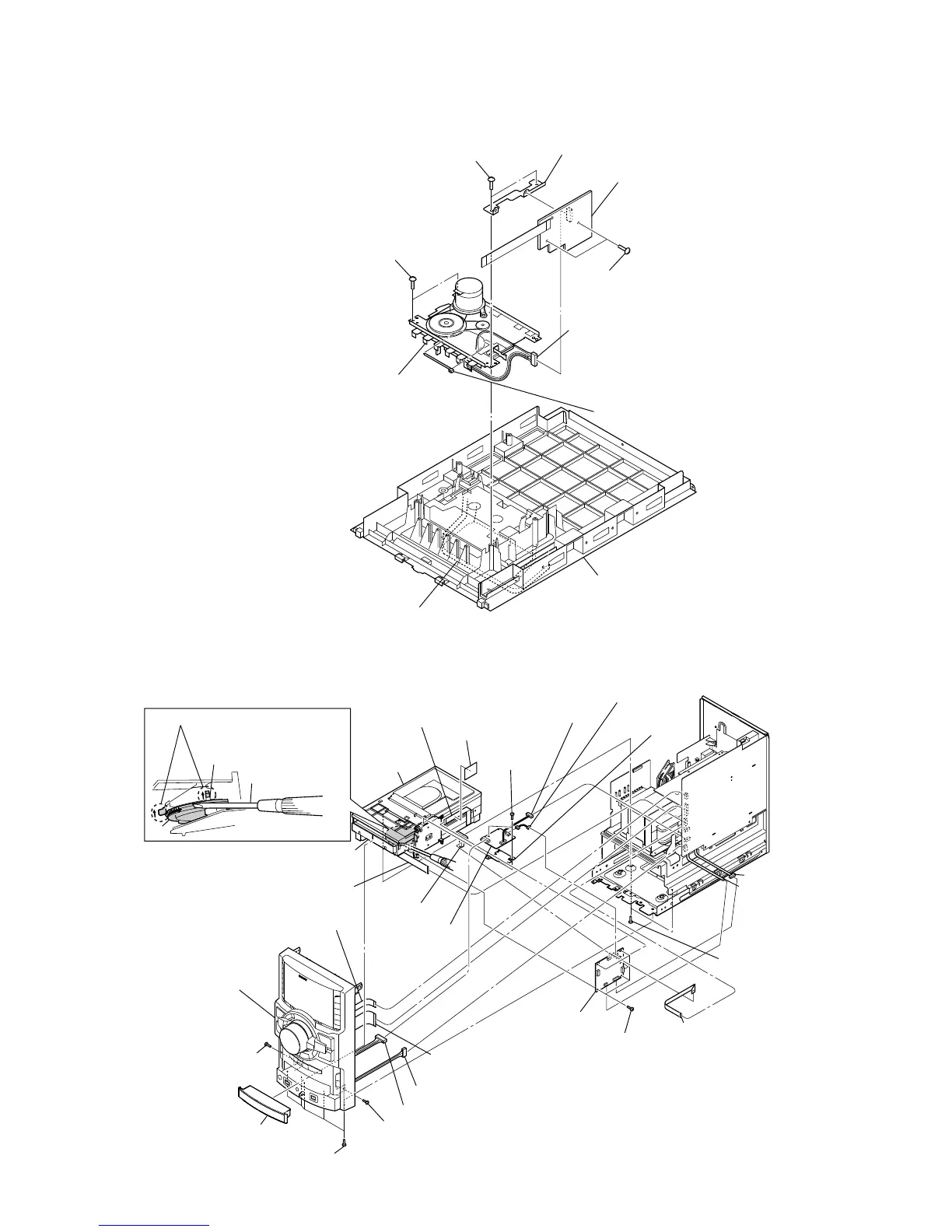

2-4. TAPE MECHANISM DECK (FOR AFRICAN MODEL ONLY)
2-5. FRONT PANEL BLOCK, HUB BOARD, DMB19 BOARD
6 bracket (deck)
5 two screws
(BVTP2.6 u8)
7 two screws
(BVTP2.6 u8)
9 tape mechanism deck
1 CN501 (8P)
3 two screws
(BVTP3 u 8)
2 Cut the clamp.
8 Open the cassette box.
4 TC board
top panel block
qd wire (flat type) (13 core)
(CN410)
lever
1 Turn a gear by
a driver till a lever
rises up to the
position of the figure.
state of opening the CD tray
gear
4 wire (flat type) (23 core)
(CN405)
8 one screw
(BVTP3 u 10)
q; front panel block
3 panel loading
9 five screws
(BVTP3 × 8)
8 one screw
(BVTP3 × 10)
7 CN1501 (10P)
6 CN470 (7P)
5 wire (flat type) (11 core)
(CN403)
qk DMB19 board: CN1105 (4P)/
HUB board: CN1500 (4P)
qg two screws
(BVTP3 u8)
qa CD block
qj HUB
board
wd two screws
(BVTP3 u10)
wg four screws
(BVTP3 u8)
wf wire (flat type) (9 core)
(CN1106)
wh DMB19 board
ql bracket
(ground hub)
qh CN201 (6P)
w; CN650 (8P)
qs wire (flat type) (24 core)
(CN101)
wa CN601 (9P)
ws wire (flat type) (7 core)
(CN4602)
qf saranet cushion
2 Pull the tray by hand.
