Sony HCD-GTR88 - DISPLAY Board Section

56
HCD-GTR88
151 4-164-361-11 KNOB (VOLUME)
152 4-164-363-11 KNOB (JOG)
153 3-087-053-01 +BVTP 2.6 (3CR)
154 A-1745-602-A METER DISPLAY ASSY (GVX)
155 1-829-023-11 WIRE (FLAT TYPE) (23 CORE)
156 1-823-669-11 WIRE (FLAT TYPE) (11 CORE)
157 X-2541-975-2 HOLDER (JOG) ASSY
S1301 1-487-171-11 ROTARY ENCODER
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

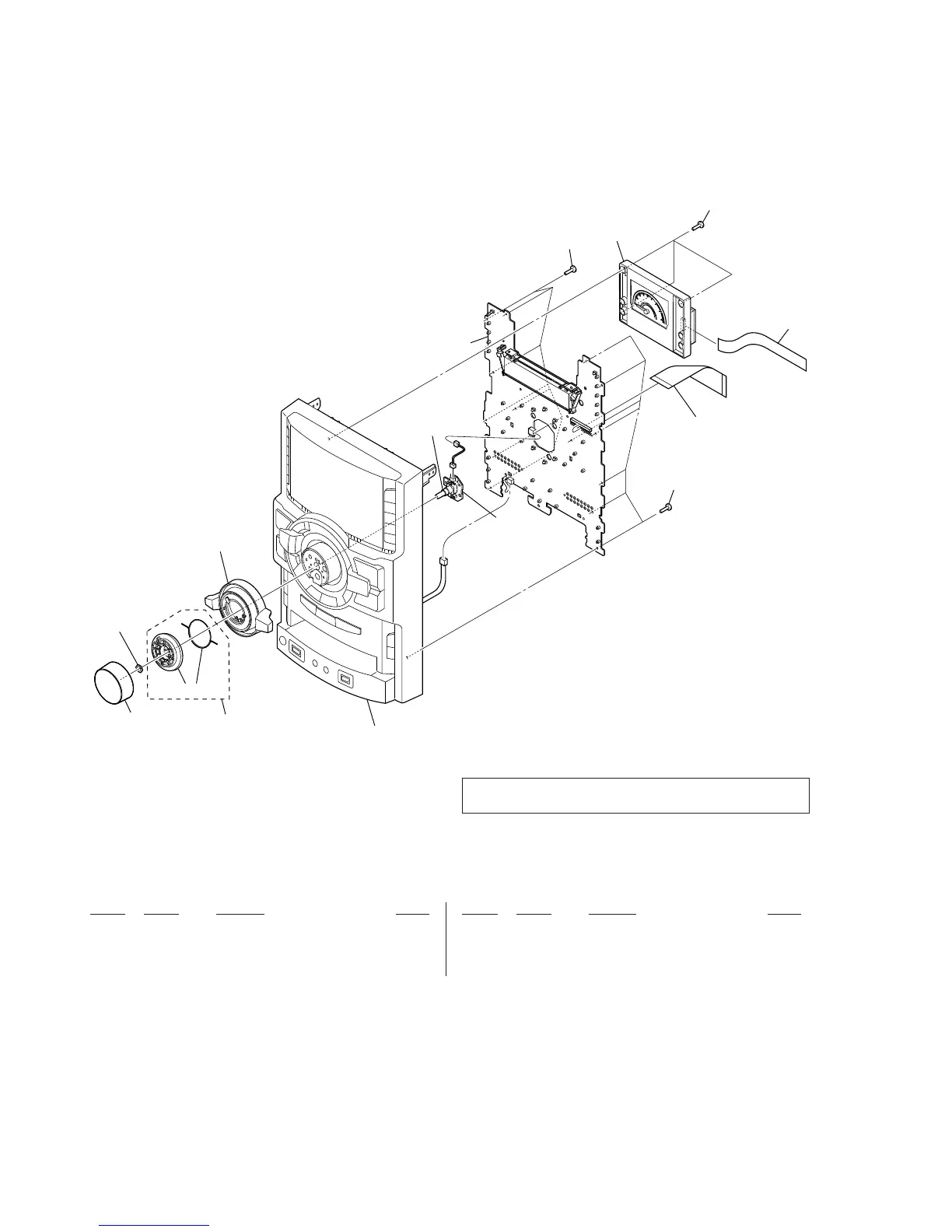

7-4. DISPLAY BOARD SECTION
not supplied
(VOL board)
not supplied
not supplied
(DISPLAY board)
S1301
front panel section
supplied with
S1301
151
157
152
153
155
156
153
154
153
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
