Sony HCD-GTR88 - MAIN Board; DC Fan (M101), PT SHIELD Board, POWER AMP Board Section

HCD-GTR88
9

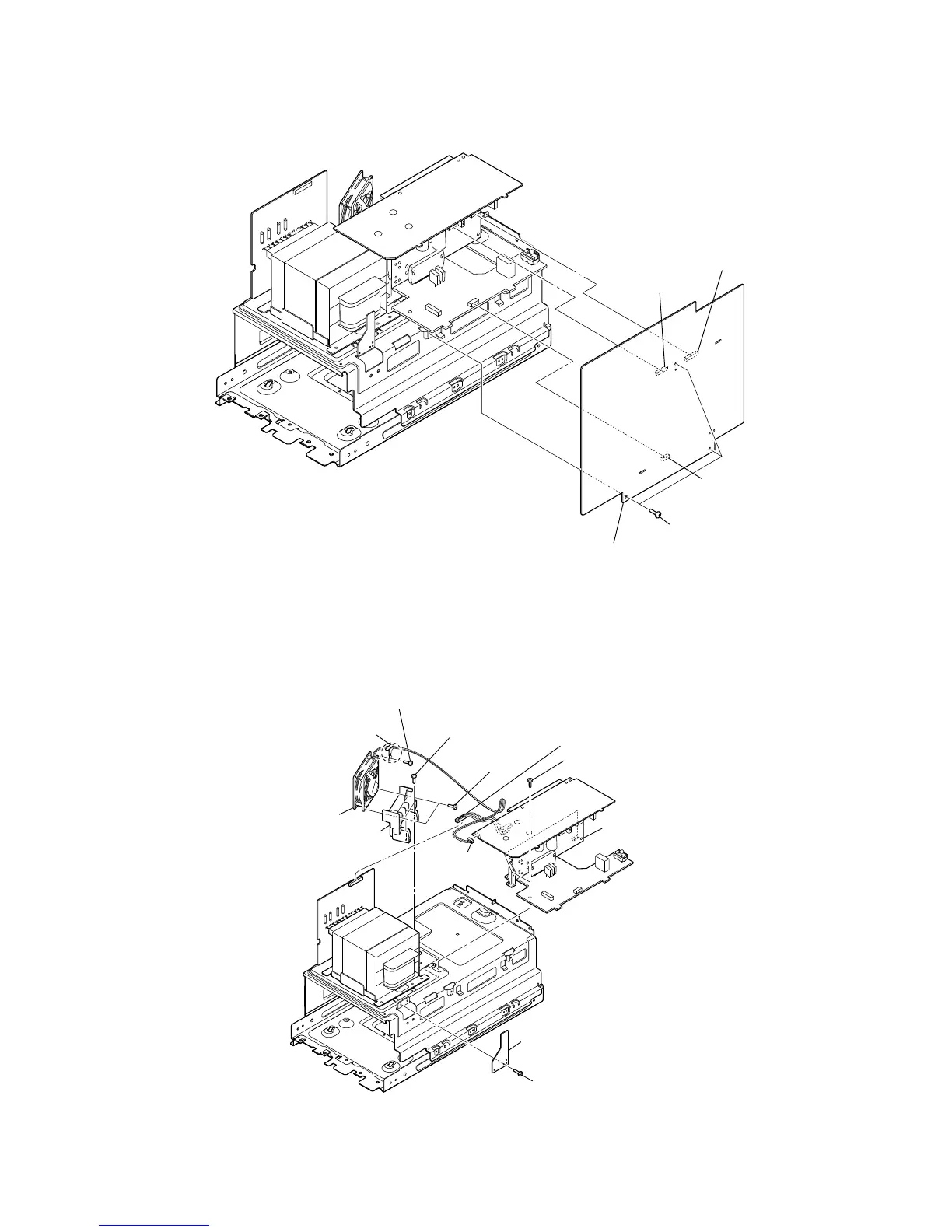

2-8. MAIN BOARD
2-9. DC FAN (M101), PT SHIELD BOARD, POWER AMP BOARD SECTION
4 CN550 (6P)
5 MAIN board
3 CN200 (12P)
1 three screws
(BVTP3
u 8)
2 CN100 (10P)
1 one screw
(BVTP3 u 8)
6 POWER AMP board section
5 CN1302 (3P)
q; DC Fan (M101)
8 DC Fan bracket
2 PT SHIELD board
3 three screws
(BVTP3 u 8)
9 two screws
(BVTP3 u 8)
7 two screws
(BVTP3 u 8)
qa one screw
(BVTP3 u 8)
4 CN1250 (13P)
qs clamp
