Sony HCD-HDX285 - S-AIR INCLUDE Board and Front Panel Disassembly; S-AIR INCLUDE Board Removal Steps; Front Panel Block Disassembly Steps

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W
13

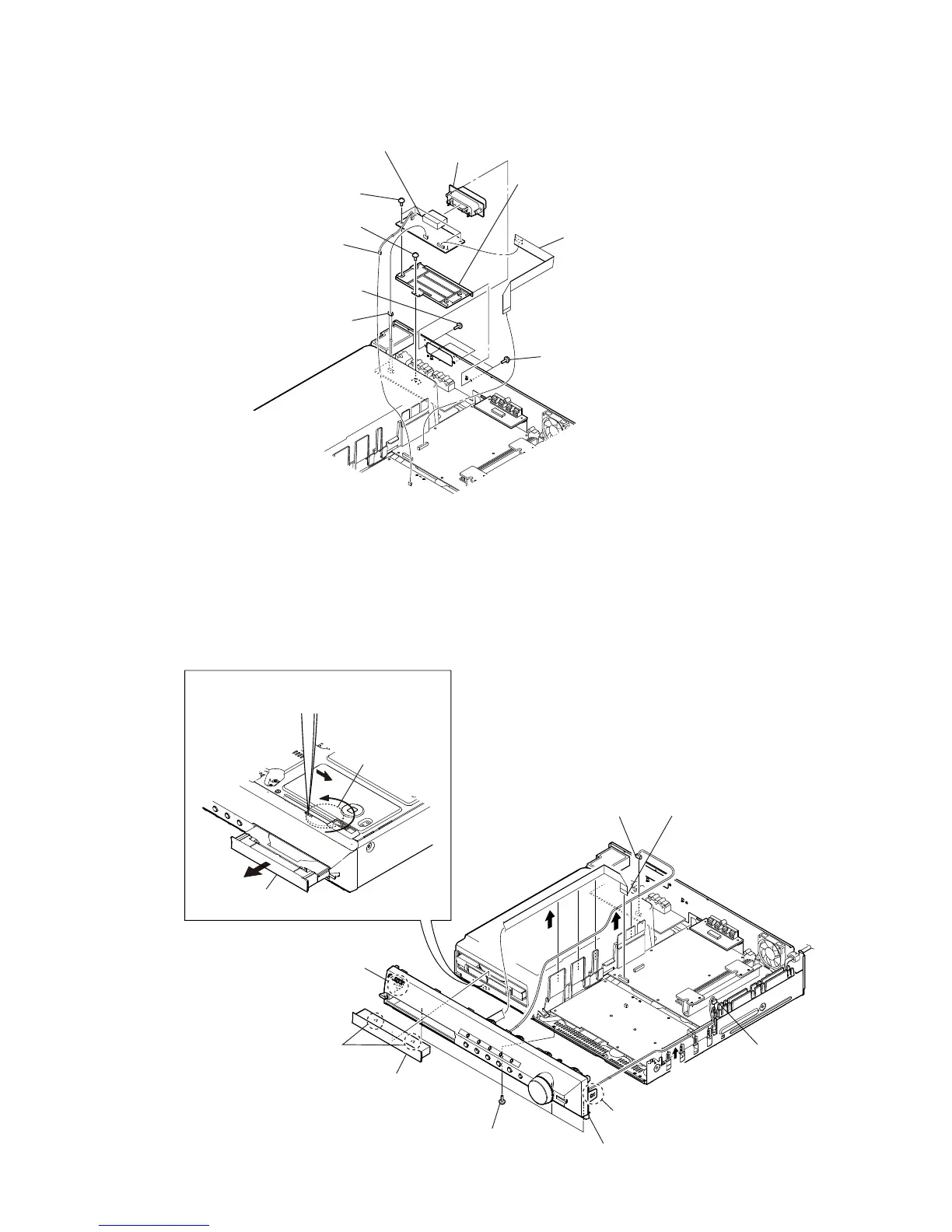

3-4. S-AIR INCLUDE BOARD (HDX287WC/HDX587WC/HDX589W/HDX686W)
3-5. FRONT PANEL BLOCK

two screws
(BV3 (3-CR))

screw
(BV3 (3-CR))

two screws
(BV3 (3-CR))

wire (flat type) (13 core)
(S-AIR INCLUDE board: CN804,
MAIN board: CN306)

connector
(CN908)

bracket
(S-AIR INC board)

card slot
(S-AIR2)

four screws
(BV3 (3-CR))
R
S-AIR INCLUDE board

connector
(CN801)

Turn gear (BU1) from a hole
at the bottom, and pull out a tray.

Open the tray.
gear (BU1)
RT
claw
RT
claw
RE
front panel block
RB
four screws
(BV3 (3-CR))

loading panel (DCY)

wire (flat type) (17 core)
(CN506)

connector
(CN3001)


R

connector
(CN4014)

two claws
– bottom view –
