Sony HCD-HDX285 - Exploded Views Overview; Optical Pick-up Section Exploded View

87
HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

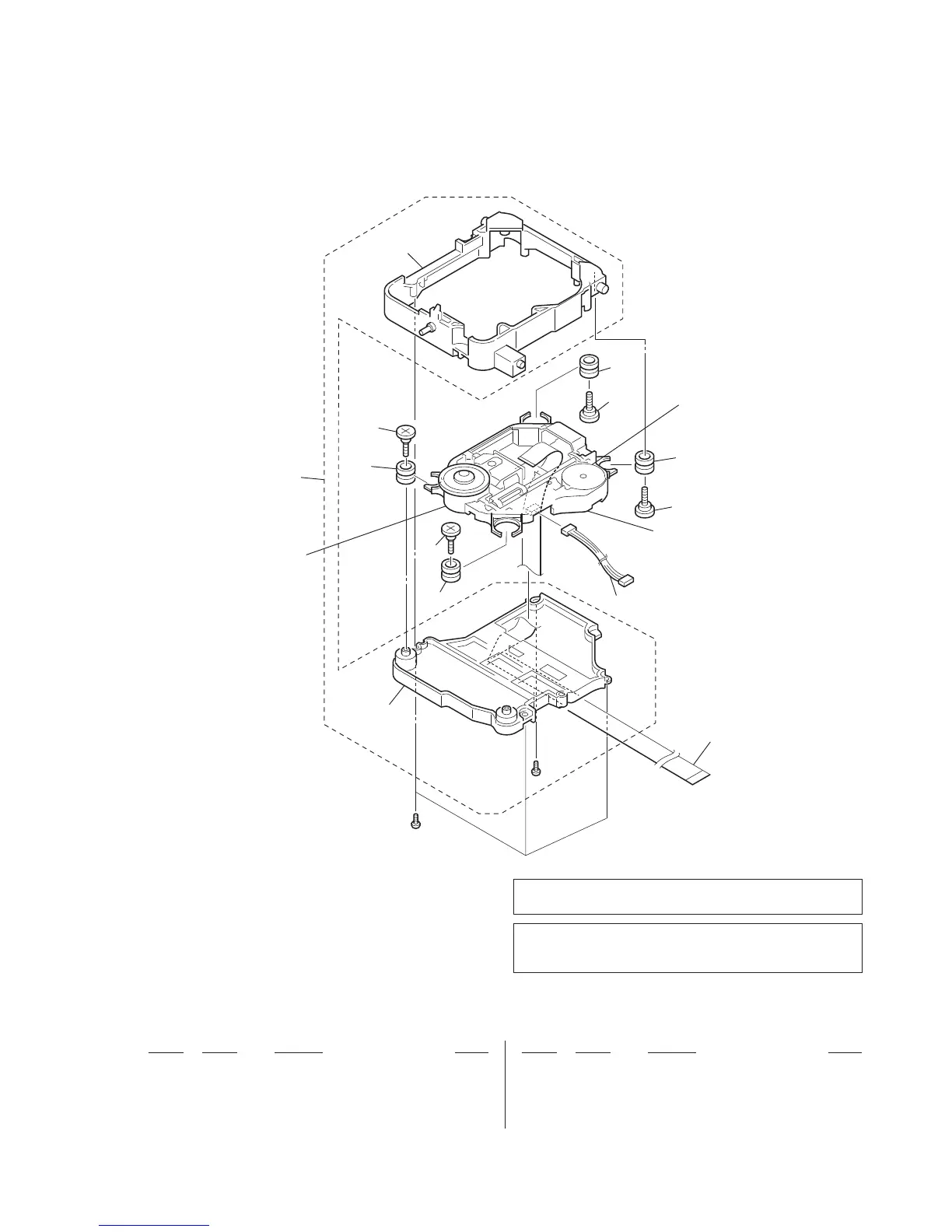

7-8. OPTICAL PICK-UP SECTION
401 X-4956-097-1 HOLDER (310) ASSY
0 402 8-820-291-02 OPTICAL PICK-UP BLOCK (KHM-310CAB/C2RP)
(Including sled motor, spindle motor)
0 402 8-820-322-04 OPTICAL PICK-UP BLOCK (KHM-313CAB/C2RP)
(Including sled motor, spindle motor)
403 2-634-618-01 INSULATOR
404 3-087-599-01 INSULATOR SCREW
406 1-836-385-11 FLEXIBLE FLAT CABLE 24P
#6 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
401
403
403
403
404
404
404
406
404
402
(including spindle motor,
spindle motor)
403
#6
#6
not supplied
not supplied
not supplied
(spindle motor)
not supplied
(sled motor)
not supplied
Note 1: If fl exible fl at cable is replaced, install it after bending it
in the same form as thet before replacement.
Note 2: Refer to the Servicing Notes “HOW TO IDENTIFY OPTI-
CAL PICK-UP BLOCK” (page 7), if replacing the Ref.
No. 402.
