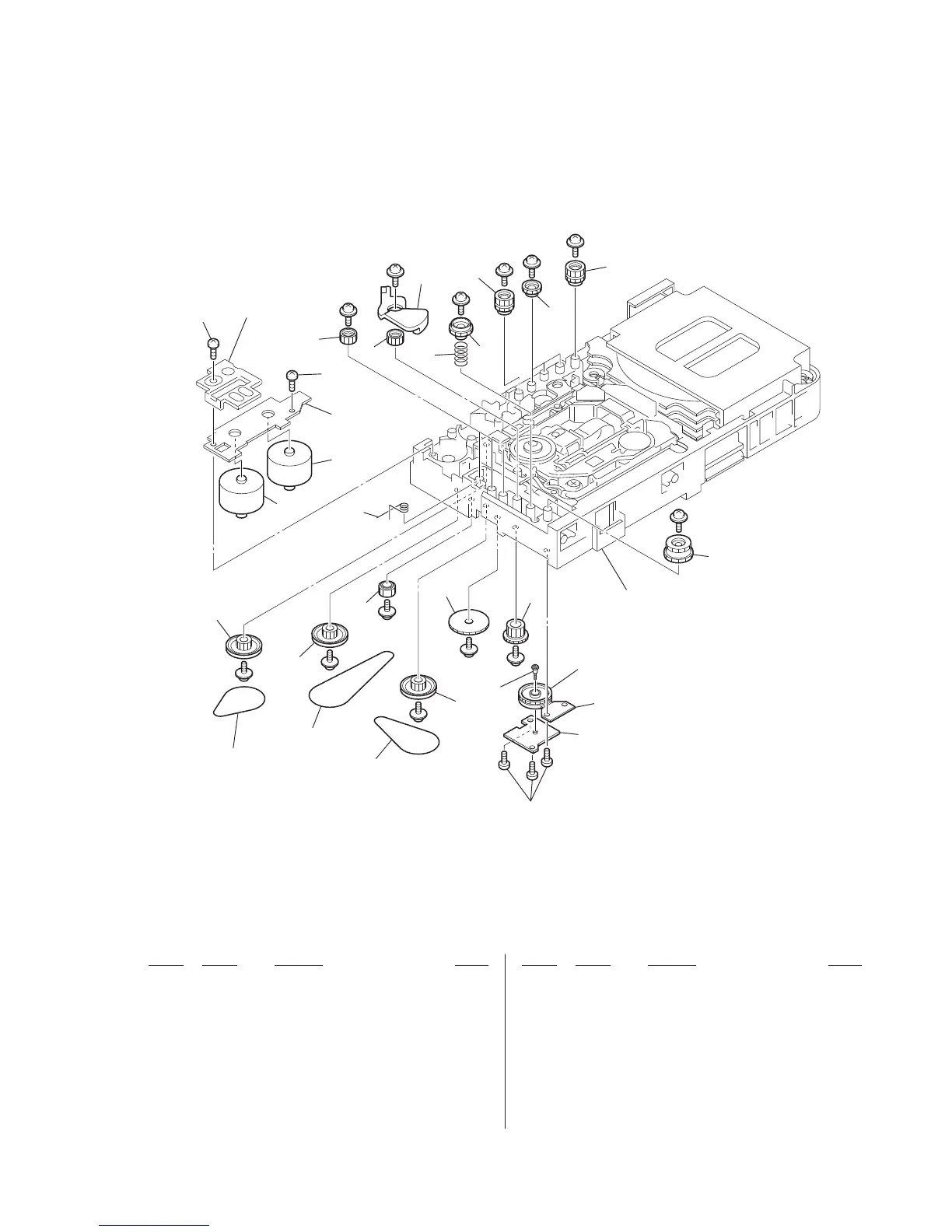

7-6. DVD MECHANISM DECK SECTION-2 (CDM81C-DVBU101)
301 4-251-868-01 BELT (SUB TRAY)
302 4-251-869-01 BELT (MAIN TRAY)
303 4-251-850-01 GEAR (MAIN TRAY 1)
304 4-251-873-01 SPRING (MODE), COMPRESSION
305 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING
306 4-251-872-01 SPRING (LEVER), TORSION
307 4-251-870-01 BELT (BU)
308 4-251-853-01 PULLEY (BU)
309 4-251-834-01 LEVER (MAIN TRAY)
310 4-251-852-01 GEAR (MAIN TRAY 3)
311 4-251-856-01 GEAR (BU2)
312 4-251-841-01 GEAR (SUB TRAY 1)
313 4-251-854-01 GEAR (BU1)
314 4-251-842-02 GEAR (SUB TRAY 2)
315 4-251-851-01 GEAR (MAIN TRAY 2)
316 4-218-253-52 SCREW (M2.6), +BTTP
M761 A-4713-174-A MOTOR (81) ASSY (LOADING)
M762 A-4713-174-A MOTOR (81) ASSY (STOCKER UP/DOWN)
S771 1-478-552-11 ENCODER, ROTARY (MD)
#7 7-685-902-21 TAPPING +PWH 2.6X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
(ENCODER board included in RELAY board)
not supplied
not supplied
(MOTOR board)
301
302
303
303
304
309
314
315
312
314
310
306
316
316
316
307
308
308
308
303
313
311
305
#7
#7
#7
#7
#7
#7
#7
M761
M762
#7
#7
#7
#7
#7
#7
S771
DVD mechanism deck section-3
(CDM81C-DVBU101)
